Siemens HiPath 3000 Service Manual

boards.fm
P31003-H3550-S403-4-7620, 02/05
HiPath 3000 V5.0, HiPath 5000 V5.0, Service Manual
3-149
Boards for HiPath 3000
Peripheral Boards
Base station power supply via two U
P0/E
interfaces
Connect the base station to two free interfaces on SLC16 or SLC16N as shown in Figure 3-65.
Be careful not to exceed the maximum connection cable lengths (1000 m for 2x0.6 mm).
Using two U
P0/E
interfaces increases the traffic capacity in BS2/2 and BS3/3 base stations.

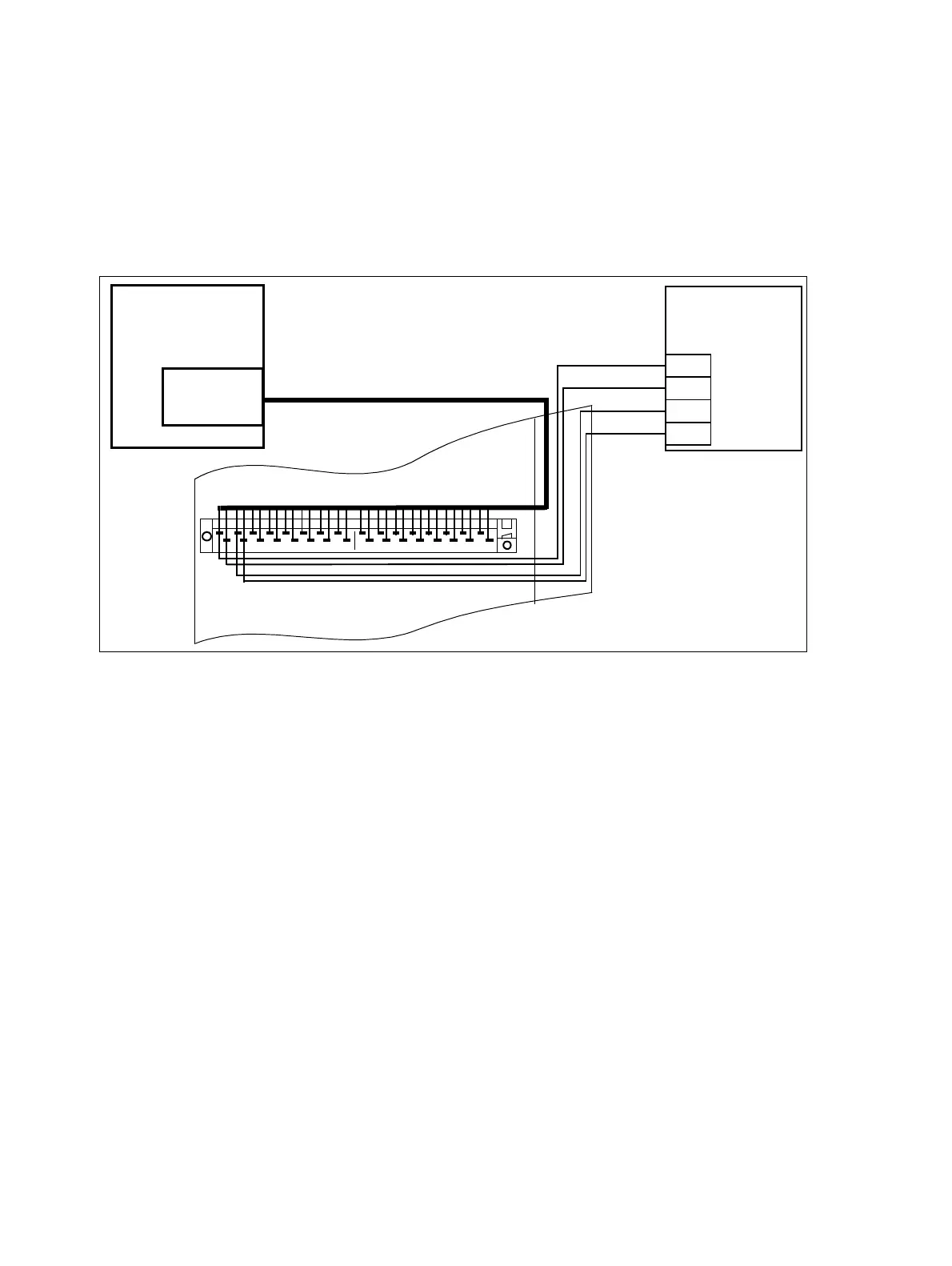

Figure 3-65 Base Station Power Supply via Two U
P0/E
Interfaces (Not for U.S.)
a
b
1
CABLU
MDFU, MDFU-E
2
3
4
5
U
P0/E
1
U
P0/E
2
BS2/2 or BS3/3
for indoors
Splitting
strip
HiPath 3750,
HiPath 3550,
HiPath 3700
SLC16/
SLC16N
