Installing HiPath 3000
P31003-H3550-S403-4-7620, 02/05
4-144 HiPath 3000 V5.0, HiPath 5000 V5.0, Service Manual
inst_h3.fm
Installing HiPath 3750, HiPath 3700
Structure of the Patch Panel S30807-K6143-X
Information on MW8 jack assignment on the front of the patch panel is provided in the board
descriptions (in the “Cable and Connector Assignment” table) in Chapter 3.
Surge protector
To divert surges caused by lightning, insert surge protectors on
● lines that leave the system buildings (outside stations)
● lines > 500 m long.
Connect the polarized surge protectors to slots F1 – F8 provided on the patch panel
(seeFigure 4-81).
>
All incoming cables must be attached to the patch panel using cable ties.

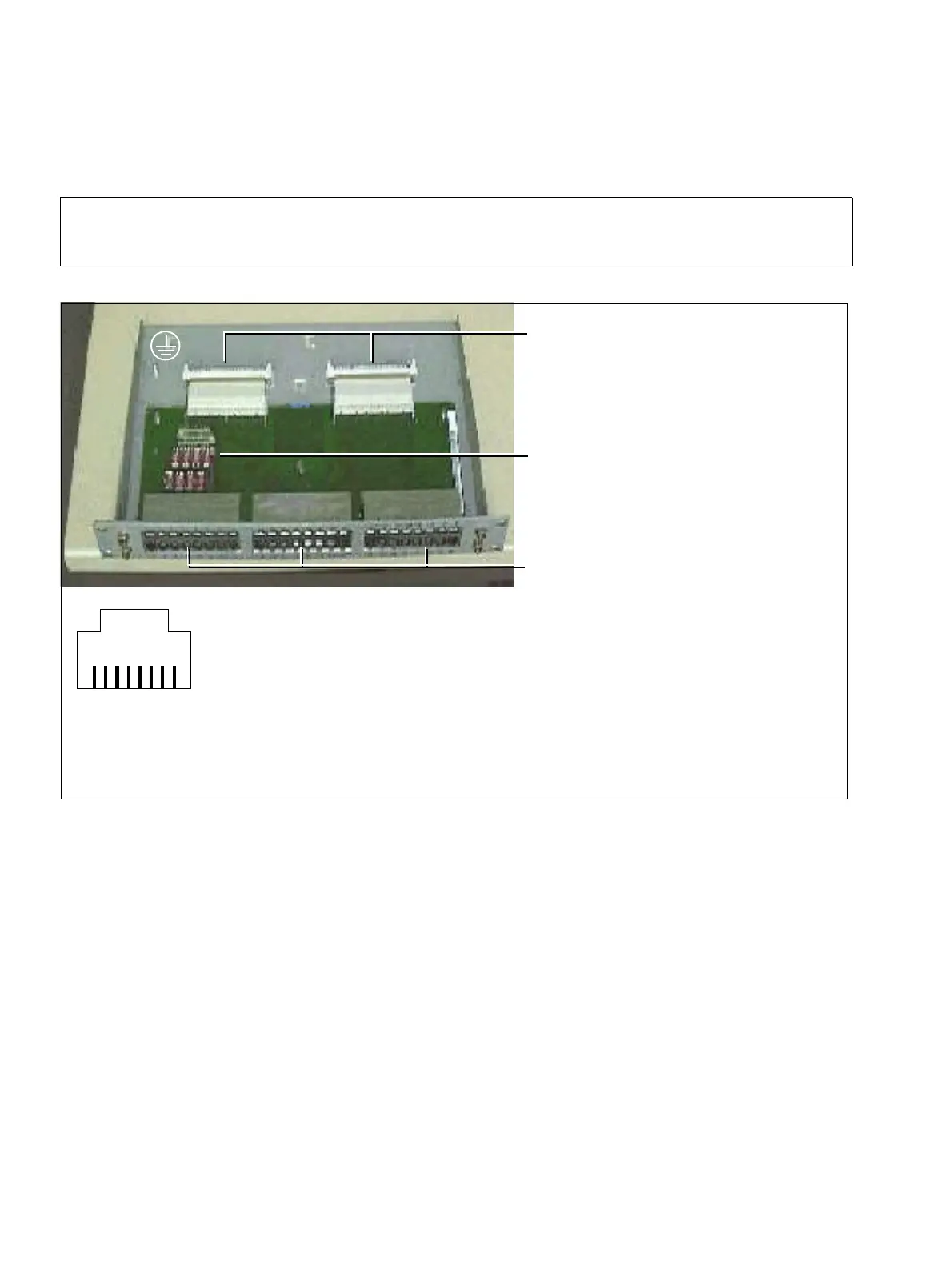

Figure 4-80 Patch Panel S30807-K6143-X
SIVAPAC edge connector: port for
CABLU connection to the backplane
81
MW8 jack assignment:
4 = a-wire
5 = b-wire
Necessary height units for 19-inch cabinet assembly: 1
(one height unit corresponds to approx. 1.7’’=43 mm)
Eight surge protector plug loca-
tions
Front panel with 3 x 16 MW8 jacks
