Boards for HiPath 3000
P31003-H3550-S403-4-7620, 02/05
3-150 HiPath 3000 V5.0, HiPath 5000 V5.0, Service Manual
boards.fm
Peripheral Boards
BS3/3 power supply via three U
P0/E
interfaces
Connect the BS3/3 base station to three free interfaces on the SLC16 or SLC16N as shown in
Figure 3-66. Be careful not to exceed the maximum connection cable lengths (1000 m for
2x0.6 mm).
Using three U
P0/E
interfaces increases the traffic capacity in the BS3/3 base station.
Additional UPSC-D power supply via EPSU2
If the power supplied by the UPSC-D (HiPath 3550) is insufficient, additional power can be sup-
plied by installing the external power supply EPSU2. To do this, connect the DC port on the
EPSU2 to the special DC input on the UPSC-D.
As described on the preceding pages, the base stations must be connected to one (BS3/1) or
two (BS2/2 and BS3/3) or three (BS3/3) free U
P0/E
interfaces on SLC16 or SLC16N.
If you need an additional external power supply for the 19-inch housing in HiPath 3500 or Hi-
Path 3300, you should use the EPSU2-R power supply. This is installed in the ECR expansion
cabinet rack (see Section 9.2.4).
Section 11.5, “Power-Related Capacity Limits” shows which telephone configurations manage
without an additional power supply and which configurations require an additional one.

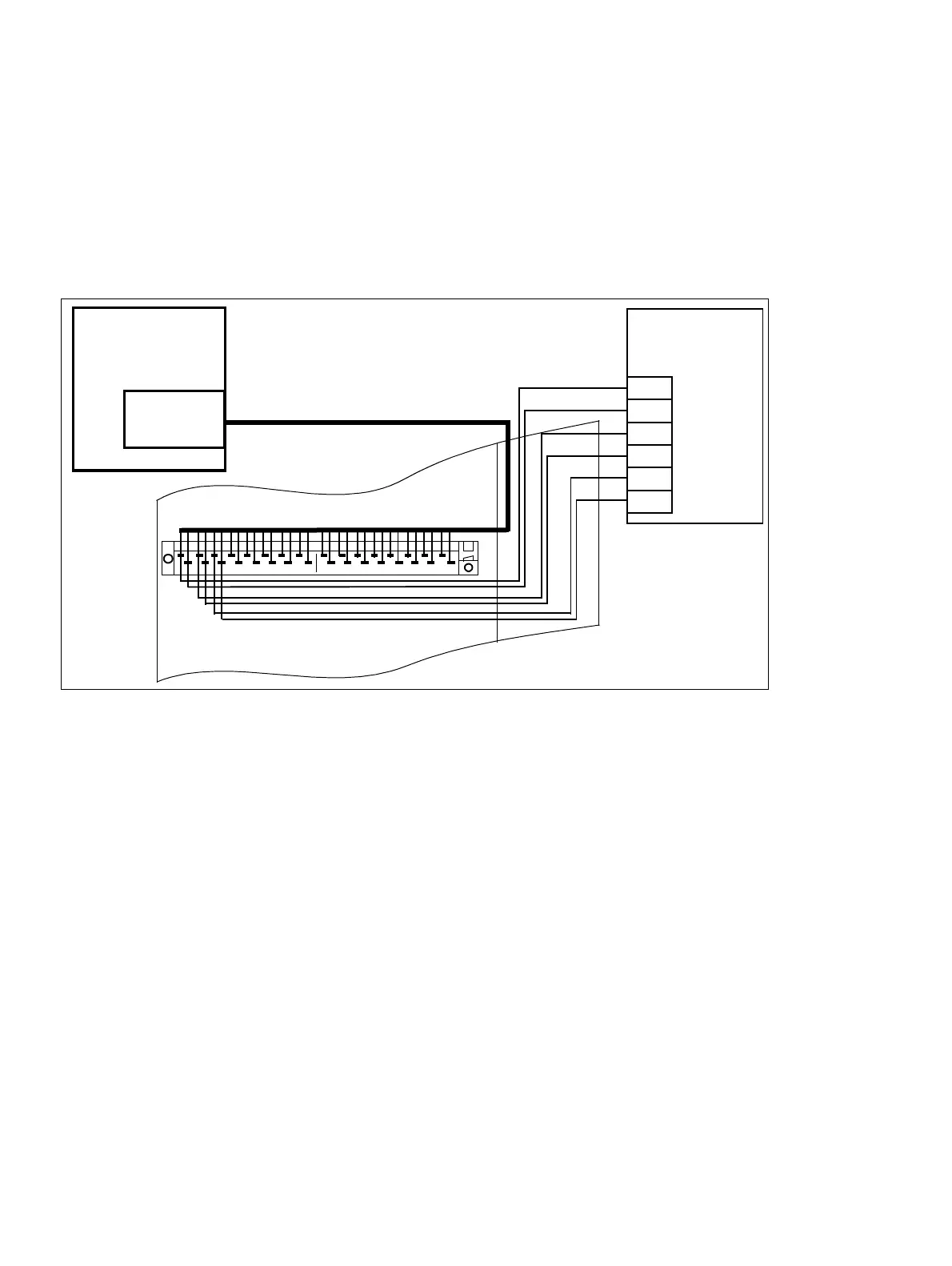

Figure 3-66 BS3/3 Power Supply via Three U
P0/E
Interfaces (Not for U.S.)
a
b
1
CABLU
MDFU, MDFU-E
2
3
4
5
U
P0/E
1
U
P0/E
2
U
P0/E
3
BS3/3 for in-
doors
Splitting
strip
7
6
HiPath 3750,
HiPath 3550,
HiPath 3700
SLC16/
SLC16N
