HiPath Cordless Office
Technical Data for Base Stations
Outdoor cover
A base station must be installed in a weatherproof outdoor cover to guarantee radio coverage
outdoors, for example on factory premises. The outdoor cover is suitable for mounting on walls
of buildings, roofs, and masts.
The outdoor cover S30122-X7469-X already available for BS2/2 is also used for the new base
stations BS3/1 (BS3/S), BS3/3 and BS4. The only difference is that you do not need a heater
for BS3/1 (BS3/S), BS3/3 and BS4.
For information on the various outdoor cover mounting options, refer to the HiPath Cordless Of-
fice Service Manual.

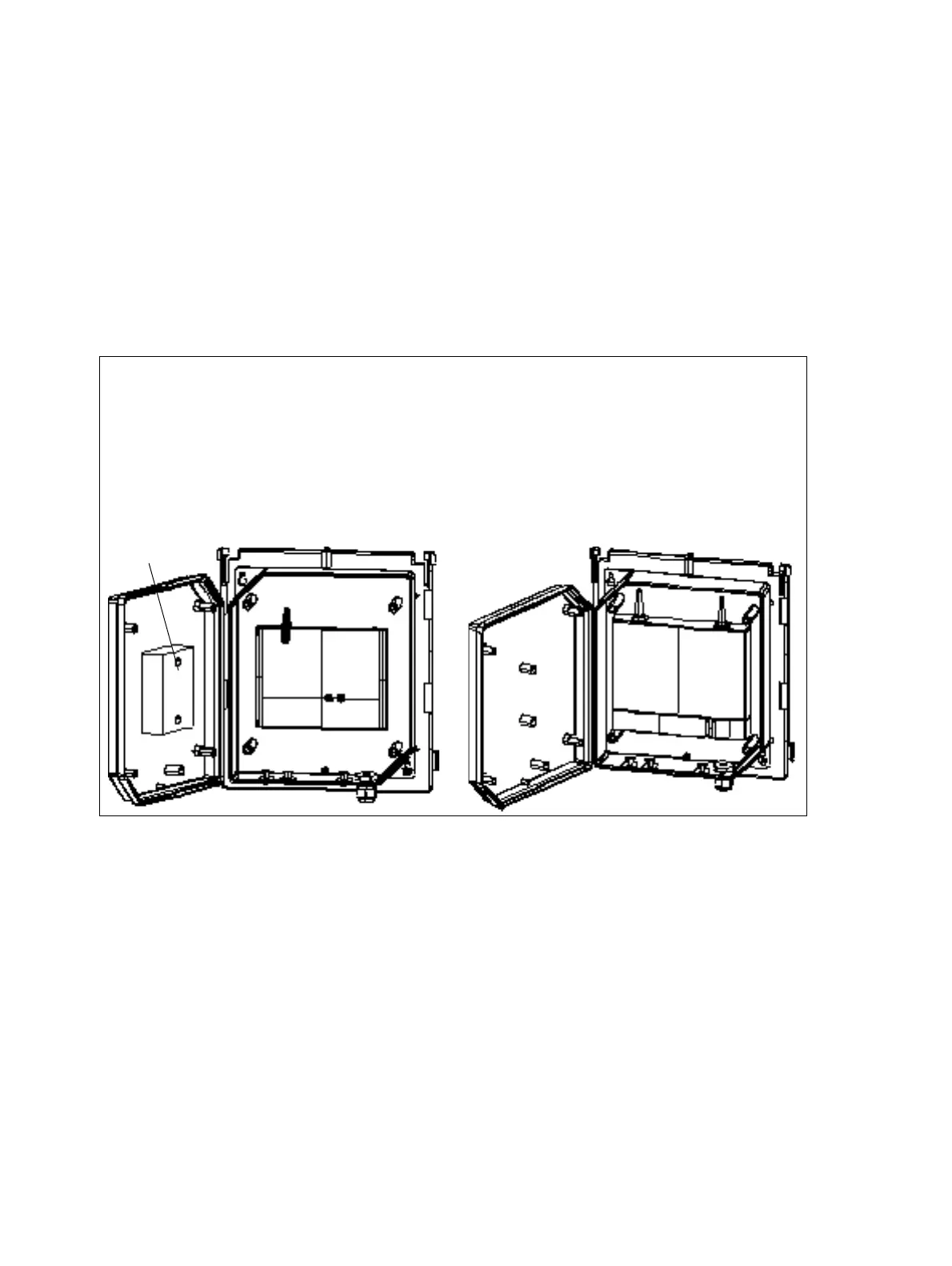

Figure 11-2 BS3/1 (BS3/S) and BS3/3 in the Outdoor Cover S30122-X7469-X
Outdoor cover
with BS3/1 (BS3/S)
The Styrofoam block [1] supplied
should be used to affix the BS3/1
(BS3/S).
Outdoor cover
with BS3/3
[1]
