inst_h3.fm
P31003-H3550-S403-4-7620, 02/05
HiPath 3000 V5.0, HiPath 5000 V5.0, Service Manual
4-35
Installing HiPath 3000
Installing HiPath 3800
Installing shielding covers
In order to guarantee adequate shielding, a shielding cover (C39165-A7075-B15) must be in-
stalled for boards with no connection options in the front panel. To do this, insert the two bottom
pins on the shielding cover into the openings provided for this purpose on the slide-in shelf.
Then push the shielding cover in the direction of the board until it locks into position (refer to
Figure 4-17).
Empty board slots must also be covered with shielding covers.

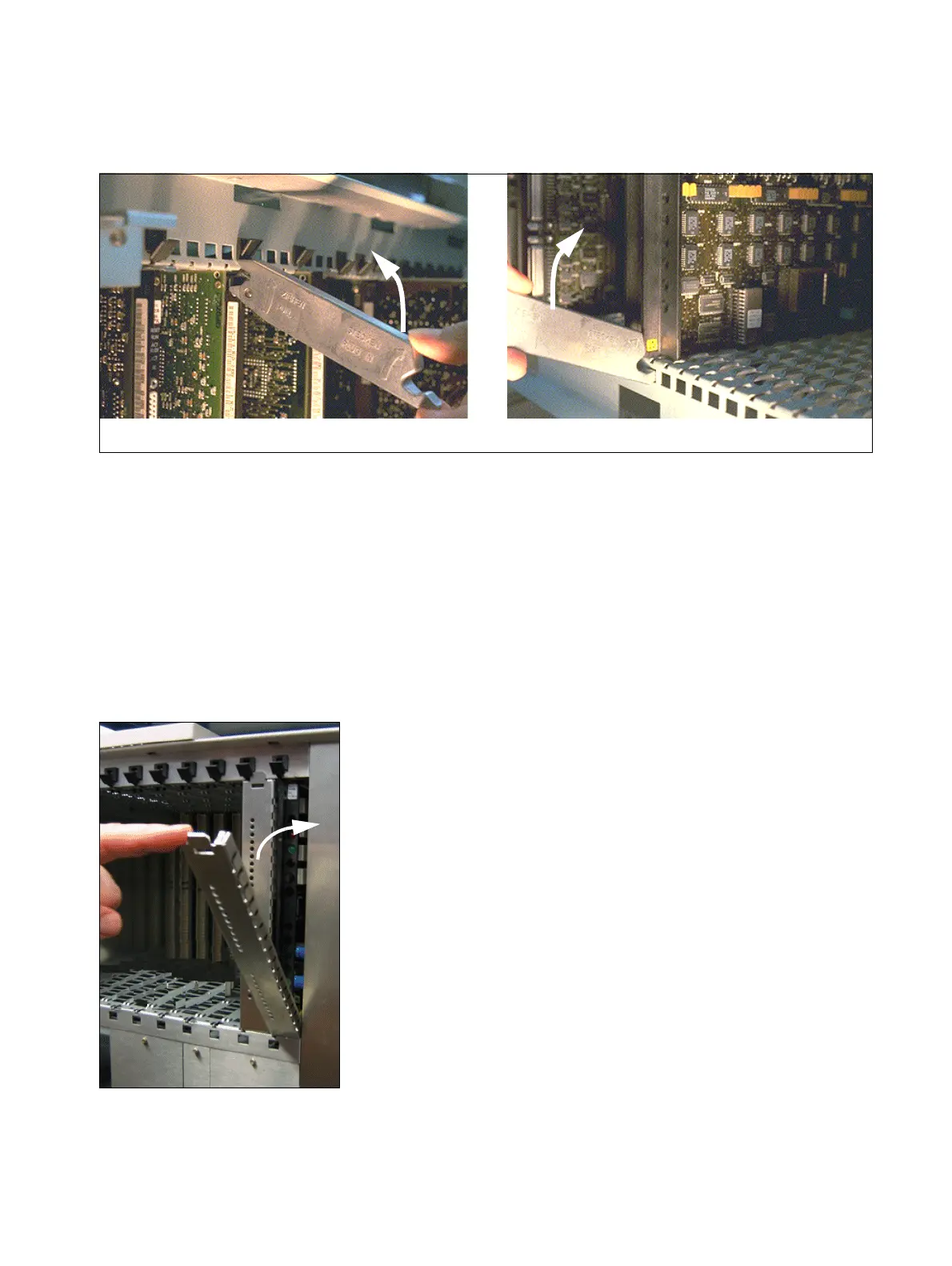

Figure 4-16 HiPath 3800 - Removing/Inserting the Board Using the Board Wrench
Figure 4-17 Installing the Board Shielding Cover
Removing a board Inserting a board
