sysdat.fm
P31003-H3550-S403-4-7620, 02/05
HiPath 3000 V5.0, HiPath 5000 V5.0, Service Manual
2-7
System Data
HiPath 3000
2.2.2.3 Design and Dimensions of HiPath 3550
Design
The housing intended for wall mounting (Figure 2-3) HiPath 3550 contains one shelf with six
slot levels. The slot levels (shown in Figure 4-103), numbered in ascending order from the at-
tachment side, have the following assignments:
● Slot levels 1-3: peripheral boards (two slots per level).
● Slot level 4: CBCC control board only
● Slot level 5: SIPAC slot (for HiPath 3750 boards).
● Slot level 6: Optional boards (up to 5 modules)
The power supply is on the rear panel of the subrack.
The connection cables to the peripherals (telephones, trunk connections etc.) can be connect-
ed directly. Use an external MDFU in certain situations (CMI).
Dimensions

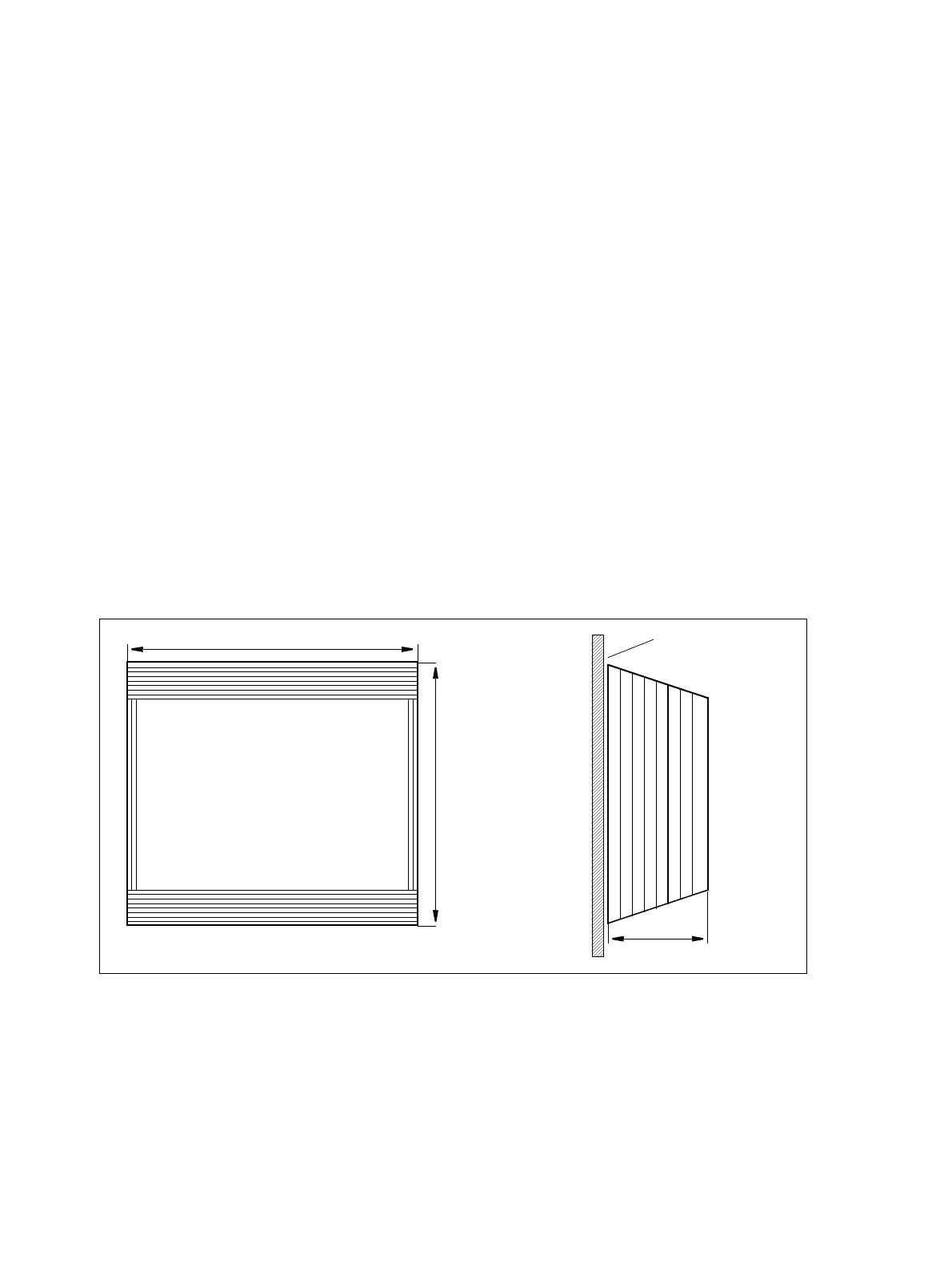

Figure 2-3 HiPath 3550 Dimensions
460 mm
Mounting sur-
face
450 mm
200 mm
