Peripheral Boards
Notes on DSP diagnosis
You can use the trace function built into the TMAMF module to diagnose malfunctions or obtain
more precise error analysis. The subminiature D connector provides information about MFC-
R2 signaling. To activate the trace function, you must connect a PC with a terminal emulation
program (such as Microsoft HyperTerminal).
Terminal configuration:
● Bits per second = 19,200
● Data bits = 8
● Stop bit = 1
● Parity = none
● Flow control = none
Pin assignments of the diagnostic cable

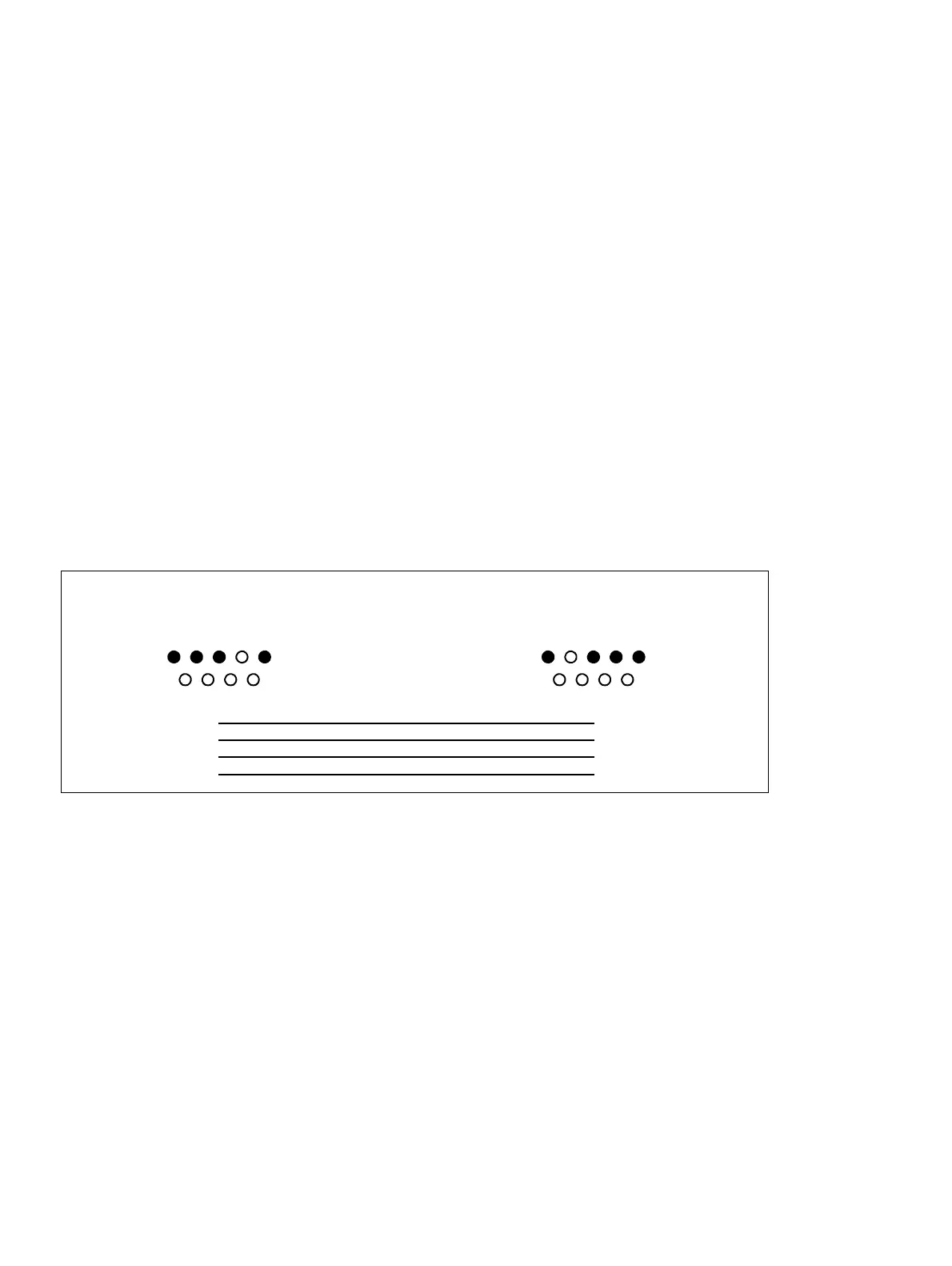

Figure 3-106 Pin Assignments of the TMAMF Diagnostic Cable
PC: RS-232 interface
1
TMAMF: Subminiature D connector
2 3 4 5
6 7 8 9
12345
6789
1
2
3
5
1
3
2
5
