Siemens HiPath 3000 Service Manual

Installing HiPath 3000
P31003-H3550-S403-4-7620, 02/05
4-132 HiPath 3000 V5.0, HiPath 5000 V5.0, Service Manual
inst_h3.fm
Installing HiPath 3750, HiPath 3700
Installation in the 19-inch cabinet
Laying the Connecting Cables
To lay the connection cables between system cabinets and patch panels, you can cut out the
pre-stamped recesses in the bottom of system cabinet with a pair of diagonal cutting pliers and
break them out with a pair of flat-nosed pliers.

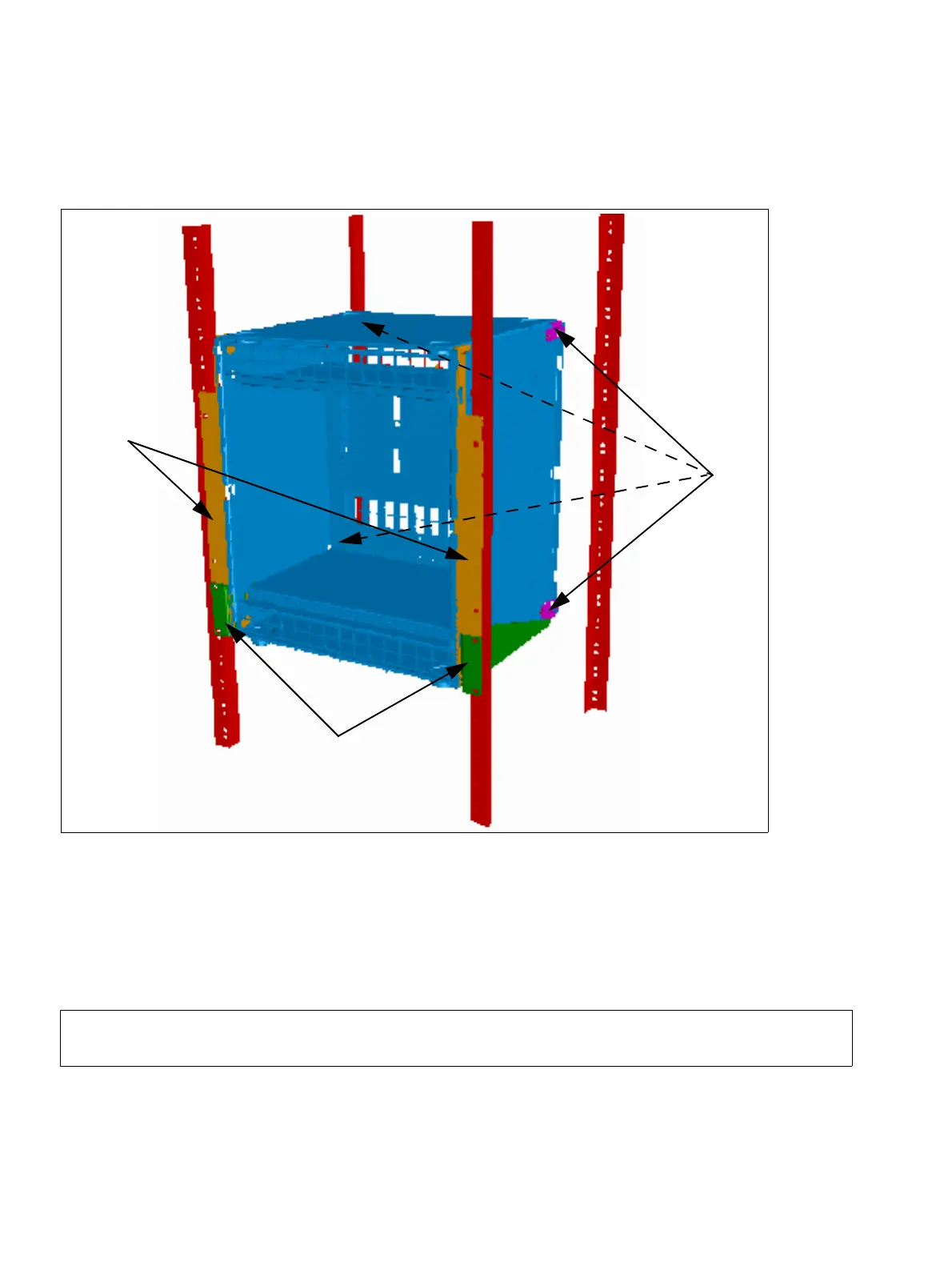

Figure 4-73 HiPath 3700 - Installation in the 19-Inch Cabinet
7
Caution
Be careful when breaking out the recesses. Remove any sharp edges and corners.
A
B
C
