Siemens HiPath 3000 - Figure 4-56 Hipath 3750 - Installing a Three-Cabinet System (Stacked)

inst_h3.fm
P31003-H3550-S403-4-7620, 02/05
HiPath 3000 V5.0, HiPath 5000 V5.0, Service Manual
4-103
Installing HiPath 3000
Installing HiPath 3750, HiPath 3700
Installing a three-cabinet system
Laying the Connecting Cables
● To lay the cables between the BC and EC2, remove the lower grills in the two rear covers.
● To lay the connection cables between stacked cabinets, you can cut out the pre-stamped
recesses in the bottom of EC1 and the top of the BC with a pair of diagonal cutting pliers
and break them out with a pair of flat-nosed pliers.

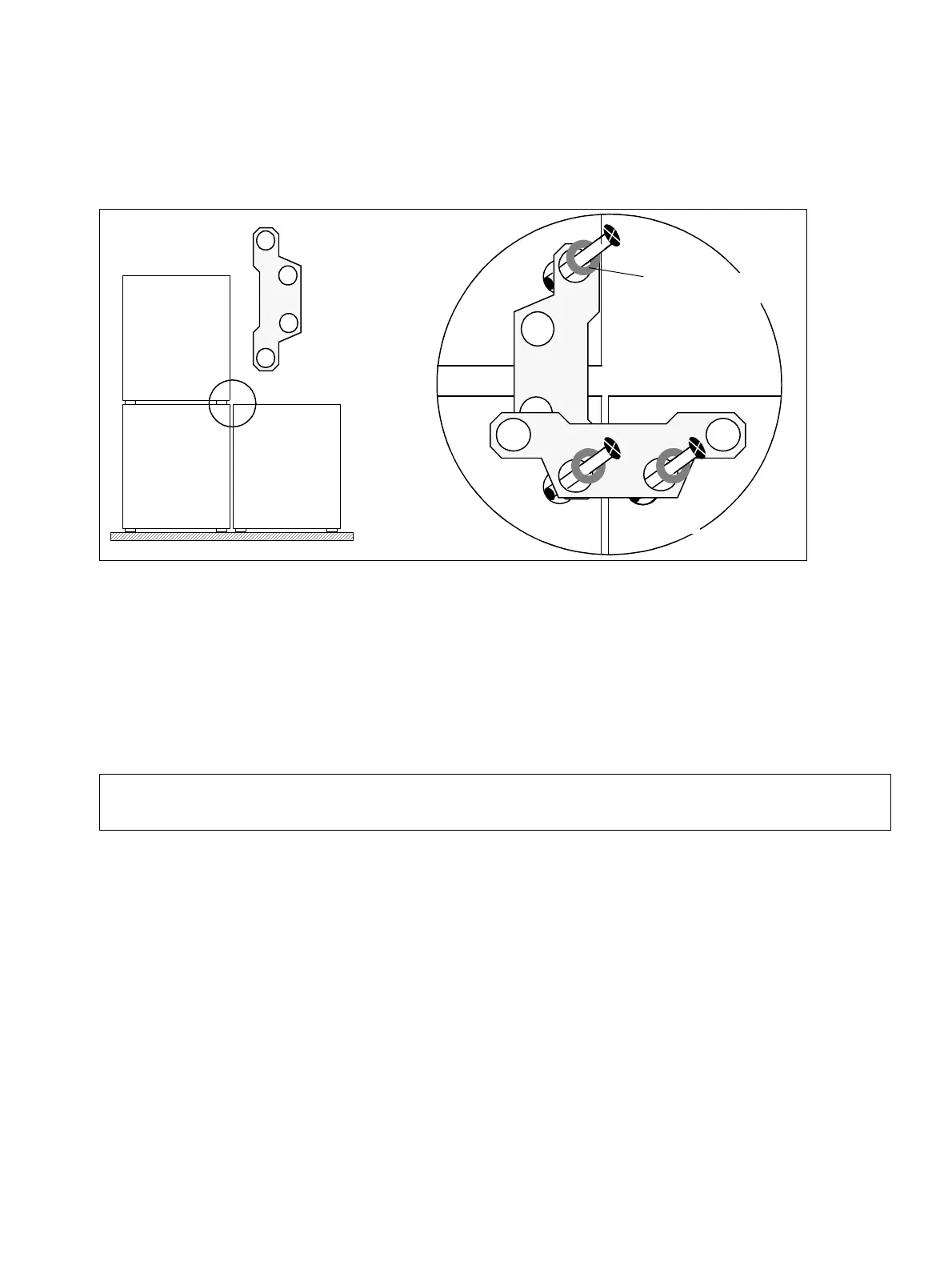

Figure 4-56 HiPath 3750 - Installing a Three-Cabinet System (Stacked)
7
Caution
Be careful when breaking out the recesses. Remove any sharp edges and corners.
BC
EC1
Inside
the cabinet
Washers
EC2
BC
EC1
EC2
