Base station power supply via one U
P0/E
interface
Connect the base station to a free interface on SLC16 or SLC16N as shown in Figure 3-64. Be
careful not to exceed the maximum connection cable lengths (1000 m for 2x0.6 mm).

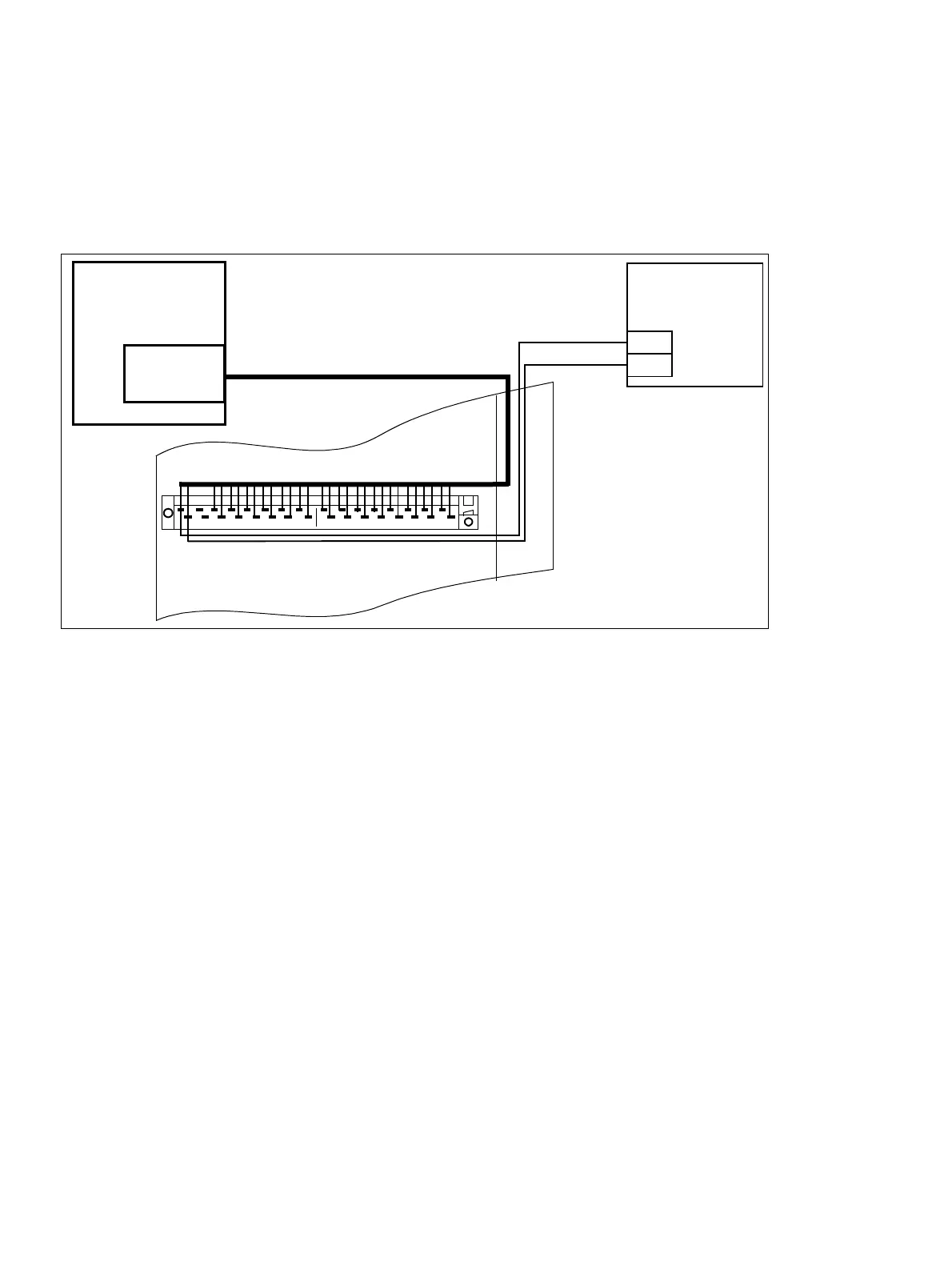

Figure 3-64 Base Station Power Supply via One U
P0/E
Interface (Not for U.S.)
a
b
1
CABLU
MDFU, MDFU-E
1
2
U
P0/E
BS3/1 for in-
doors
Splitting
strip
HiPath 3750,
HiPath 3550,
HiPath 3700
SLC16/
SLC16N
