Siemens HiPath 3000 Service Manual

Boards for HiPath 3000
P31003-H3550-S403-4-7620, 02/05
3-290 HiPath 3000 V5.0, HiPath 5000 V5.0, Service Manual
boards.fm
Peripheral Boards
3.3.37 TML8W (Not for U.S.)
Introduction
A TML8W (Trunk Module Loop Start World) board connects up to eight analog trunks for Hi-
Path 3750 and HiPath 3700 using the loop-start protocol.
The jumpers on the TML8W must be adjusted for call detail recording with a GEE8 subboard.

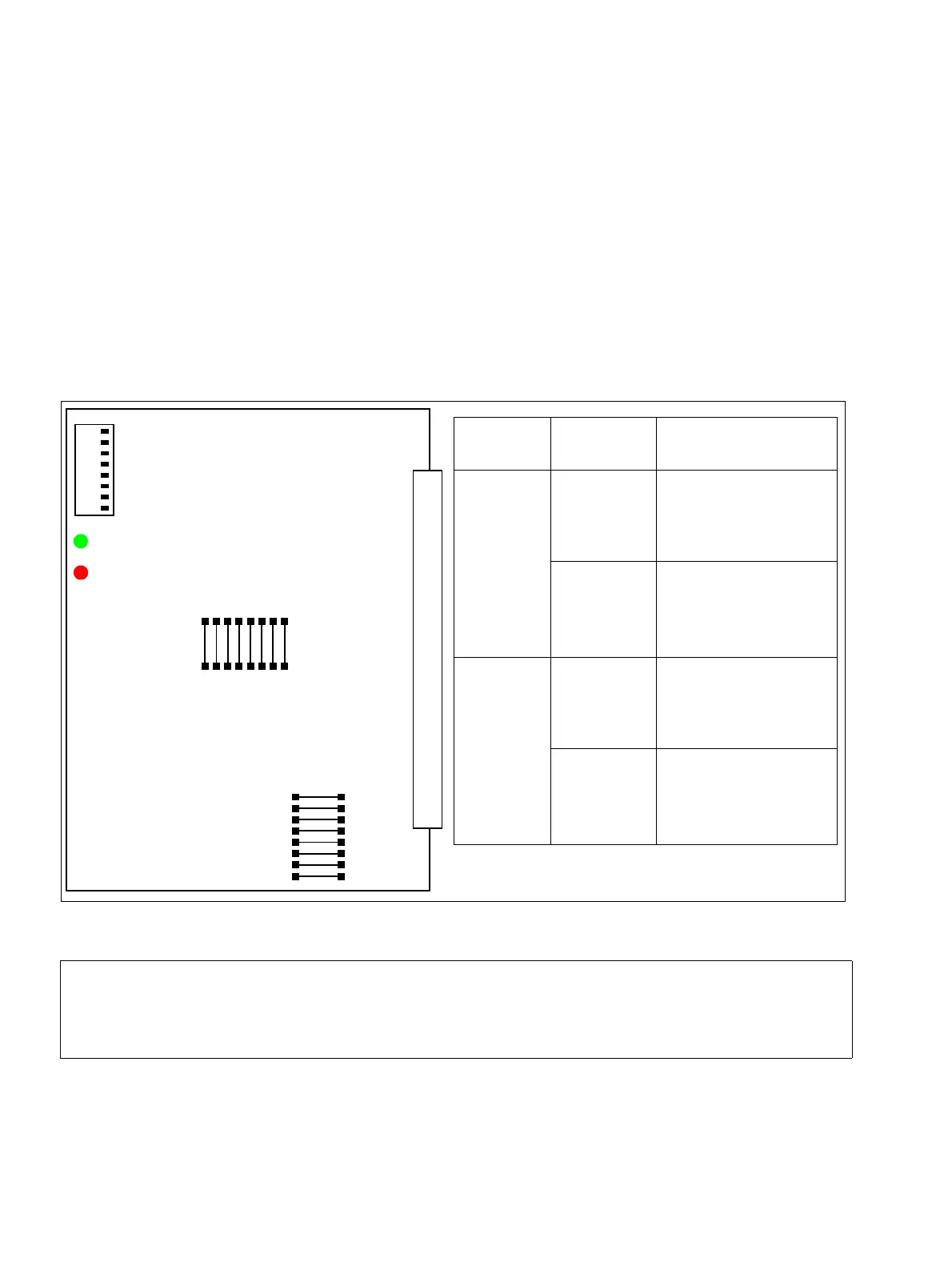

Jumpers on TML8W
Figure 3-117 TML8W (Not for U.S.) (S30817-Q626-Axxx, -Bxxx)
>
For Austria only: If a ÜFS trunk is connected to the TML8W, remove the jumpers
(W300 to W650) to activate silent reversal.
If silent reversal is inactive, users in the HiPath 3750 and HiPath 3700 would hear a
busy signal following backward release instead of being released.
W650 W600 : W300
H100 (green)
H101 (red)
Lockout switch S100
(factory default)
On
1
:
:
8
LEDs
Jumpers
W703
W709
W803
W809
W700
W706
W806
W800
Jumpers
(only avail-
able on
specific
board
variants)
:
Jumpers
(Circuit)
Inserted Call Detail Record-
ing (GEE8)
W700 (1)
W703 (2)
W706 (3)
W709 (4)
W800 (5)
W803 (6)
W806 (7)
W809 (8)
Yes 16 kHz/50 Hz
No 12 kHz
W650 (8)
W600 (7)
W550 (6)
W500 (5)
W450 (4)
W400 (3)
W350 (2)
W300 (1)
Ye s
Without
silent reversal
No
with
silent reversal
Factory default = All jumpers inserted
