Installing HiPath 3000
P31003-H3550-S403-4-7620, 02/05
4-116 HiPath 3000 V5.0, HiPath 5000 V5.0, Service Manual
inst_h3.fm
Installing HiPath 3750, HiPath 3700
Three-Cabinet “8-Slot” System: Connection Cable (See Table 4-12)
The cables between the basic cabinet and the expansion cabinets are connected in a star con-
figuration.
Terminating resistors in “8-slot” cabinets
● BC: Between slots CBCPR + 2 and 3 + 4 and 8 + UPSM
● EC1: Between slots 11 + 12 and 13 + 14 and 15 + 16 and 17 + UPSM
● EC2: Between slots 20 + 21 and 22 + 23 and 24 + 25 and 26 + UPSM

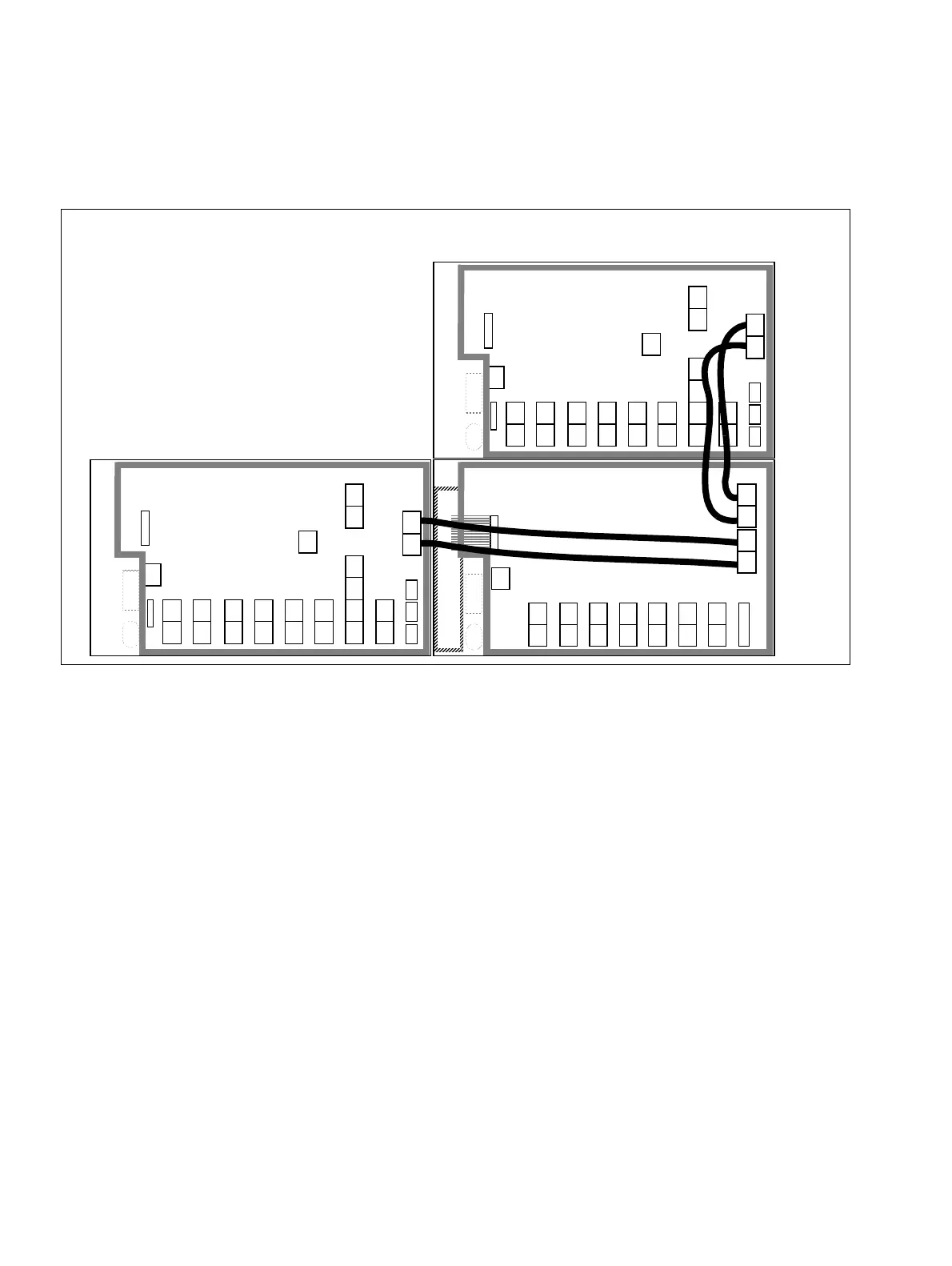

Figure 4-66 Three-Cabinet “8-Slot” System - Connection Cables between BC, EC1 and
EC2
X13
Cabinet part numbers
● BC = S30777-U757-X
● EC1, EC2 = S30777-U708-X100
Backplane part numbers
● BC = S30777-Q757-X
● EC1, EC2 = S30777-Q708-X100
Connection cable part numbers
● Connect BC to EC1, BC to EC2 =
S30267-Z178-A13
EC1
BC
X11
X12
X13
X14
EC2
X13
X14
X14
