HiPath 3000 V5.0, HiPath 5000 V5.0, Service Manual
4-125
Installing HiPath 3000
Installing HiPath 3750, HiPath 3700
Layout and dimensions of the MDFU-E

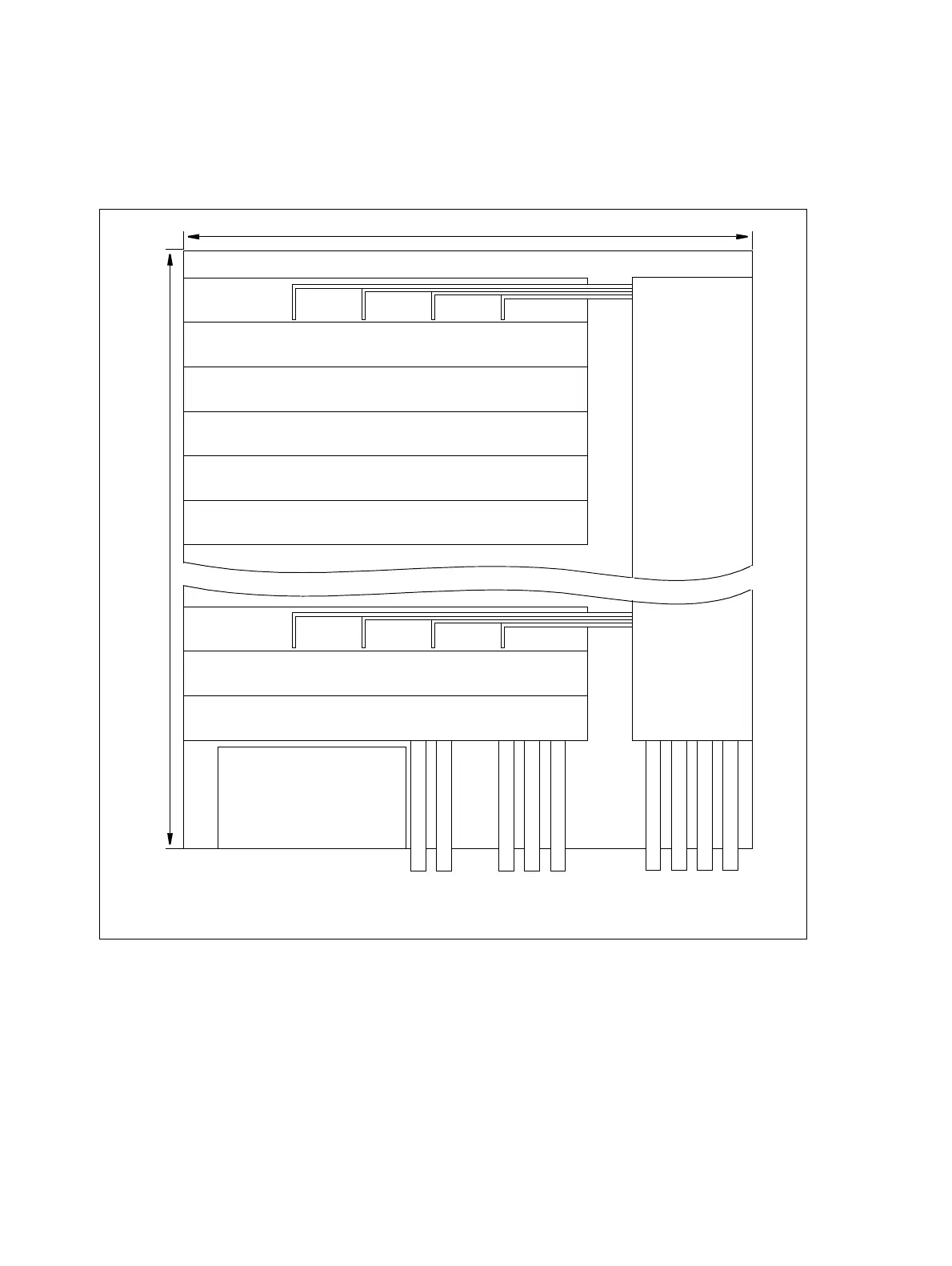

Figure 4-71 MDFU-E - Layout and Dimensions (669.0 x 328.8 x 125.4 mm) (not for U.S.)
System side Line network
1
2
3
6
4
5
Jumpering
Channel
The MDFU-E is delivered with most systems.
19
20
21
21 slots (9 x 30 mm)
328.8
669.0
Special built-in
comps.
2 x PFT1
or
