Siemens HiPath 3000 Service Manual

boards.fm
P31003-H3550-S403-4-7620, 02/05
HiPath 3000 V5.0, HiPath 5000 V5.0, Service Manual
3-183
Boards for HiPath 3000
Peripheral Boards
3.3.15 SLMO8 (Not for U.S.), SLMO24
Introduction
The SLMO8 and SLMO24 (Subscriber Line Module Cost Optimized U
P0/E
) boards provide 8
and 24 connections for connecting optiset E and optiPoint 500 telephones to HiPath 3750, Hi-
Path 3550 and HiPath 3700.
Switches and LEDs

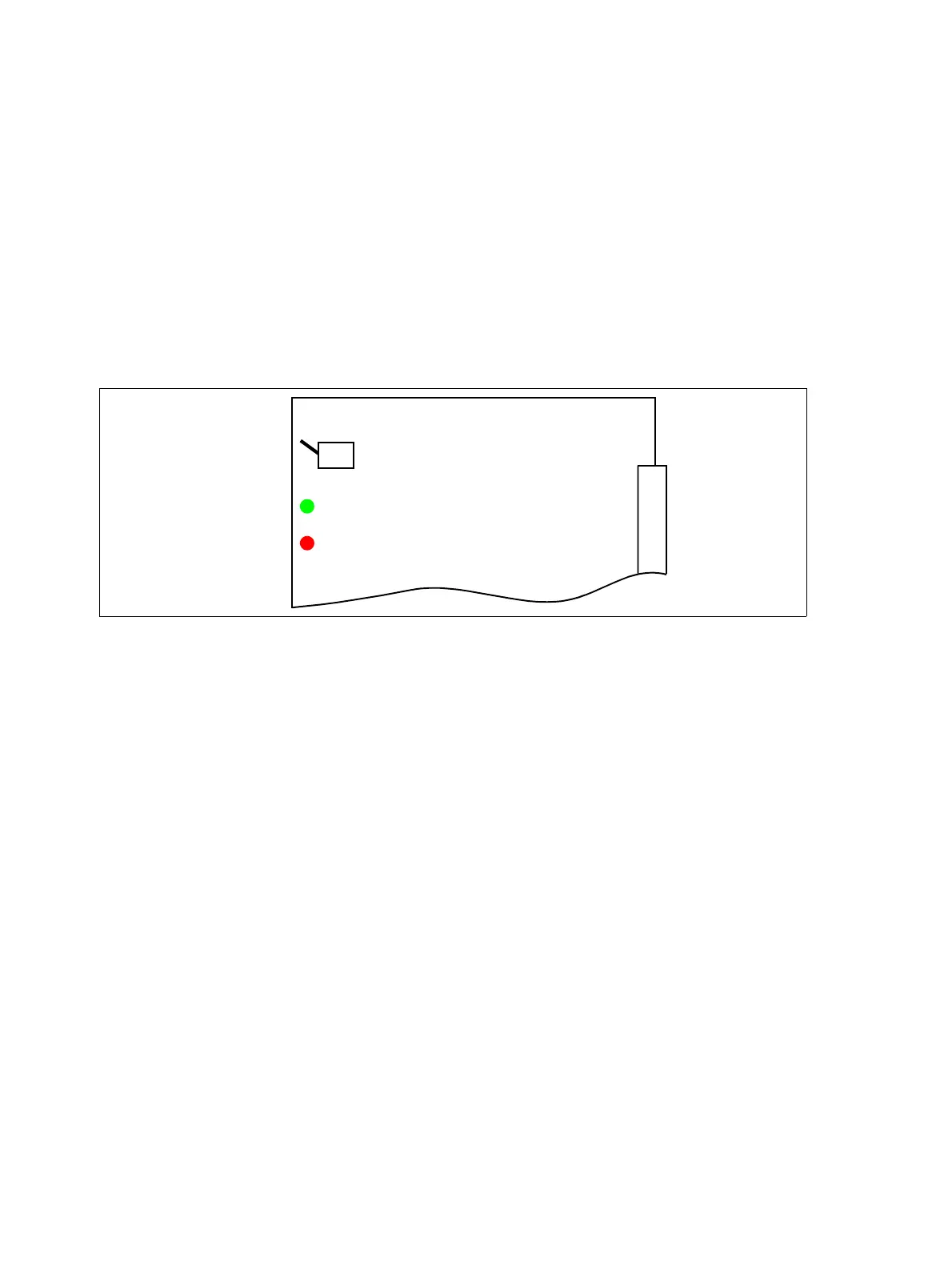

Figure 3-72 SLMO8 (Not for U.S.), SLMO24 (S30810-Q2901-X100, S30810-Q2901-X)
H1 (green)
H2 (red)
LEDs
Lockout switch S1
(position = free,
factory default)
