Siemens HiPath 3000 Service Manual

Boards for HiPath 3000
P31003-H3550-S403-4-7620, 02/05
3-288 HiPath 3000 V5.0, HiPath 5000 V5.0, Service Manual
boards.fm
Peripheral Boards
3.3.36 TMGL8 (for U.S. only)
Introduction
The TMGL8 trunk module connects up to eight analog ground-start or loop-start trunks to Hi-
Path 3750 and HiPath 3700.
Ground start is the default.
Switches and LEDs
Switches
The TMGL8 board has an eight-path microswitch under a flip-up cover. The following settings
apply for each channel:
● ON (right): Channel is enabled.
● OFF (left): Channel is disabled; no new seizures are permitted.

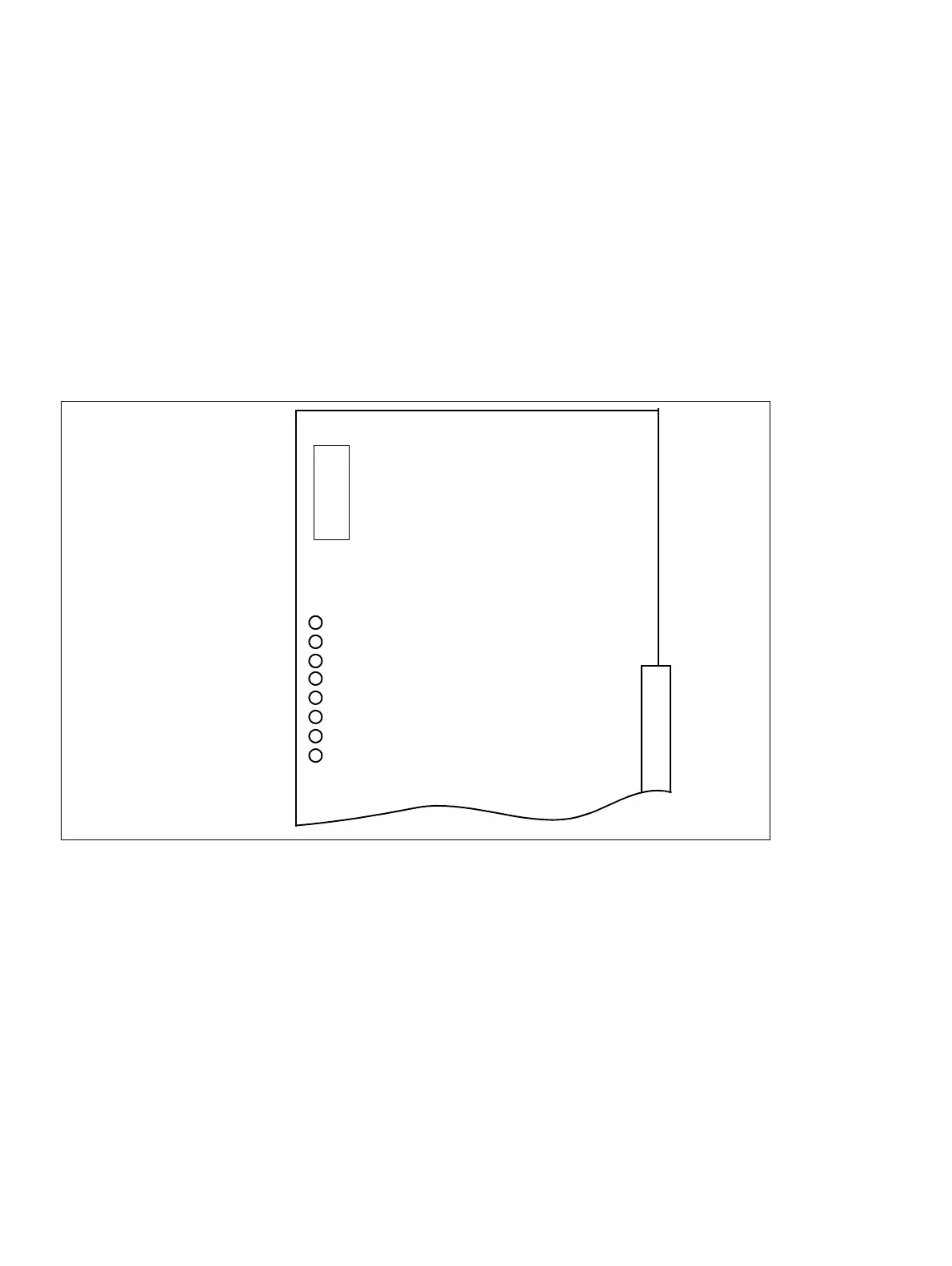

Figure 3-116 TMGL8 (for U.S. only) (S30810-K2703-Z)
H1
.
.
.
.
H8
LEDs
Switches
1
8
On
