Siemens HiPath 3000 Service Manual

inst_h3.fm
P31003-H3550-S403-4-7620, 02/05
HiPath 3000 V5.0, HiPath 5000 V5.0, Service Manual
4-9
Installing HiPath 3000
Installing HiPath 3800
4.2.3.3.2 Setting Up a Single Cabinet
Procedure
Basic cabinet setup
7
Caution
To guarantee sufficient ventilation for the system cabinet, allow a minimum clear-
ance of 50 mm between the base of the cabinet and the ground.
Step Activity
1. Place the system cabinet in the installation site and make sure that it is level and
stable.
2. Check that the space between the base of the cabinet and the ground is at least
50 mm.
3. If necessary, set up the basic cabinet in the following way:
● Unscrew lock nut (Figure 4-1, A) on one of the cabinet feet using an open-end
wrench (wrench size = 13 mm).
● Adjust the height of the cabinet foot by turning the screw nut (Figure 4-1, B)
so that the cabinet is steady and the minimum clearance is observed.
● Fix the cabinet foot in position by tightening the lock nut (Figure 4-1, A).

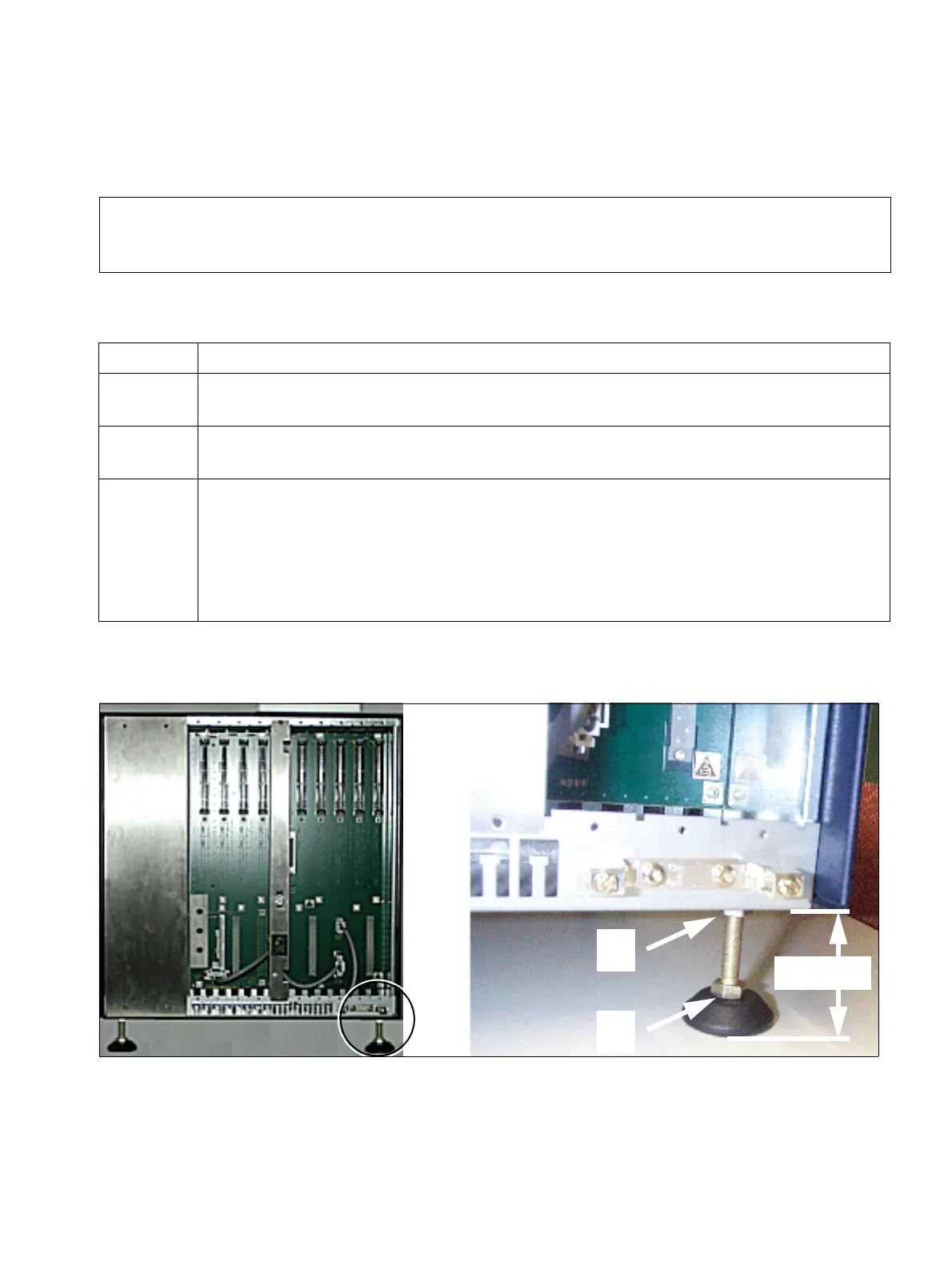

Figure 4-1 HiPath 3800 - Setting Up the Basic Cabinet
A
B
≥ 50 mm
