Boards for HiPath 3000
P31003-H3550-S403-4-7620, 02/05
3-352 HiPath 3000 V5.0, HiPath 5000 V5.0, Service Manual
boards.fm
Options
Slot
Insert the REALS board into the slot marked 3 in the lower part of the shelf in the basic cabinet
and apply pressure until you hear a click (see Figure 4-21).
The slots for the power supply units and for the REALS board must be covered with an outer
panel before the system is started up. The outer panel is fixed onto the shelf with screws (see
Figure 3-158).
Cable and connector assignment
Table 3-164 shows the assignment of the SIVAPAC connector X116 on the backplane and the
assignment of the jumper strip in the MDFU-E.

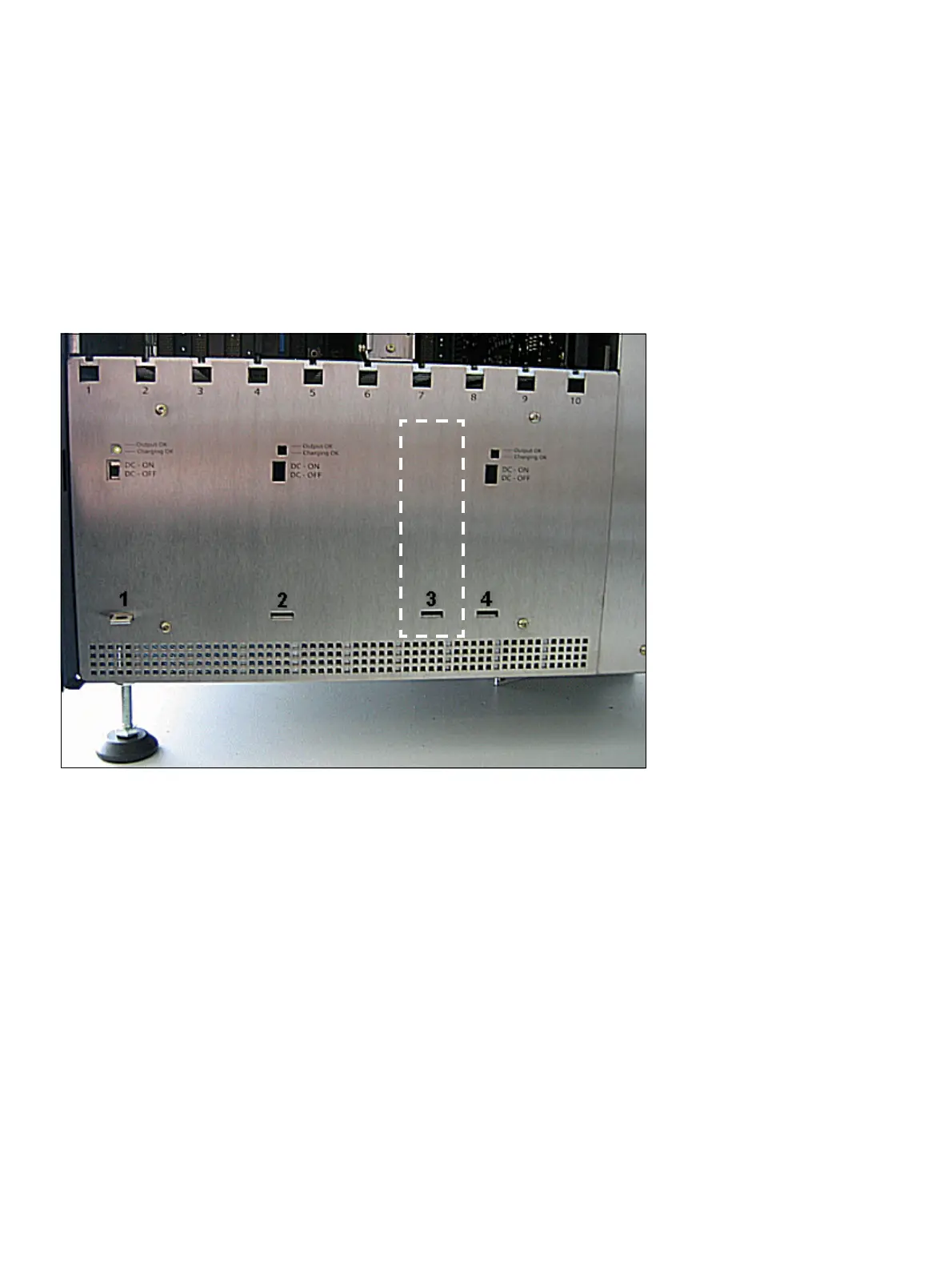

Figure 3-158 REALS Slots in the Basic Cabinet (With Outer Panel Mounted)
