Installing HiPath 3000
Installing HiPath 3750, HiPath 3700
Backplane on the “8-slot” expansion cabinets
Jack Assignment on the “8-Slot” Backplane

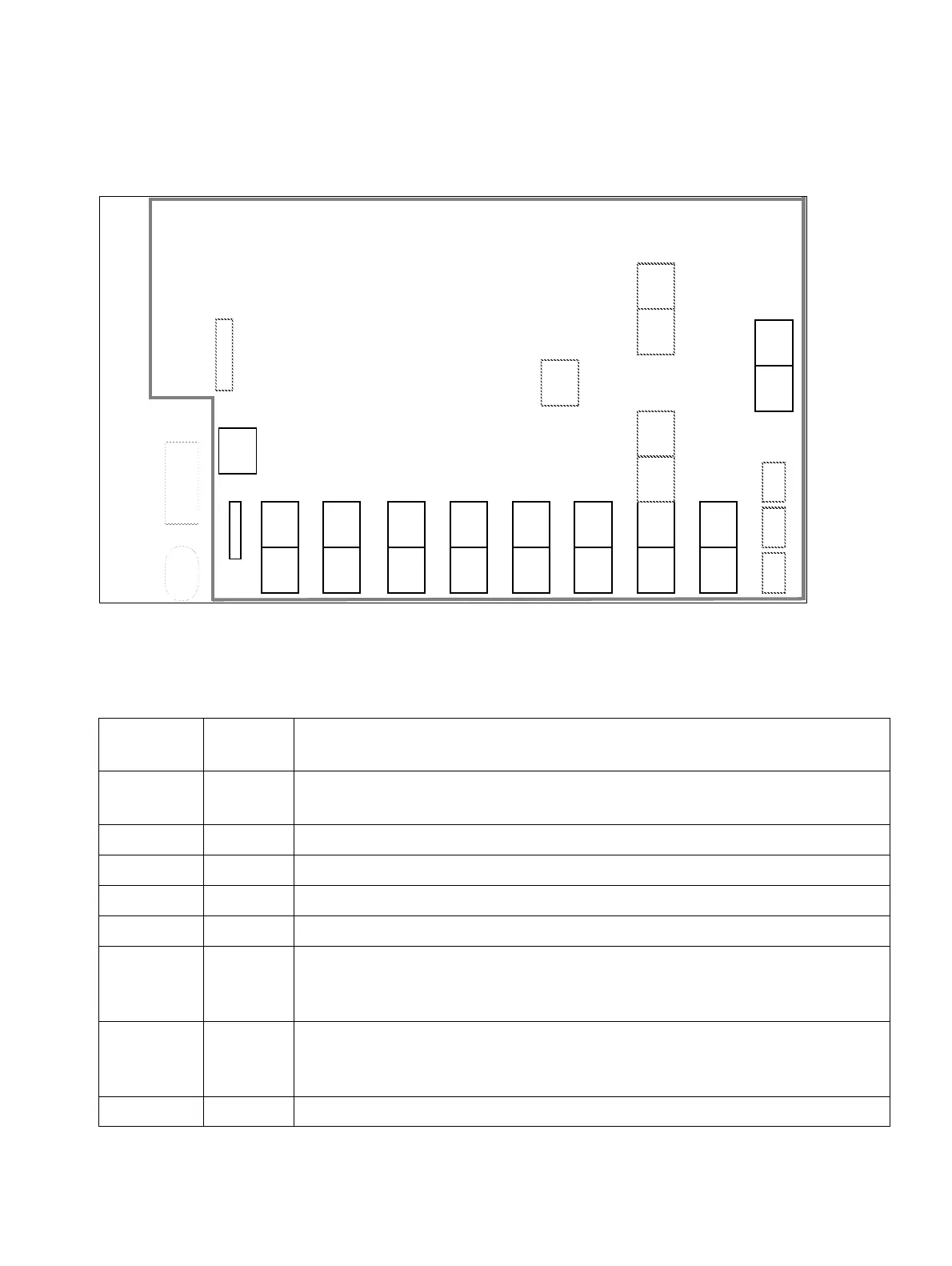

Figure 4-64 HiPath 3750 - Backplane on the “8-Slot” Expansion Cabinets
Table 4-12 Jack Assignment on the “8-Slot” Backplane
Connec-
tor
Cabinet Function
X7 BC V.24 interface (no electrical isolation) via 25-pin jack: Connection for
printer, Plus products, and other devices.
X5 BC Cable connector to REAL
X6 BC MDFU-to-REAL connection via SU connector
X11 BC Cable connector to EC1: X13
X12 BC Cable connector to EC1: X14
X13 BC
EC1
EC2
Cable connector to EC2: X13
Cable connector to BC: X11
Cable connector to BC: X13
X14 BC
EC1
EC2
Cable connector to EC2: X14
Cable connector to BC: X12
Cable connector to BC: X14
X28 - X88 All 1 SU connector each (16 TW) to MDFU or MDFU-E
X70 X50
–
X10X60 X20X30X40X80
X13
X14
X88
X89
X68
X69
X48
X49
X58
X59
X28
X29
X78
X79
X38
X39
UPSM
X100
X98
X99
X90
BC
Not used
Not
used
