Workpoint Clients
IP Telephony (Voice over IP)
The bottom key of the first key module installed on the telephone (optiPoint SLK module or op-
tiPoint key module) is automatically defined as “Shift key” (default). A Shift key must not already
be programmed.
10.6.1.4.2 optiPoint 410 Display Module
This is an add-on device with a graphic swivel display (240 x 320 pixels) with touchscreen func-
tionality, background illumination, and navigation keys.
Main features
● Graphical user interface
● Local personal telephone directory
● Access to company-wide telephone directory via LDAP
● WAP browser
● Voice-controlled dialing
● Call list containing all incoming and outgoing calls
● Speed-dialing list
● Online help

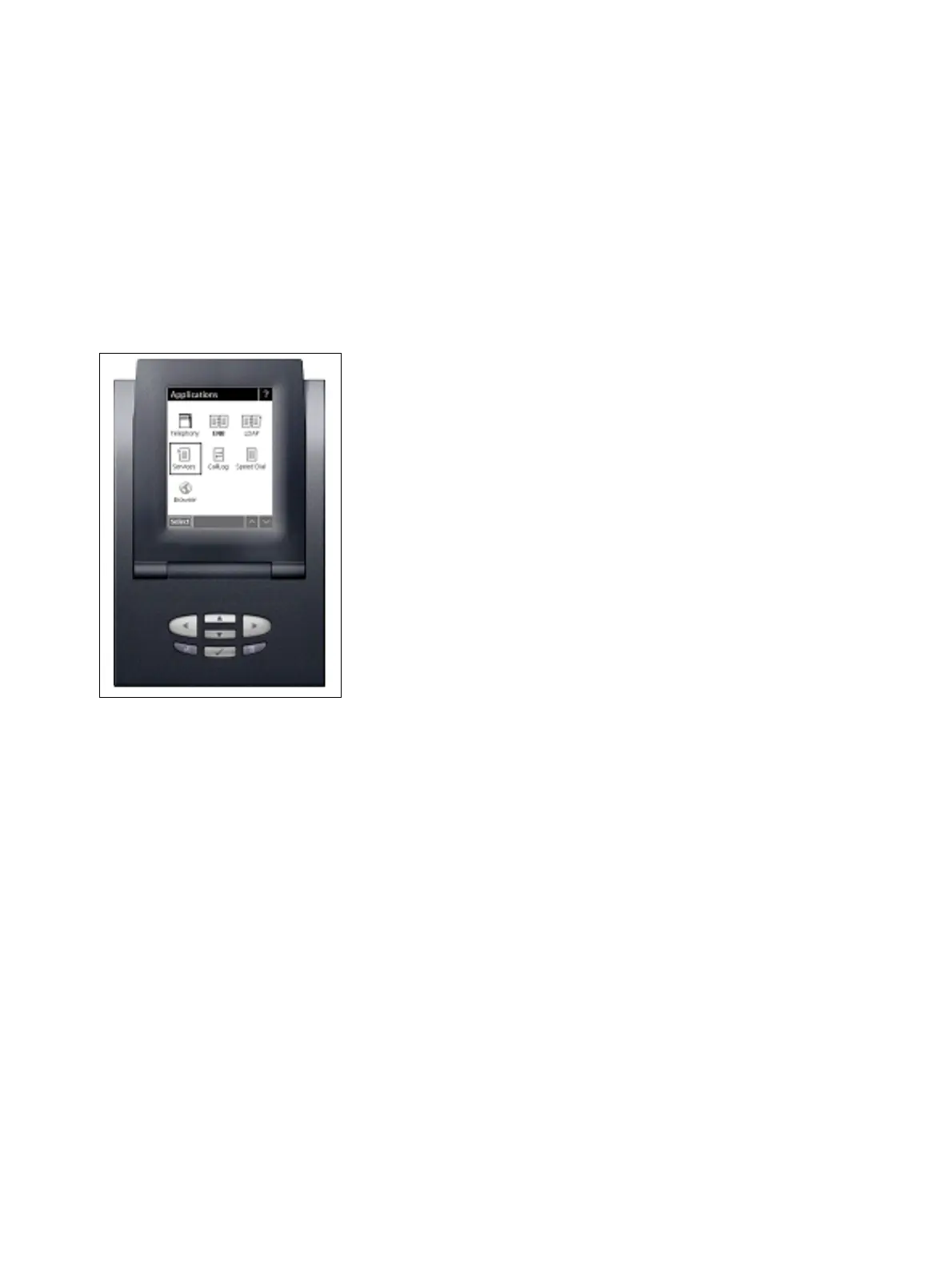

Figure 10-30 optiPoint 410 Display Module
