4.3.3.4.9 For U.S. only: Installing the Seismic Anchors

Seismic anchors can be used for additional stability if desired by the customer or required by

code.

Procedure

The anchor for the back of the cabinets is wider to provide space for cables.

Seismic Anchoring

Local building codes may require the use of seismic anchors in critical locations,

such as hospitals. The HiPath 3750 seismic anchor kit includes bolts and attach-

ments specially designed for concrete floors. If necessary, consult the location plan-

ner to check legal requirements or whether the customer requires seismic anchors

for a different substrate.

Step Activity

1. Hook the anchor into the center holes in the lower grill on each cabinet (front and

back).

2. Bolt the anchor to the floor using the holes provided.

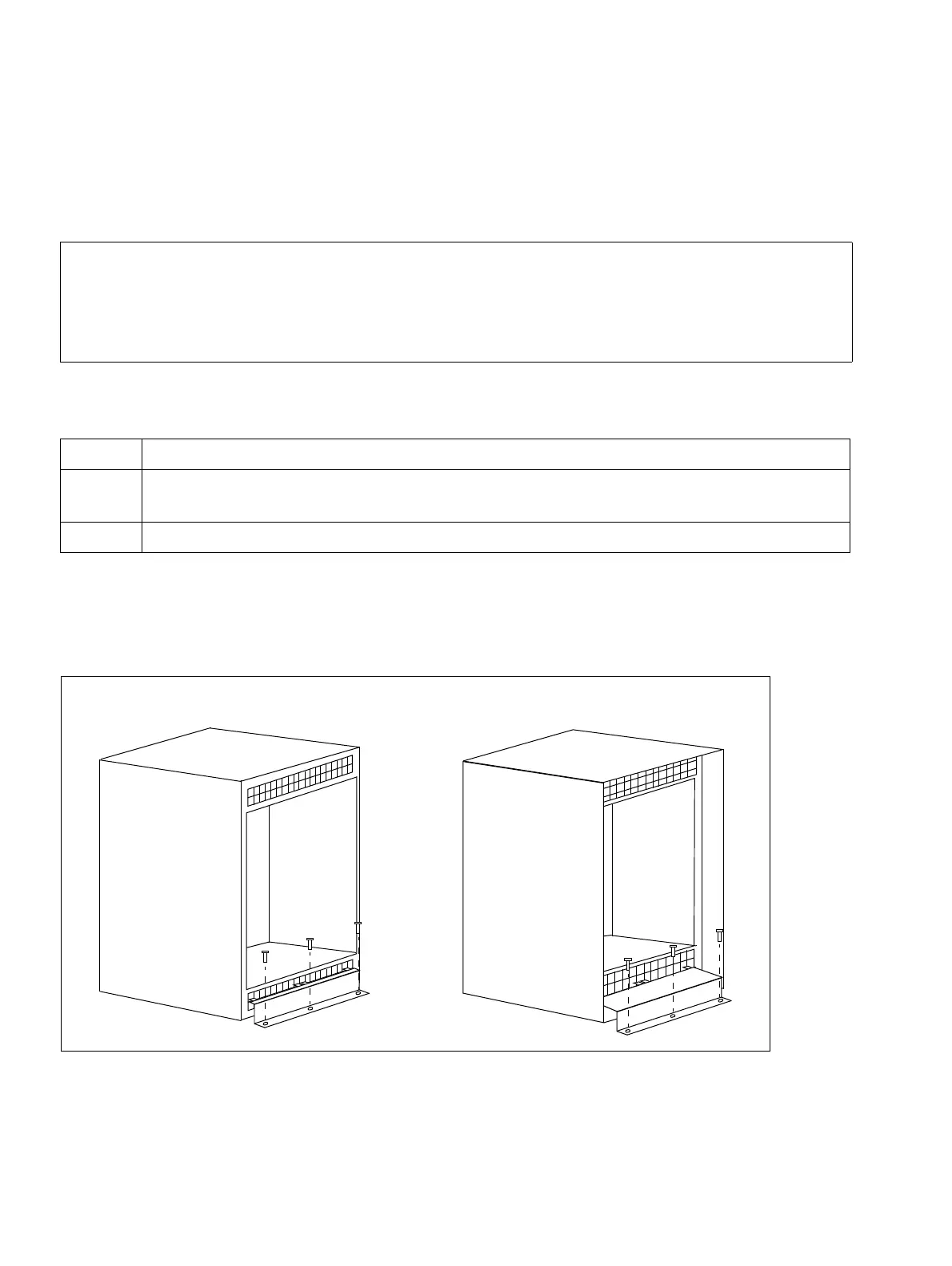

Figure 4-57 HiPath 3750 Seismic Anchors (for U.S. only)

Front Back
