Workpoint Clients
optiPoint 500
10.2.3.3 optiPoint Phone Adapter
The optiPoint phone adapter is used for connecting a second optiPoint 500 telephone (client
telephone) with its own power supply.
The system treats the client telephone as an independent telephone with a separate phone
number and its own B channel. The client telephone can send and receive calls regardless of
the connection status of the host telephone.
The maximum range between the host and client telephones is approximately 100 m (328 feet)
(for J-Y (ST) 2x2x0.6, ∅ 0.6 mm).

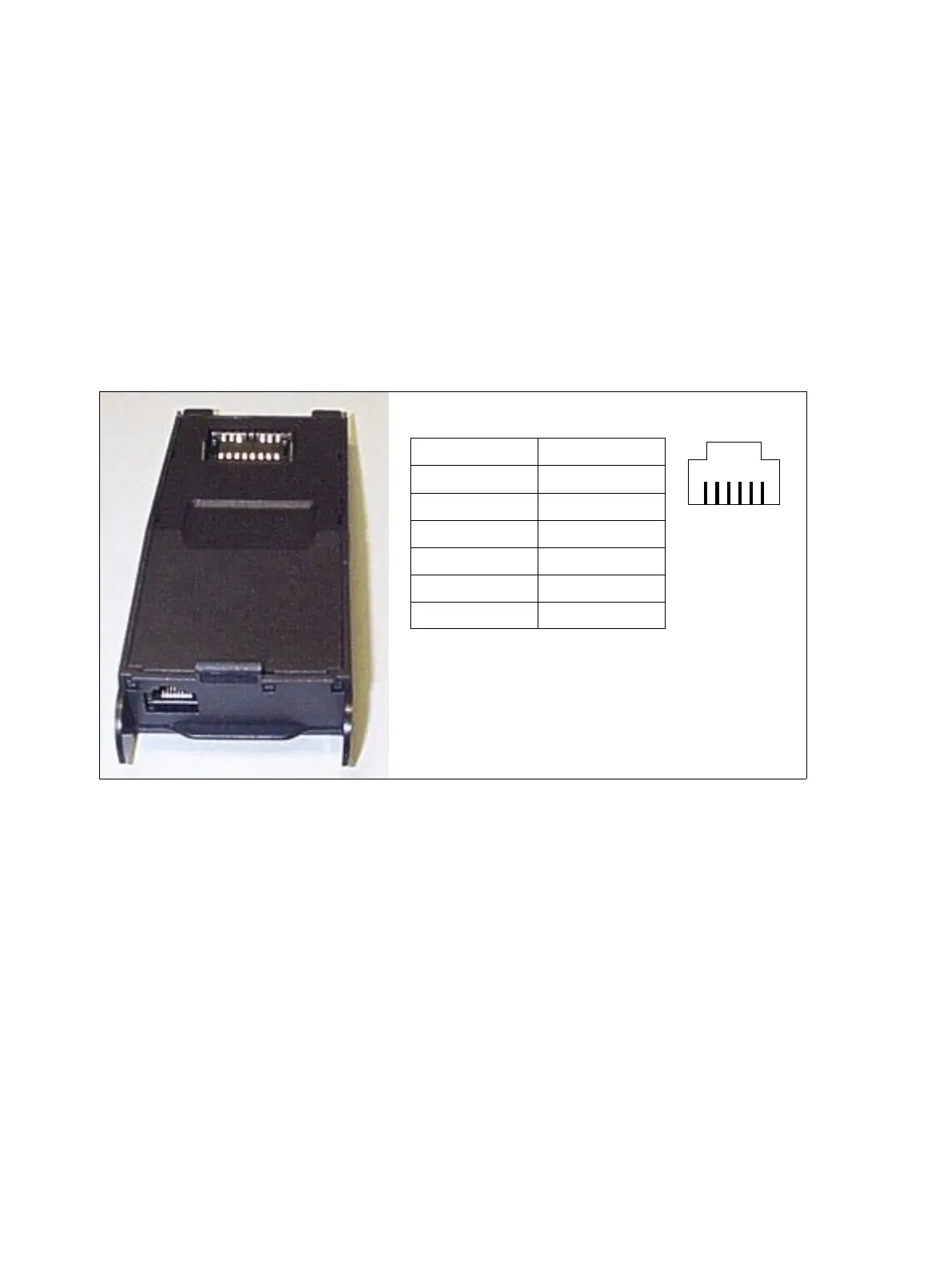

Figure 10-13 optiPoint Phone Adapter
MW6 (RJ11) socket assignments:
Pin Signal
1Free
2AUX – (a)
3U
P0/E
–
4U
P0/E
+
5AUX + (b)
6Free
61
