Siemens HiPath 3000 Service Manual

Expanding and Upgrading HiPath 3000
P31003-H3550-S403-4-7620, 02/05
9-10 HiPath 3000 V5.0, HiPath 5000 V5.0, Service Manual
exup.fm
Expanding HiPath 3000
If an EPSU2-R external power supply unit is installed in the ECR, the following additional dis-
play and control elements are also included:
● EPSU2-R 2.5 A/T [4] battery fuse (warning: do not confuse with battery fuse on the ECR
front panel)
● LED [5] for the -48-V output voltage (DC output) in the EPSU2-R (see Table 9-3)
● LED [6] for the line input voltage (AC input) in the EPSU2-R (see Table 9-3)

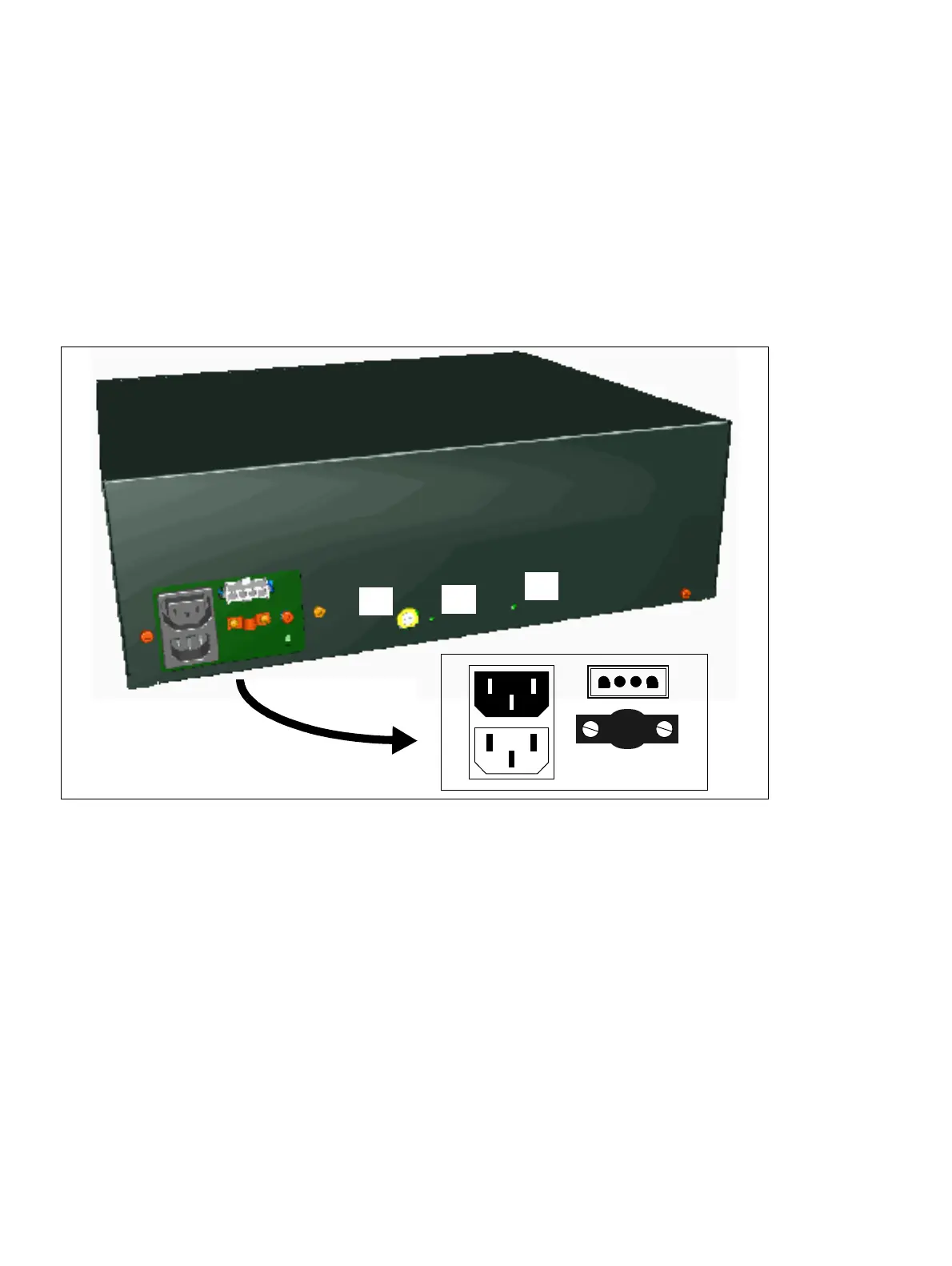

Figure 9-3 ECR Rear Panel With Connecting Elements
[1]
[3]
[4]
[5]
[6]
[2]
