Installing HiPath 3800
Boards that can be connected from the front have a specially shielded front cover. An additional
cover is not required.
Special board attachments
● DBSAP
The DBSAP board is plugged into four socket contacts on the backplane of the expansion
cabinet and fixed with screws.
● LUNA2
Depending on the system configuration up to three LUNA2 modules can be used in the ba-
sic cabinet and up to four LUNA2 modules can be used in the expansion cabinet. For in-
formation on how to calculate the number of LUNA2 modules required, see the LUNA2
board description.
Push the LUNA2 power supply unit into the slots provided in the lower part of the system
cabinet shelf until you hear a click.
The slots for the power supply units must be covered with an outer panel before the system
is started up. The outer panel is fixed onto the shelf with screws (see Figure 4-19 and
Figure 4-20).

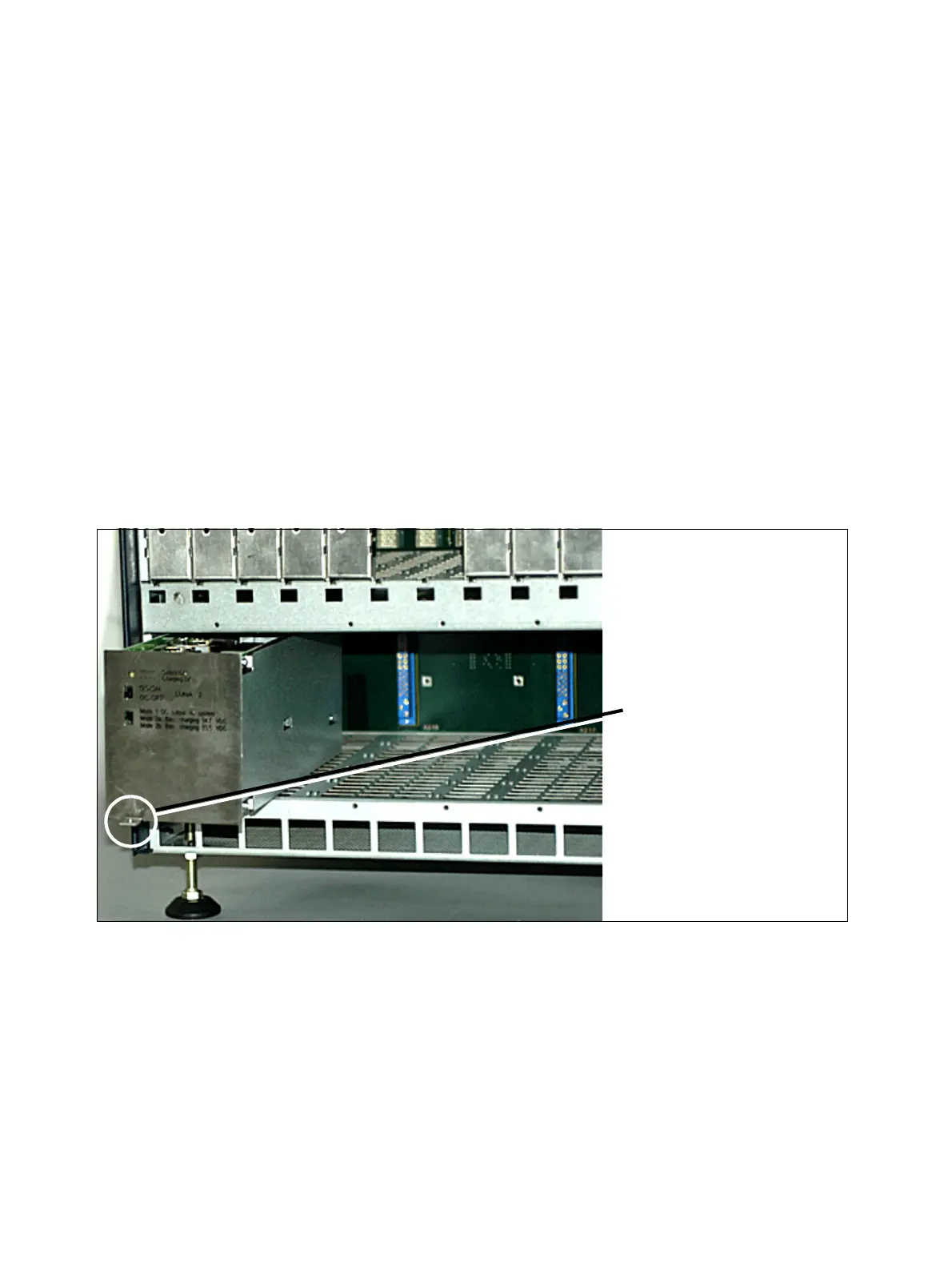

Figure 4-18 HiPath 3800 - Installing the LUNA2 Power Supply Unit
Removal tab
You can use a screw-
driver here to remove
the LUNA2 from the
shelf.
To Next Page
