Workpoint Clients
optiPoint 500
10.2.2.2 optiPoint BLF
This is an add-on device that provides 90 additional keys, LEDs and labeling areas for all pur-
poses.
The device is connected to the telephone or to an optiPoint key module over an interface cable
with the following connectors: input MW6, output MW8. Figure 10-9 shows the possible config-
urations.
Power is supplied using a power supply unit (see Section 10.7.1.1) that can supply power to up
to two optiPoint BLFs. The power supply unit must be plugged directly into the designated op-
tiPoint BLF port.

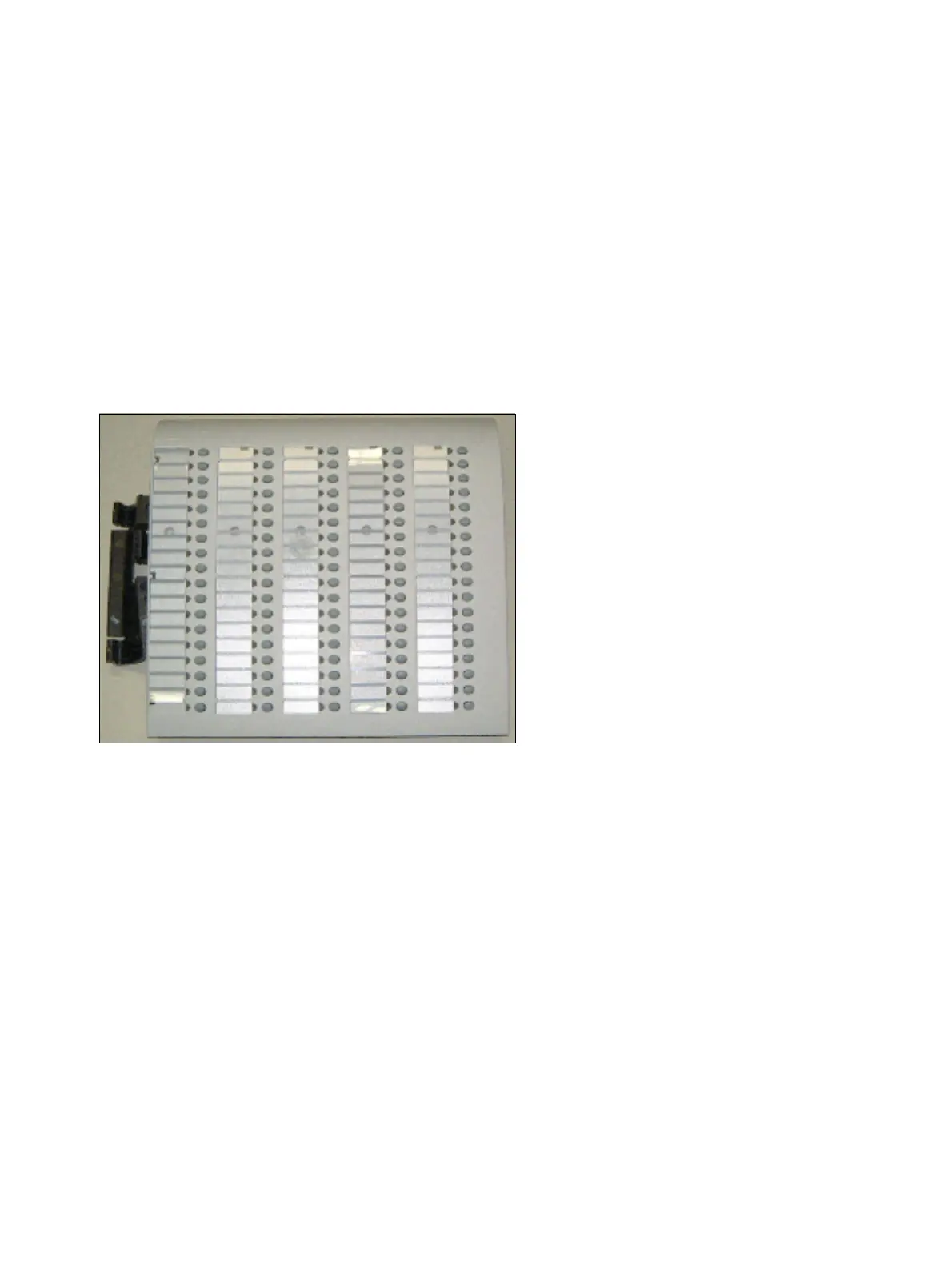

Figure 10-8 optiPoint BLF
