3.4.8 GEE8 (not for U.S)
Introduction
The Call Metering Receiving Equipment GEE8 (12/16 kHz) can be plugged into the TML8W
board to record call charge pulses (HiPath 3750 and HiPath 3700).
Interfaces X10 and X11 connect to the board.
Switch for setting the level per circuit
● On = – 24 dBm
● Off = – 10 dBm
Switch on GEE8

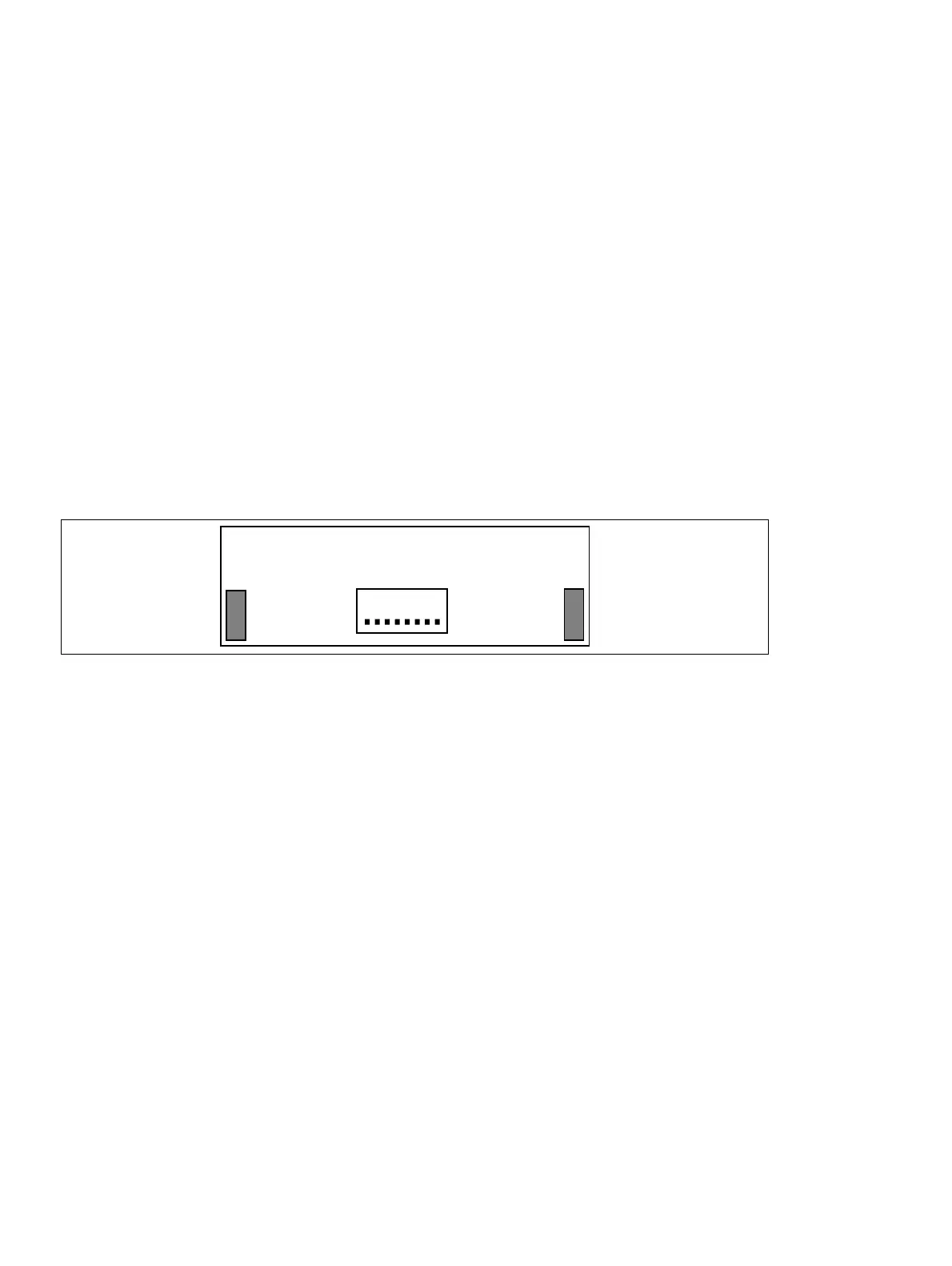

Figure 3-147 GEE8 (Not for U.S.) (S30817-Q664-xxxx)
X10 X11
On
1 8
