Siemens HiPath 3000 Service Manual

Installing HiPath 3000
P31003-H3550-S403-4-7620, 02/05
4-38 HiPath 3000 V5.0, HiPath 5000 V5.0, Service Manual
inst_h3.fm
Installing HiPath 3800
● REALS
Insert the REALS board into the slot marked 3 in the lower part of the shelf in the basic
cabinet and apply pressure until you hear a click.
The slots for the power supply units and for the REALS board must be covered with an out-
er panel before the system is started up. The outer panel is fixed onto the shelf with screws
(see Figure 4-19).

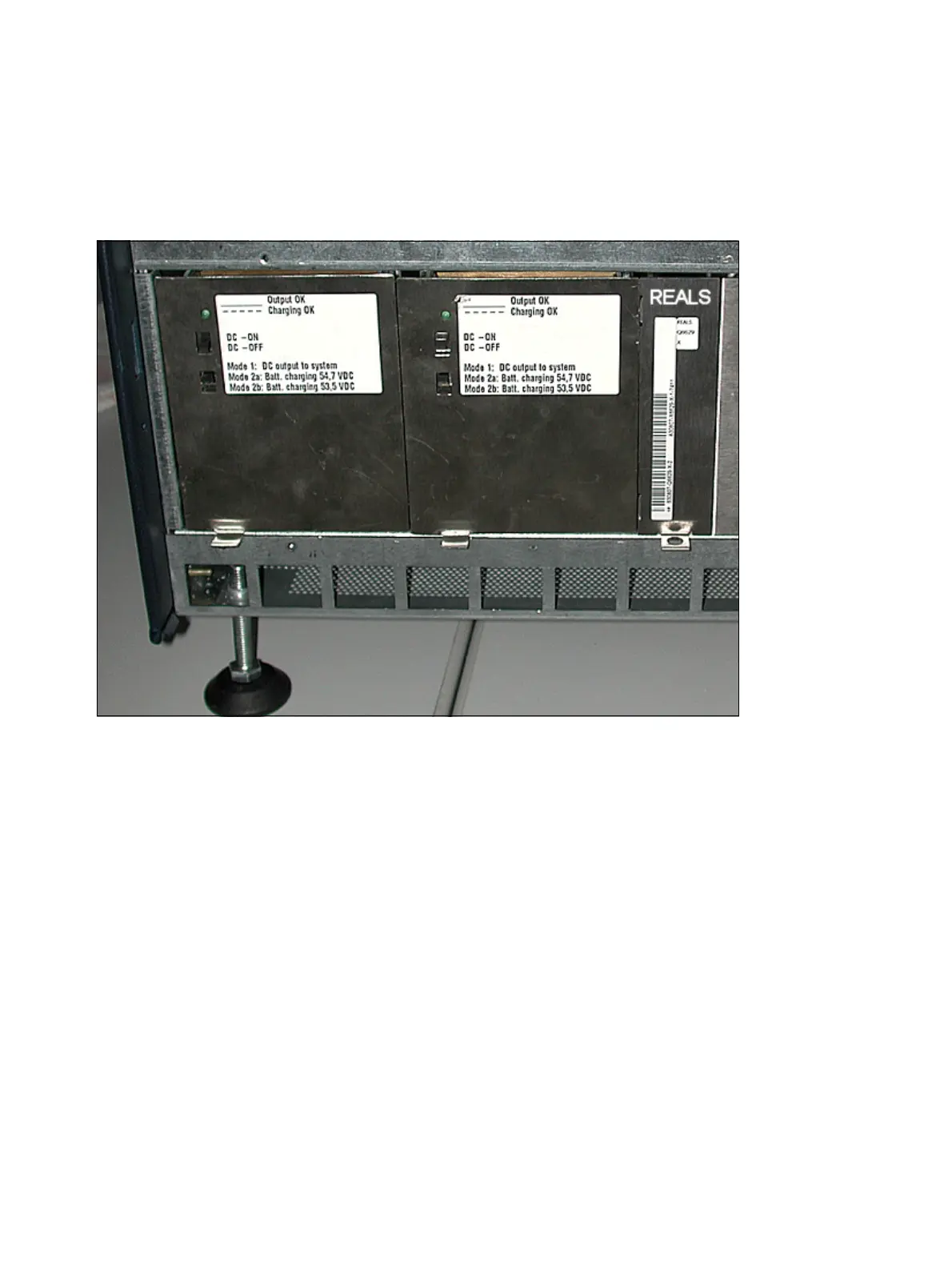

Figure 4-21 HiPath 3800 - Installing the REALS Board
