Installing HiPath 3000
Installing HiPath 3750, HiPath 3700
Procedure: Fitting stabilizer feet
Mounting the stabilizer feet
7
Caution
Always mount the stabilizer feet on stacked, surface-mounted system cabinets to
ensure stability (Figure 4-52).
Step Activity
1. Place the stabilizer feet beneath the right and left outer edges of the cabinets. In-
sert the cabinet feet into the two holes in the stabilizer feet (1).
2. Attach the stabilizer feet to the metal housing of the cabinet (2) by inserting two
screws per foot into the pre-drilled holes in the housing.
3. Continue installing the system.

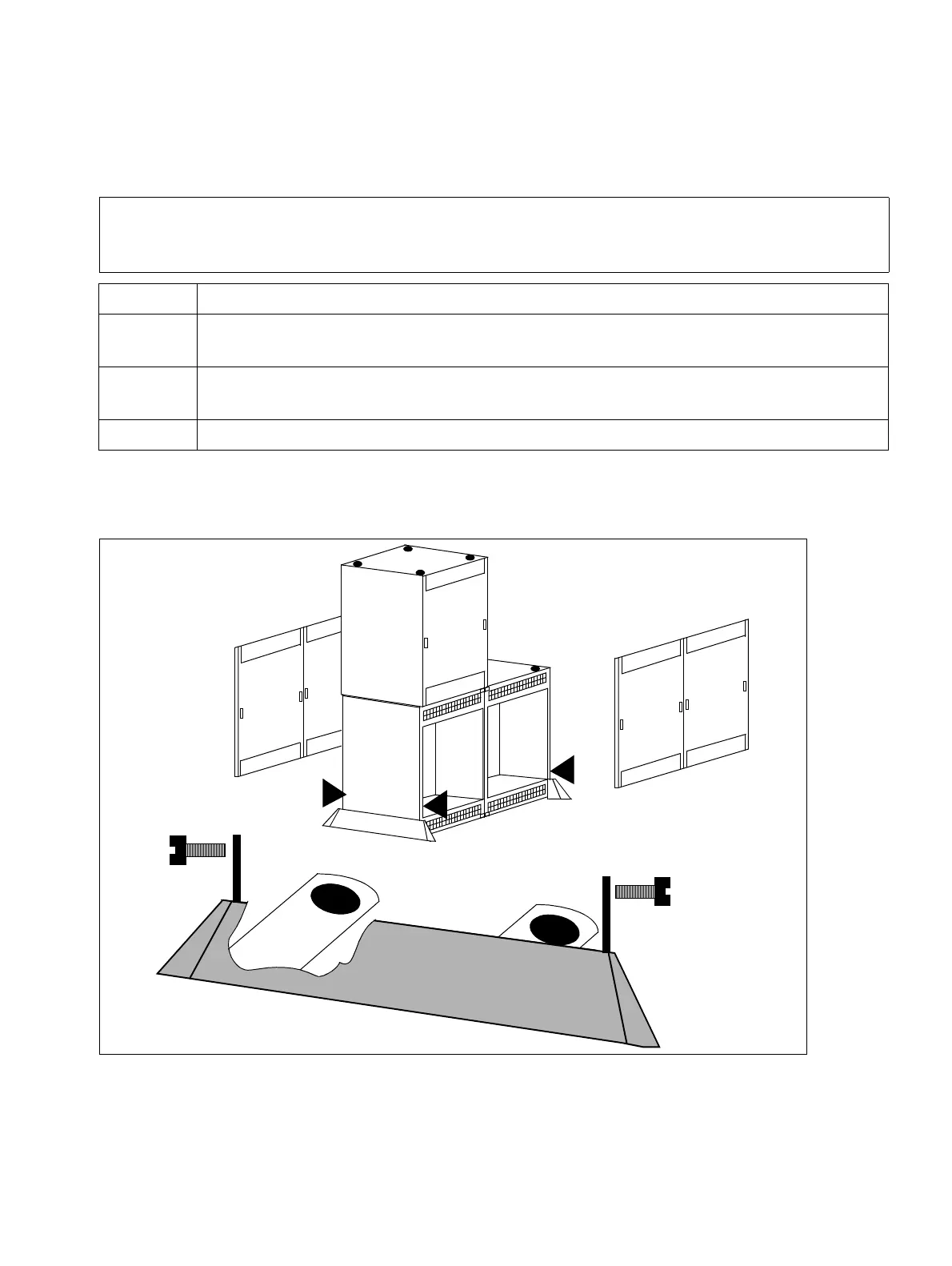

Figure 4-52 HiPath 3750 - Mounting the Stabilizer Feet (Three-Cabinet System Shown)
(1)
(1)
(2)
(2)
(2)
