Installing HiPath 3000
Installing HiPath 3750, HiPath 3700
You can invert the wall brackets to have the cabinets swing out in the opposite direction.
Wall Mounting (Stacked Two-cabinet System)
4. Bolt the swing-out assembly on the wall-mounting bracket to the back of each cab-
inet.
5. Close the swing-out assembly; Close the swing-out assembly and hang each brack-
et and cabinet on the top screws.
6. Swing the cabinet open and tighten the top screws completely.
7. Insert and fully tighten the bottom screws in the round holes.
8. Bolt the latching assembly to the opposite edge of each cabinet.
7
Warning
Do not fasten power cords to building surfaces when mounting cabinets on the wall.

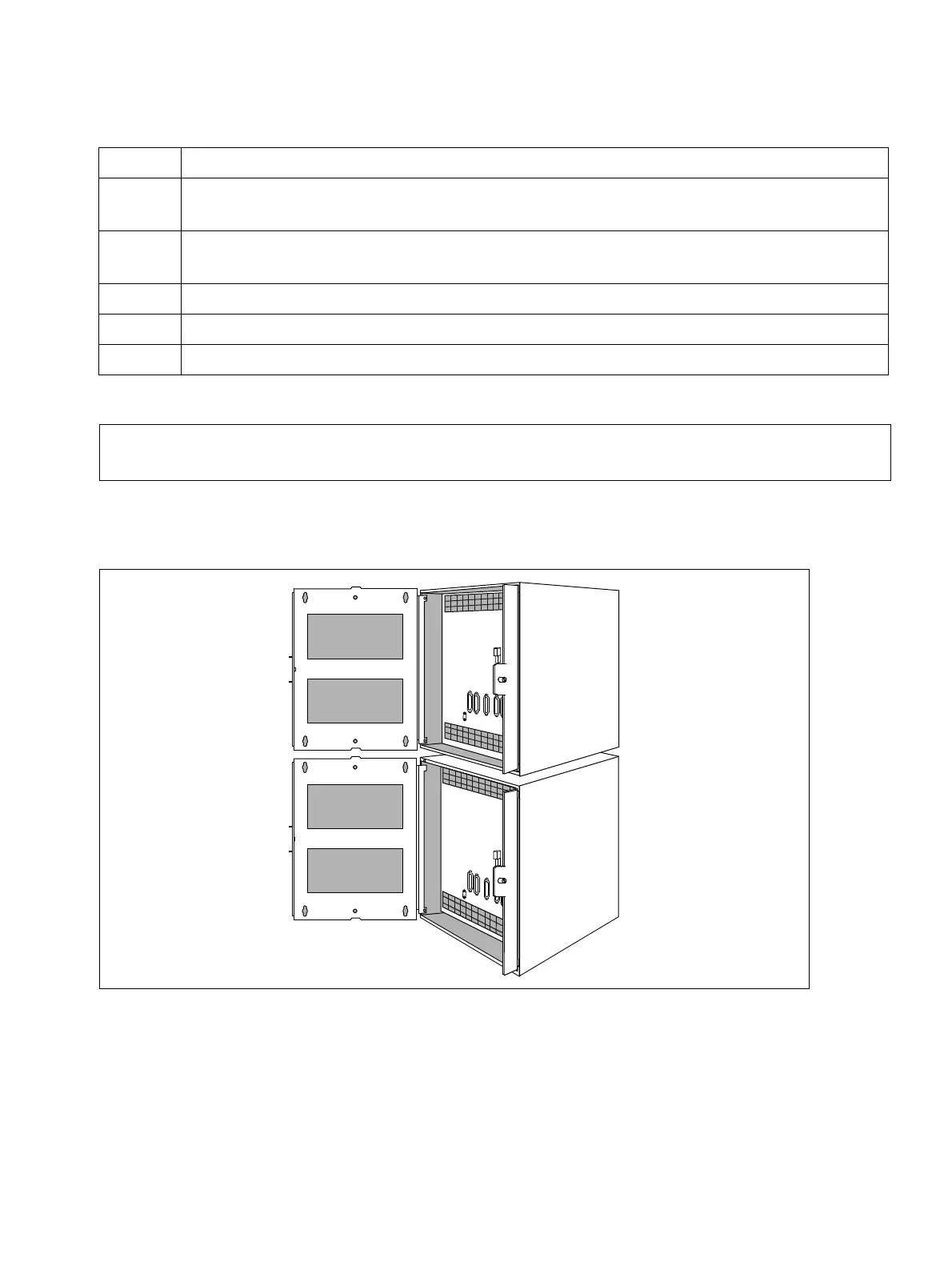

Figure 4-54 HiPath 3750 Wall Mounting for a Stacked Two-Cabinet System (for U.S. only)
Step Activity
