boards.fm
P31003-H3550-S403-4-7620, 02/05
HiPath 3000 V5.0, HiPath 5000 V5.0, Service Manual
3-337
Boards for HiPath 3000
Options
3.4.9 GEE12 (nor for U.S.), GEE16 (not for U.S.), GEE50 (not for U.S.)
Introduction
Each of the modules listed below supports four call-metering receiving units for recording and
preprocessing call charge pulses in HiPath 3550 and HiPath 3350.
The call charge detection channel is looped in the trunk and then routed to the TLA
Interfaces

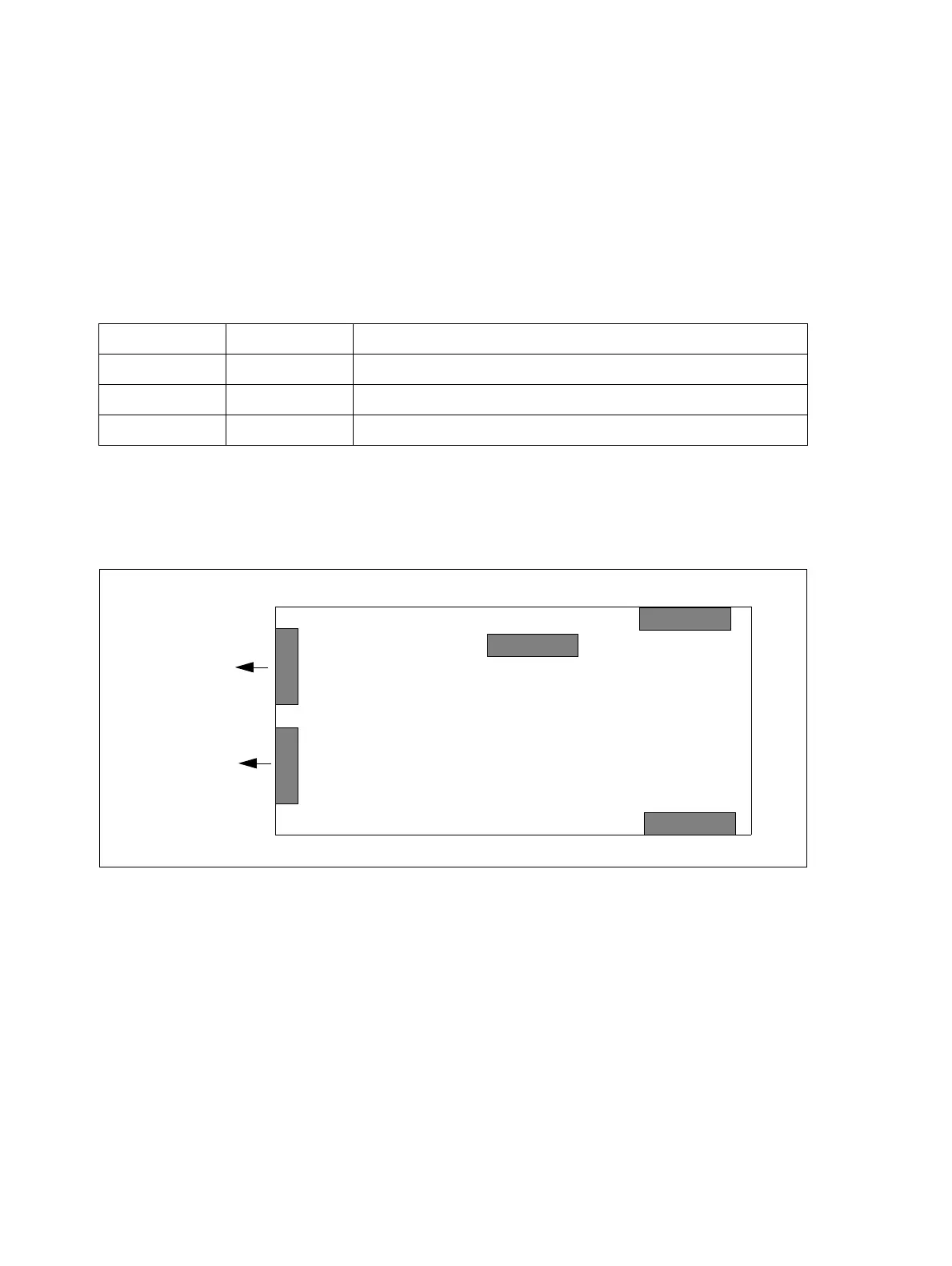

Table 3-161 GEE12/GEE16/GEE50 (Not for U.S.) Modules
Module Frequency Remarks
GEE 12 12 kHz also for Silent Reversal
GEE 16 16 kHz
GEE 50 50 Hz
Figure 3-148 GEE12, GEE16, GEE50 (Not for U.S.) - Interfaces (S30817-Q951-Axxx)
To CO
LS
CB side
Board side
X2
X1
GEE module
to the TLA
X3
X4
1
10
1
8
X5
1 10
