Boards for HiPath 3000
P31003-H3550-S403-4-7620, 02/05
3-244 HiPath 3000 V5.0, HiPath 5000 V5.0, Service Manual
boards.fm
Peripheral Boards
3.3.26 TLA4R (Not for U.S.)
Introduction
The TLA4R (Trunk Line Analog Rack) board provides four ports for the analog trunk connection
(DP and DTMF signaling methods) on HiPath 3500 and HiPath 3300 (19-inch housing). There
are also two ALUM power failure transfers.
The transmission and function-oriented characteristics of the TLA4R are completely identical
to those of the TLA boards that are used in HiPath 3550 and HiPath 3350. The only differences
are
● the two ALUMs which are only available on the TLA4R.
● the call metering receiving equipment interface, which is only on the TLA boards.
Interfaces

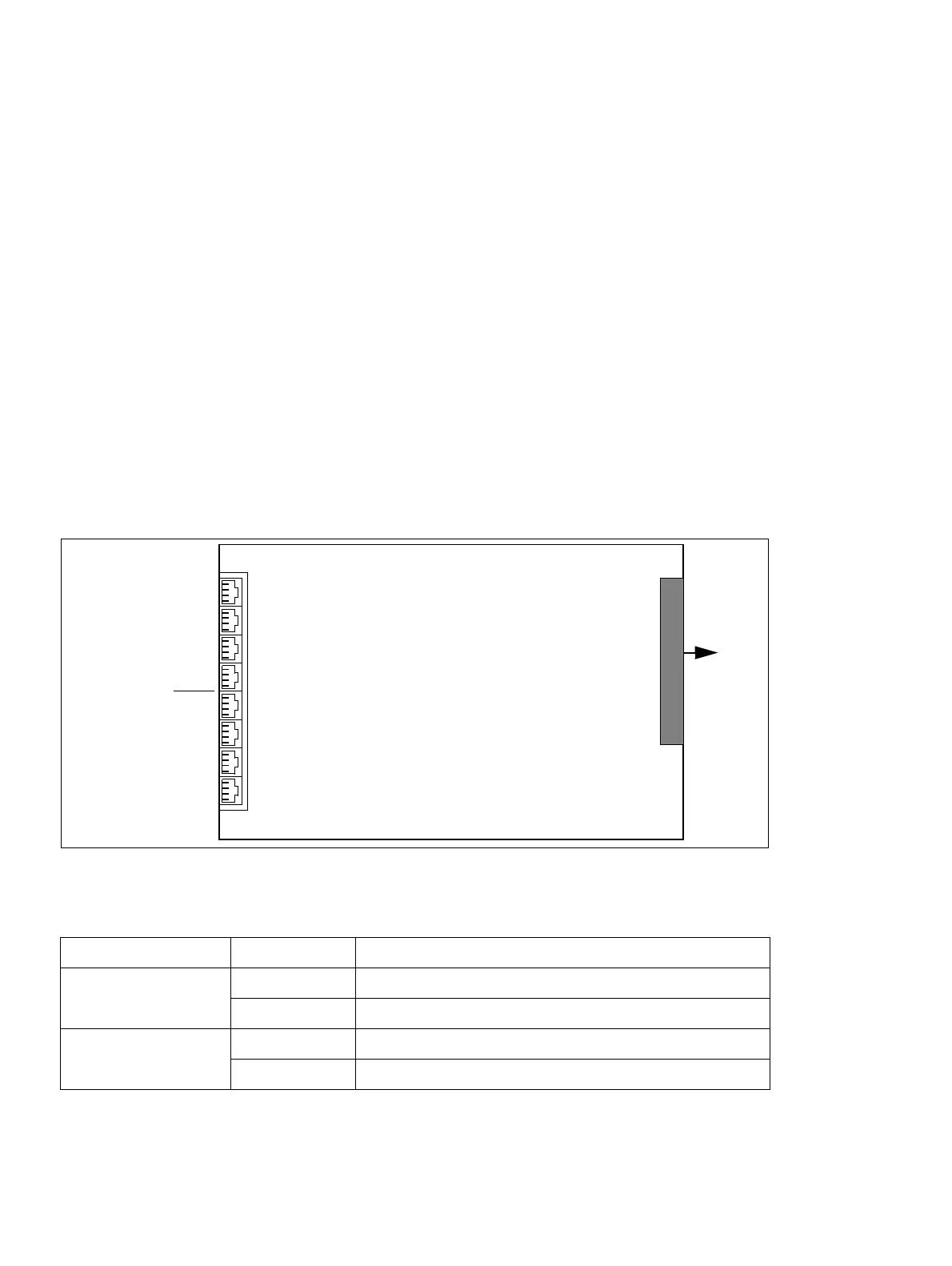

Figure 3-103 TLA4R (Not for U.S.) Interfaces (S30817-Q923-Zxxx)
Table 3-109 TLA4R (Not for U.S.) Contact Assignments
MW8 Jack X5, pin Trunk connections 1-4
1 14 a trunk 1
15 b trunk 1
2 24 a trunk 2
25 b trunk 2
8 MW8
jacks
X1
50
2
To
CUPR
CUCR
X5
88
Trunk 1
:
:
Trunk 4
ALUM
1 + 2
21
:
18
11
To Next Page
