Installing HiPath 3000
P31003-H3550-S403-4-7620, 02/05
4-176 HiPath 3000 V5.0, HiPath 5000 V5.0, Service Manual
inst_h3.fm
Installing HiPath 3550, HiPath 3350, HiPath 3500, and HiPath 3300
4.4.3.8 Laying the Line Network and Connection Cables
HiPath 3550 and HiPath 3350 - CABLU for connection to the external main distribution
frame

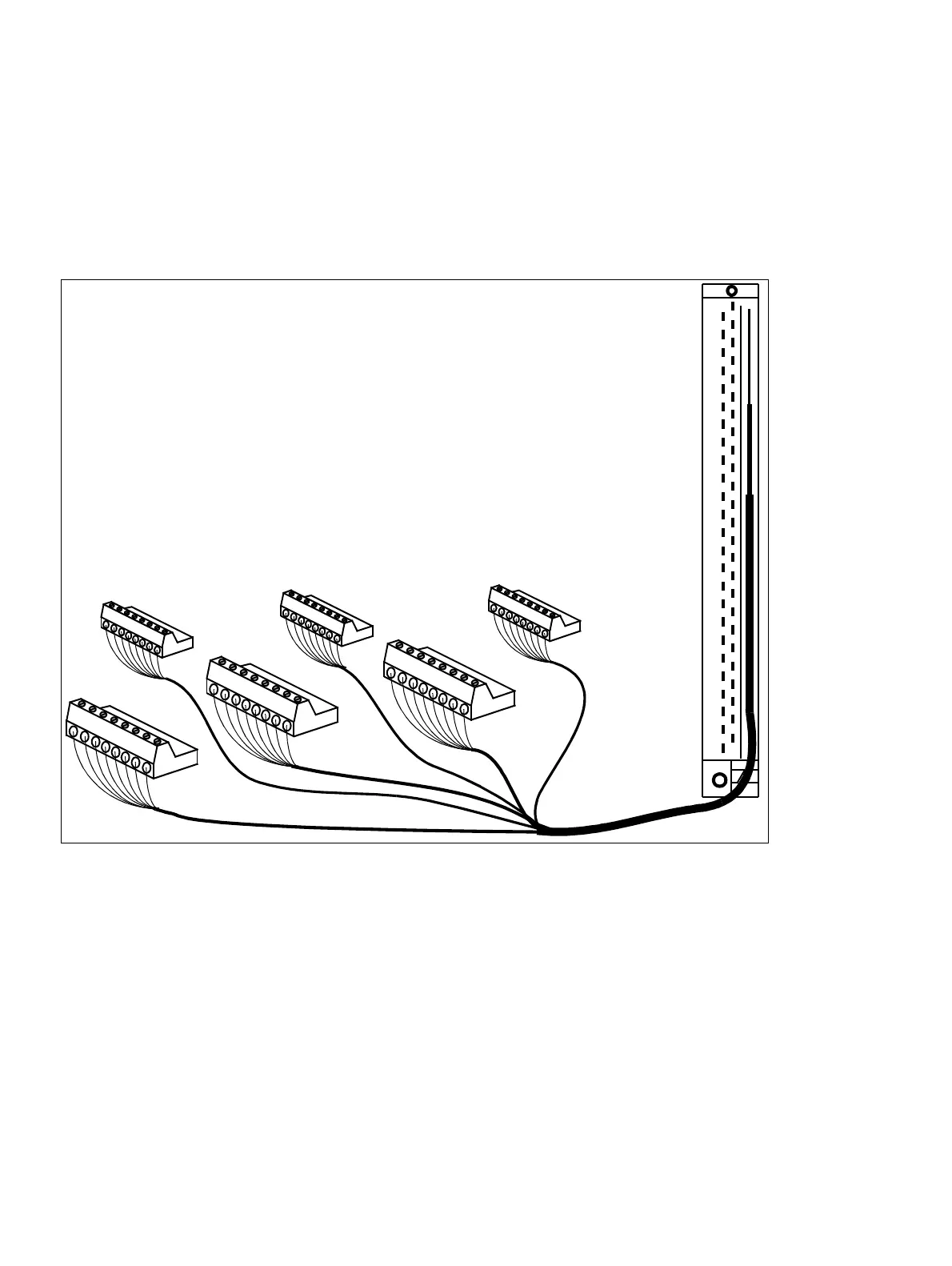

Figure 4-98 Layout of CABLU S30269-Z41-A30 (Length = 3 m)
6 slip-on connectors (4 TW each) for connection to the HiPath
3550 and HiPath 3350 boards
Jumper strip (25 TW) for installation in the exter-
nal main distribution frame
