service.fm
P31003-H3550-S403-4-7620, 02/05
HiPath 3000 V5.0, HiPath 5000 V5.0, Service Manual
12-35
Service
Guided Maintenance
Arranging trace windows
The active Trace Monitor trace windows can be arranged as follows:
● Cascade
Using the key combination < + E or via the Cascade entry in the menu window.
● Tile Horizontally
Using the key combination < + F or via the Tile Horizontally entry in the menu
window.
● Tile Vertically
Using the key combination < + D or via the Tile Vertically entry in the menu win-
dow.
If the Trace windows are minimized as symbols, these can be arranged using the status bar.
For this, select the Arrange Icons entry in the menu window.
12.3.1.6.5 Exporting Trace Windows
Each trace window has a capacity of 1,000 (for the Server PC under Windows 95/98) or 5,000
entries (for the Server PC under Windows NT or Windows 2000). When this capacity is
reached, the oldest entry is deleted from the trace window for each new entry.
To document a current situation from a trace window, you can save the current status of a trace
window to a swap file.
Procedure
1. The Write Messages to File entry should be selected via the system menu or, alternative-
ly, the context menu (right-click in the Trace window) of the relevant Trace window.

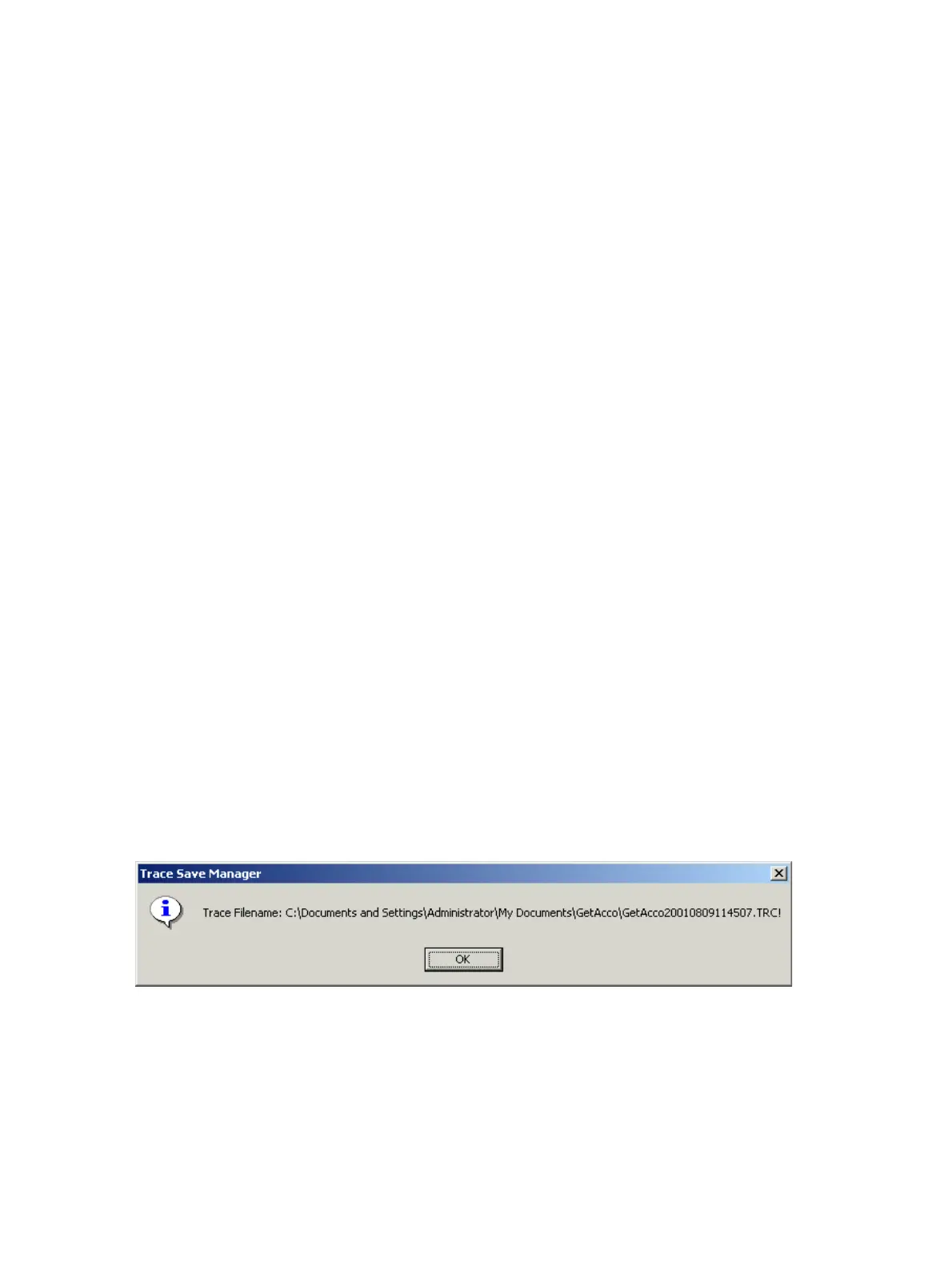

A message box containing the path and file name of the swap file for the trace window ap-
pears:
2. Confirm the message with OK.
