3.2.5 CMA
Introduction
The Clock Module ADPCM CMA (S30807-Q6931-X) is an optional subboard for the CBCC and
CBRC central control boards. The CMA module is needed for special HiPath Cordless Office
configurations.
All clock module small (CMS) functions are available when you insert a CMA module.
Please refer to Page 3-40 for recommendations on CMA module implementation.
7
Caution
Place the central control board on a flat surface before inserting the CMA subboard.
The spacing bolts supplied guarantee the correct insertion of the subboard, so you
should always mount them (see Figure 3-6).
Otherwise you may damage the board.

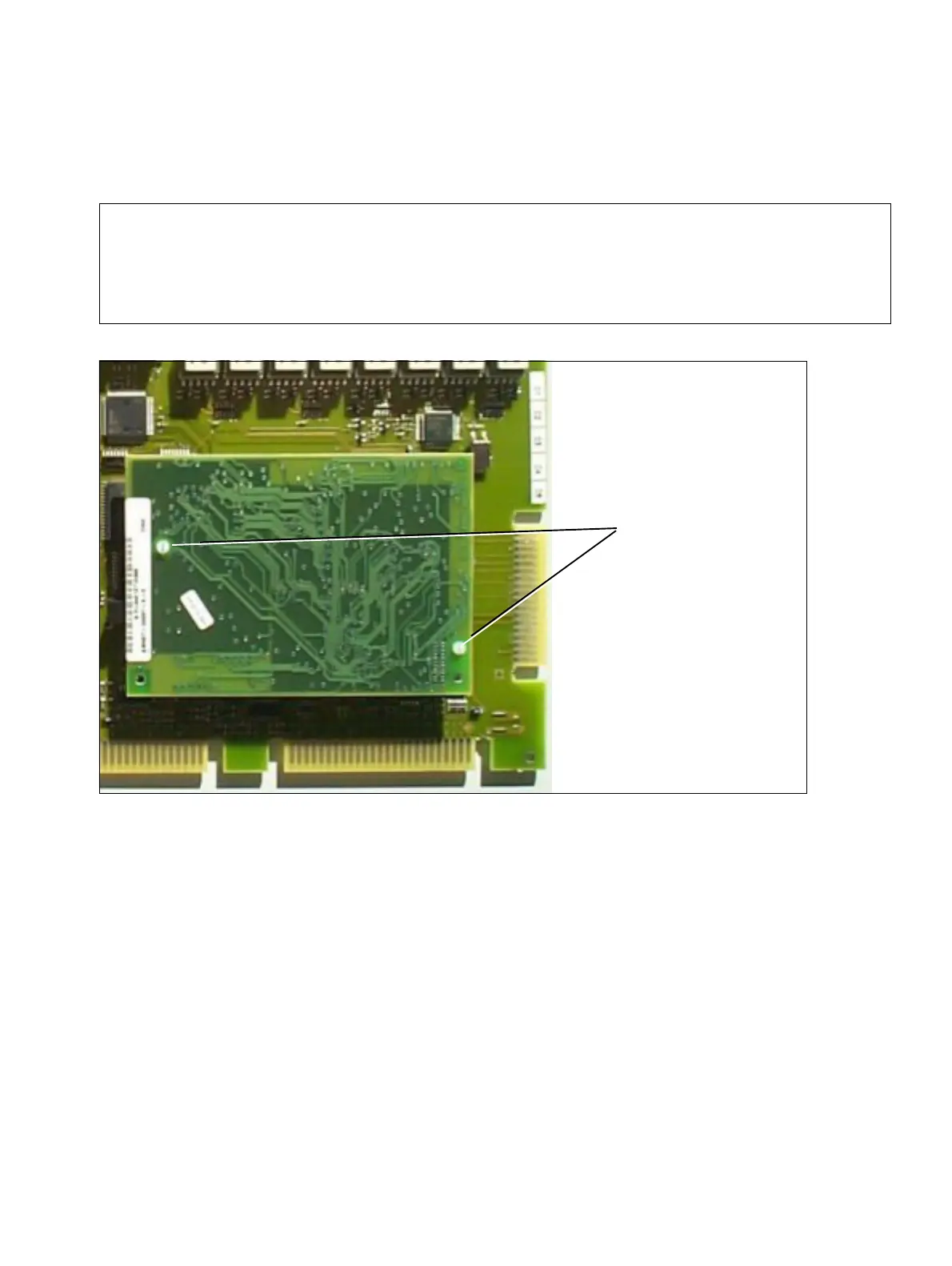

Figure 3-6 CMA with Spacing Bolts
Spacing bolts
