System Data
HiPath 3000
2.2.2.5 Design and Dimensions of HiPath 3700
Three configurations
Depending on the requirements, HiPath 3700 can be used as:
● a single-cabinet system (BC)
● a two-cabinet system (BC + EC1)
● a three-cabinet system (BC + EC1 + EC2), only when the 19-inch cabinets are next to one
another and are accessible from the back.
A special mounting set enables installation in 19-inch cabinets.
Design
The HiPath 3700 uses “8-slot” cabinets. The BC has seven slots and the expansion cabinet has
eight slots available for peripheral boards. The UPSM power supply (in all cabinets) and the
CPCPR central control board (only in the BC) have fixed positions.
Dimensions

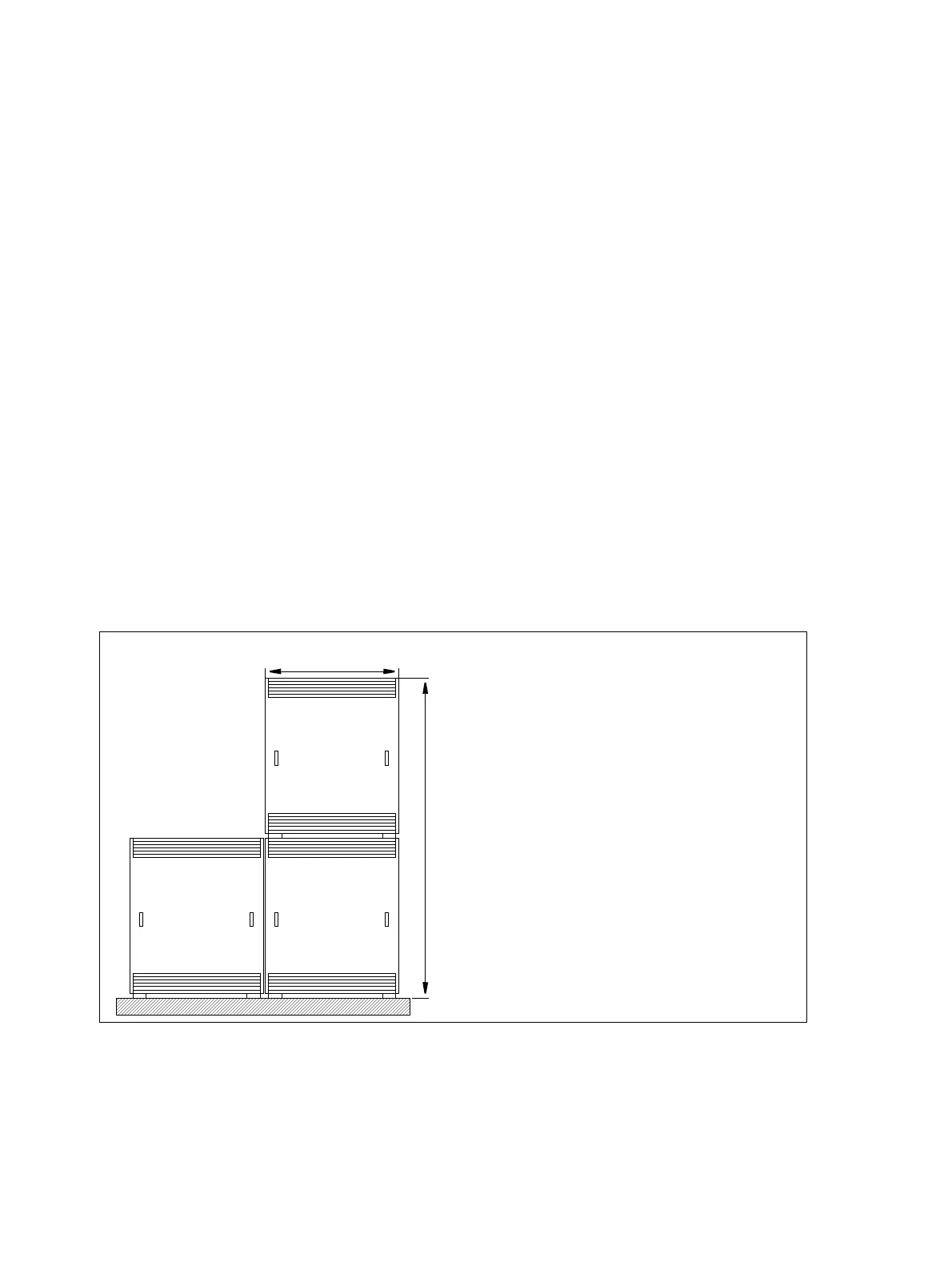

Figure 2-5 HiPath 3700 Dimensions
Depth of the system cabinet:
approx. 390 mm
Necessary height units per cabinet for
19-inch cabinet assembly: 11
(one height unit corresponds to ap-
prox. 1.7’’=43 mm)
EC1
BC
approx. 410 mm
approx. 980 mm
EC2
