Siemens HiPath 3000 Service Manual

Installing HiPath 3000
P31003-H3550-S403-4-7620, 02/05
4-70 HiPath 3000 V5.0, HiPath 5000 V5.0, Service Manual
inst_h3.fm
Installing HiPath 3800
4.2.7.2 Inserting the External Patch Panel S30807K6143-X
Structure
>
All incoming cables must be attached to the patch panel using cable ties.

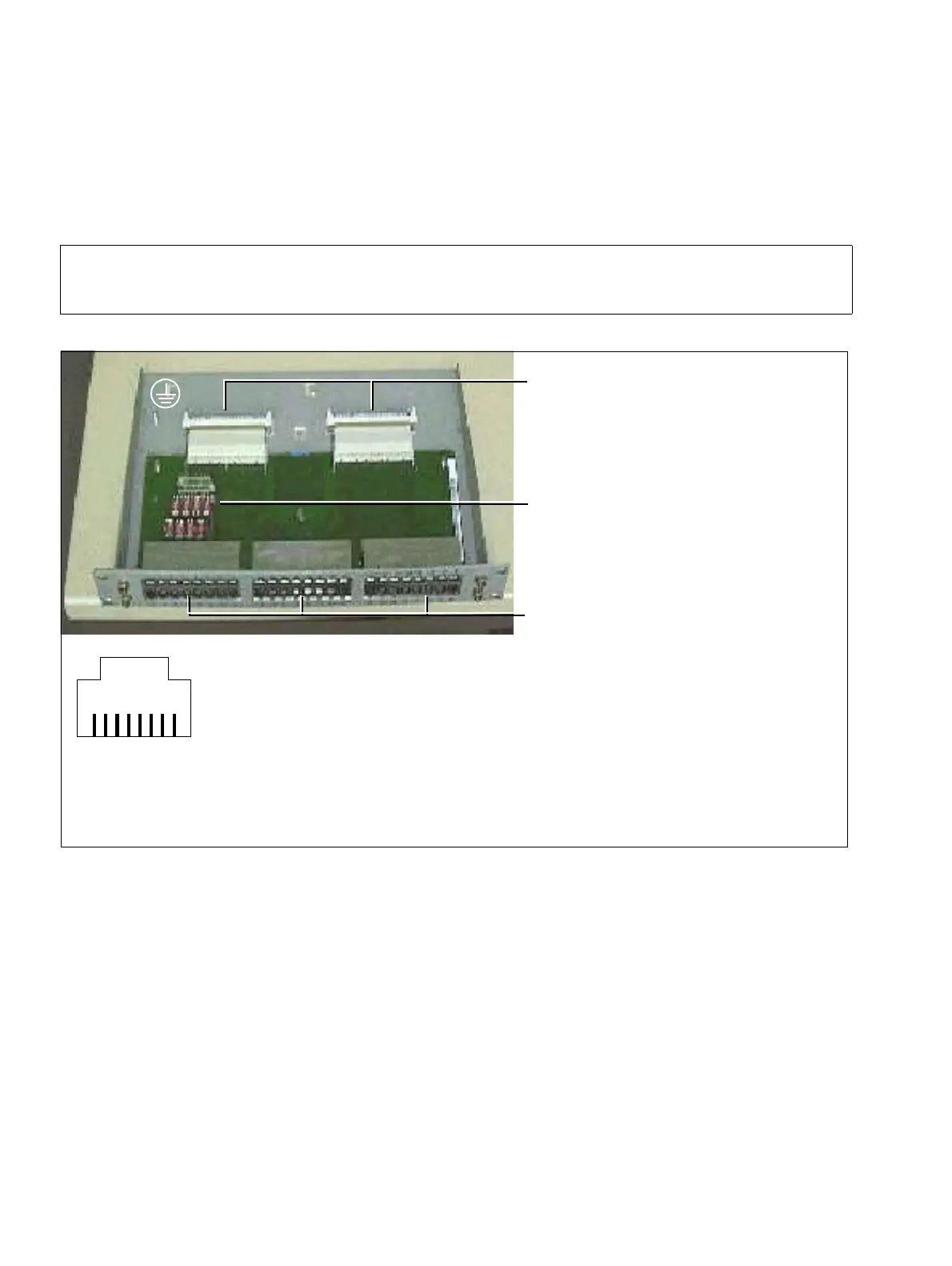

Figure 4-39 Patch Panel S30807-K6143-X
81
MW8 jack assignment:
4 = a-wire
5 = b-wire
Necessary height units for 19-inch cabinet assembly: 1
(one height unit corresponds to approx. 1.7’’=43 mm)
SIVAPAC edge connector: port for
CABLU connection to the backplane
Eight surge protector plug loca-
tions
Front panel with 3 x 16 MW8 jacks
