Siemens HiPath 3000 Service Manual

boards.fm
P31003-H3550-S403-4-7620, 02/05
HiPath 3000 V5.0, HiPath 5000 V5.0, Service Manual
3-173
Boards for HiPath 3000
Peripheral Boards
3.3.14 SLMO2, SLMO8
Introduction
The SLMO2 and SLMO8 boards (Subscriber Line Module Optiset) provide U
P0/E
interfaces for
use in HiPath 3800:
● SLMO2 (S30810-Q2168-X10) = 24 U
P0/E
interfaces
● SLMO8 (S30810-Q2168-X100) = eight U
P0/E
interfaces
Front panel

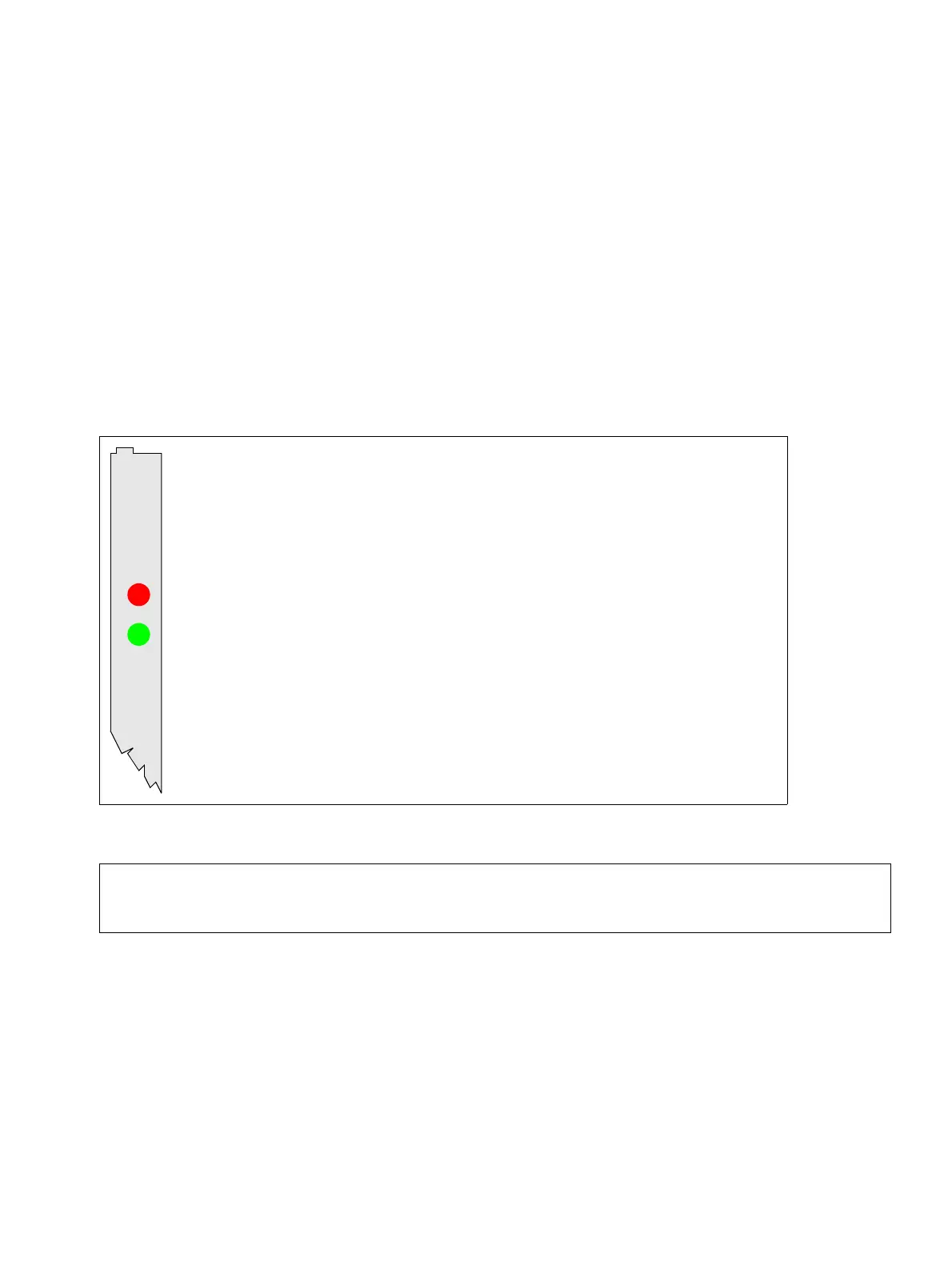

Figure 3-71 SLMO2/SLMO8 - LEDs on the Front Panel
>
To ensure sufficient shielding, provide the board with a shielding panel. For informa-
tion on mounting the shielding panel, see Section 4.2.5.2.
Two LEDs indicating the board status:
● LED (red)
● LED (green)
