Boards for HiPath 3000
P31003-H3550-S403-4-7620, 02/05
3-52 HiPath 3000 V5.0, HiPath 5000 V5.0, Service Manual
boards.fm
Central Boards
LAN connection in HiPath 3750 and HiPath 3700
Make the LAN connection using the adapter cable and a standard patch cable, which is to be
stripped and fastened to the grill on the backplane as shown in Figure 3-15.

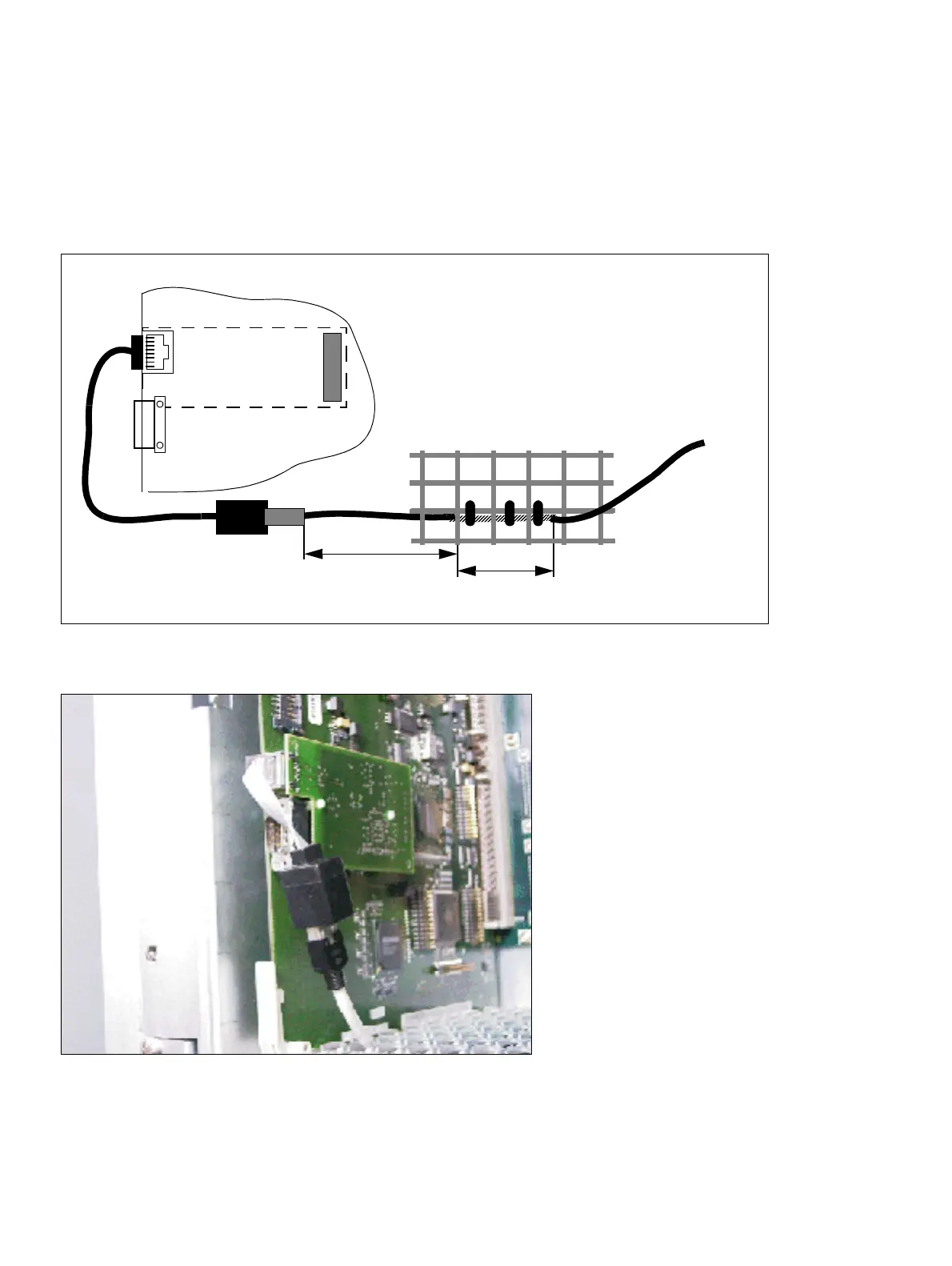

Figure 3-15 LIM in HiPath 3750 and HiPath 3700 - Procedure for LAN Connection
Figure 3-16 LIM in HiPath 3750 and HiPath 3700 - Adapter Cable (C39195-Z7213-A1)
X12
X18
LIM
Adapter cable
(C39195-Z7213-A1)
(see Figure 3-16)
approx. 300 mm
CBCPR
Standard patch cable (see Figure 3-17)
For shielding reasons, the stripped part of the ca-
ble must be fastened to the grill of the HiPath
3750/HiPath 3700 backplane with cable straps.
Stripped length
approx. 60 mm
to LAN
