boards.fm
P31003-H3550-S403-4-7620, 02/05
HiPath 3000 V5.0, HiPath 5000 V5.0, Service Manual
3-253
Boards for HiPath 3000
Peripheral Boards
3.3.28 TMAMF (for selected countries only)
Introduction
The TMAMF (Trunk Module Analog for MultiFrequency Code Signaling) board contains eight
trunks for analog direct inward dialing. The system supports MFC-R2 signaling (default setting),
MFC-R2 with caller ID, tone dialing, and dial pulsing. It is not possible to use DTMF and MFC-
R2 (with or without caller ID) simultaneously.
There are two versions of this board:
● S30810-Q2587-A200 for use in HiPath 3750 and HiPath 3700.
● S30810-Q2587-A400 for use in HiPath 3550.
Switches and LEDs

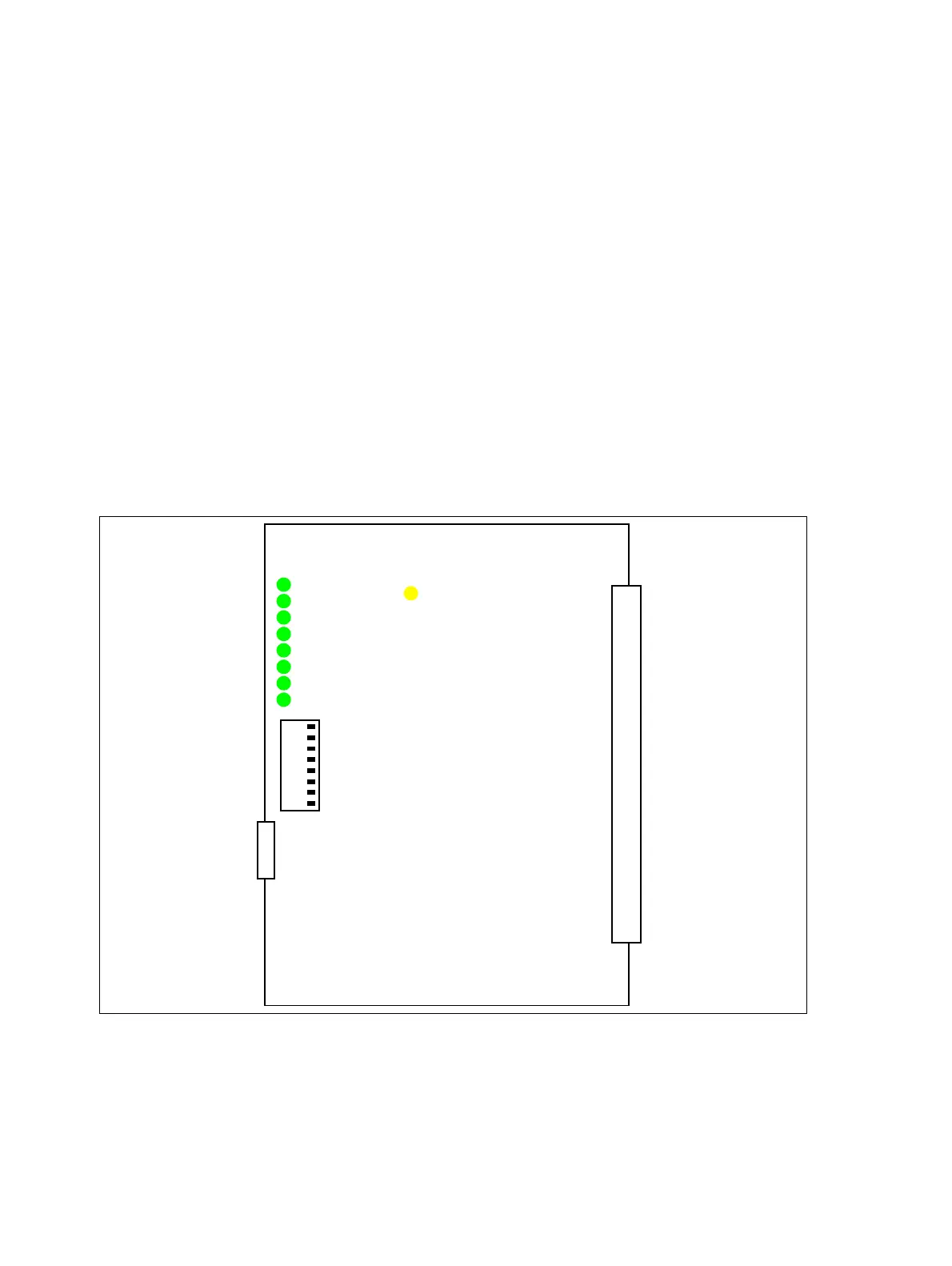

Figure 3-105 TMAMF (S30810-Q2587-Axxx)
H0 (green)
:
:
:
:
H7
Lockout switch S501
(factory default)
On
0
:
:
7
LEDs
H100 (yellow)
Subminiature D connector for
DSP diagnosis
