4.2.5.4 Installing the SIVAPAC-SIPAC Board Adapter
The peripheral board slots on the HiPath 3800 are fitted with SIPAC 9 SU connectors. The
TMEW2 and TMDID (for U.S. only) boards have SIVAPAC connector strips and as a result,
SIVAPAC-SIPAC board adapters have to be installed in order to use them in HiPath 3800.
The SIVAPAC-SIPAC board adapter consists of three individual parts (refer to Figure 4-22):
● two adapter modules
● one startup module

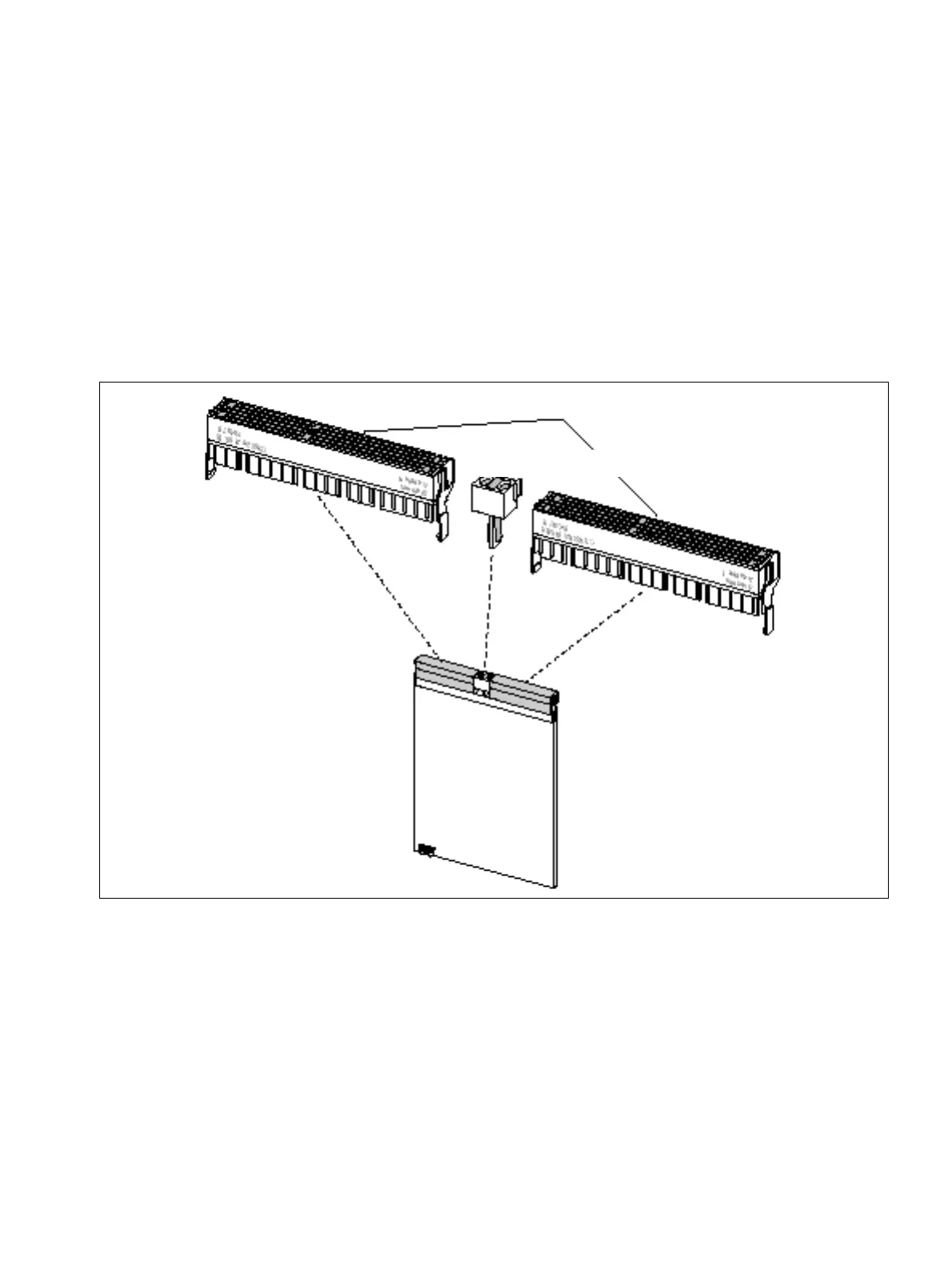

Figure 4-22 SIVAPAC-SIPAC Board Adapter
Component
side
Adapter modules
Startup module
board
