Siemens HiPath 3000 - Figure 3-84 STMD3 (S30810-Q2217-X10-X110) - Leds on the Front Panel; Stmd3

boards.fm
P31003-H3550-S403-4-7620, 02/05
HiPath 3000 V5.0, HiPath 5000 V5.0, Service Manual
3-205
Boards for HiPath 3000
Peripheral Boards
3.3.21 STMD3
Introduction
The STMD3 board (Subscriber and Trunk Module Digital S
0
) provides eight S
0
basic rate ac-
cesses for HiPath 3800 and comes in the following variants:
● S30810-Q2217-X10 = S
0
interfaces with no power supply
● S30810-Q2217-X110 = S
0
interfaces with power supply
Front panel

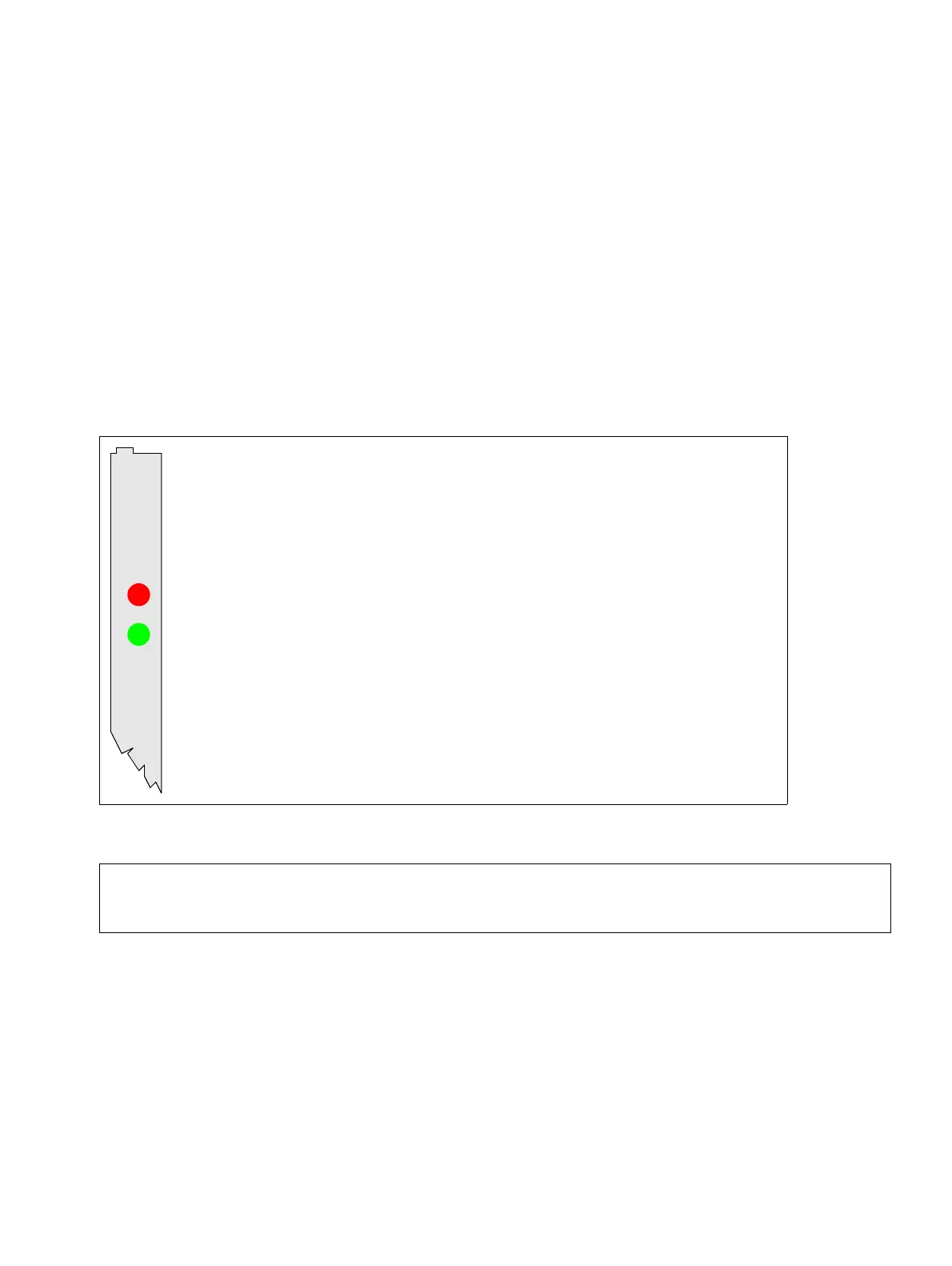

Figure 3-84 STMD3 (S30810-Q2217-X10/-X110) - LEDs on the Front Panel
>
To ensure sufficient shielding, provide the board with a shielding panel. For informa-
tion on mounting the shielding panel, see Section 4.2.5.2.
Two LEDs indicating the board status:
● LED (red)
● LED (green)
