P31003-H3550-S403-4-7620, 02/05
HiPath 3000 V5.0, HiPath 5000 V5.0, Service Manual
3-115
Boards for HiPath 3000
Peripheral Boards
Packing protection covering
You must remove the red packing protection covering (cardboard block), shown in the following
picture, before starting up the board.
If it is necessary to transport the board again at a later time, for example, for servicing, you must
reattach the packing protection covering.

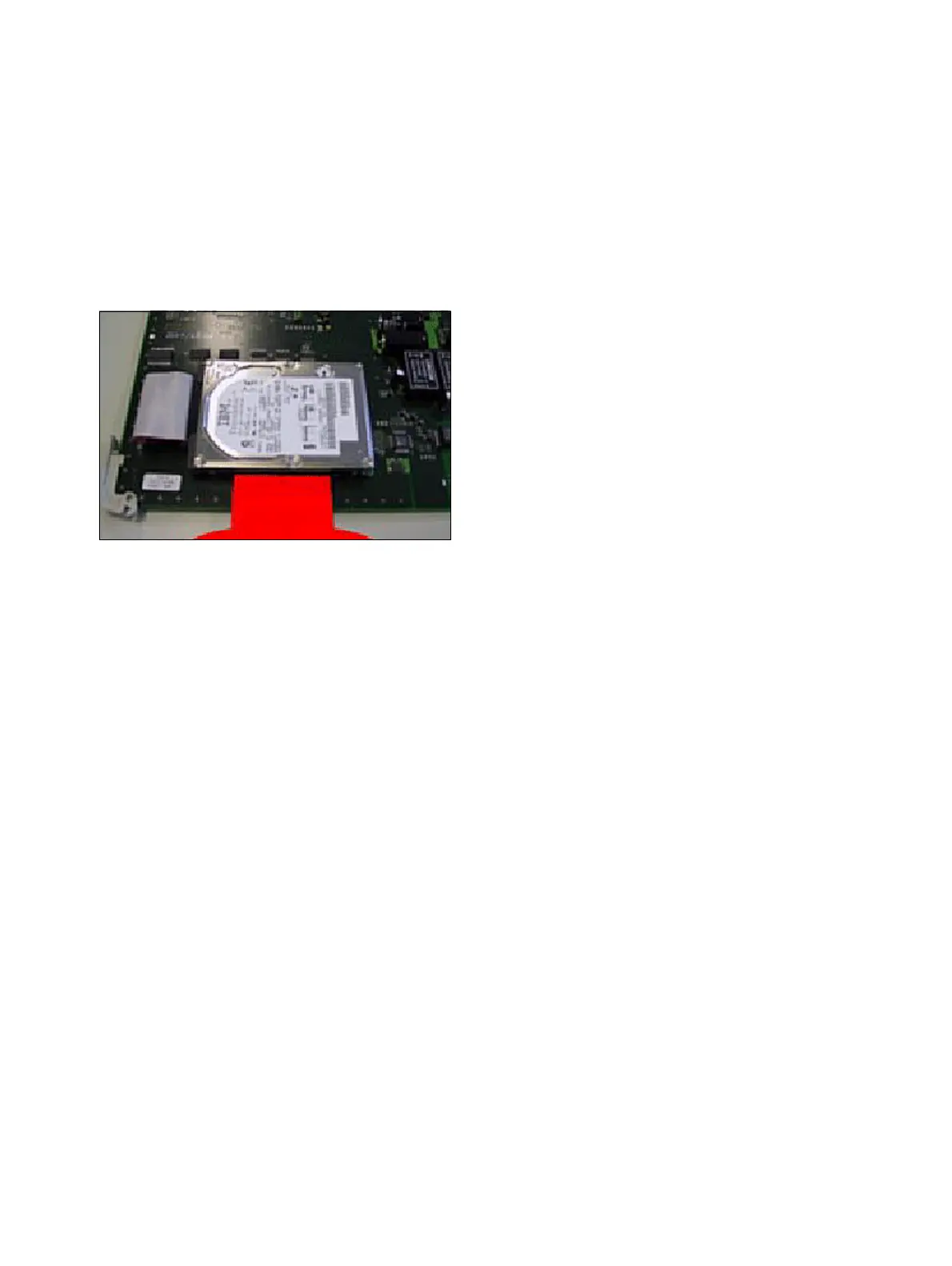

Figure 3-53 IVMNL/IVMN8 - Packing Protection Covering
