2.2.2.4 Design and Dimensions of HiPath 3350
Design
The housing intended for wall mounting (Figure 2-4)HiPath 3350 contains one shelf with
three slot levels. The slot levels (shown in Figure 4-106), numbered in ascending order
from the attachment side, have the following assignments:
● Slot level 1: peripheral boards (two slots)
● Slot level 2: CBCC control board only
● Slot level 3: Optional boards (up to 5 modules)
The power supply is on the rear panel of the subrack.
The HiPath 3350 does not need an external main distribution frame. The connection cables
to the peripherals (telephones, trunk connections etc.) are directly connected to the
boards.
Dimensions

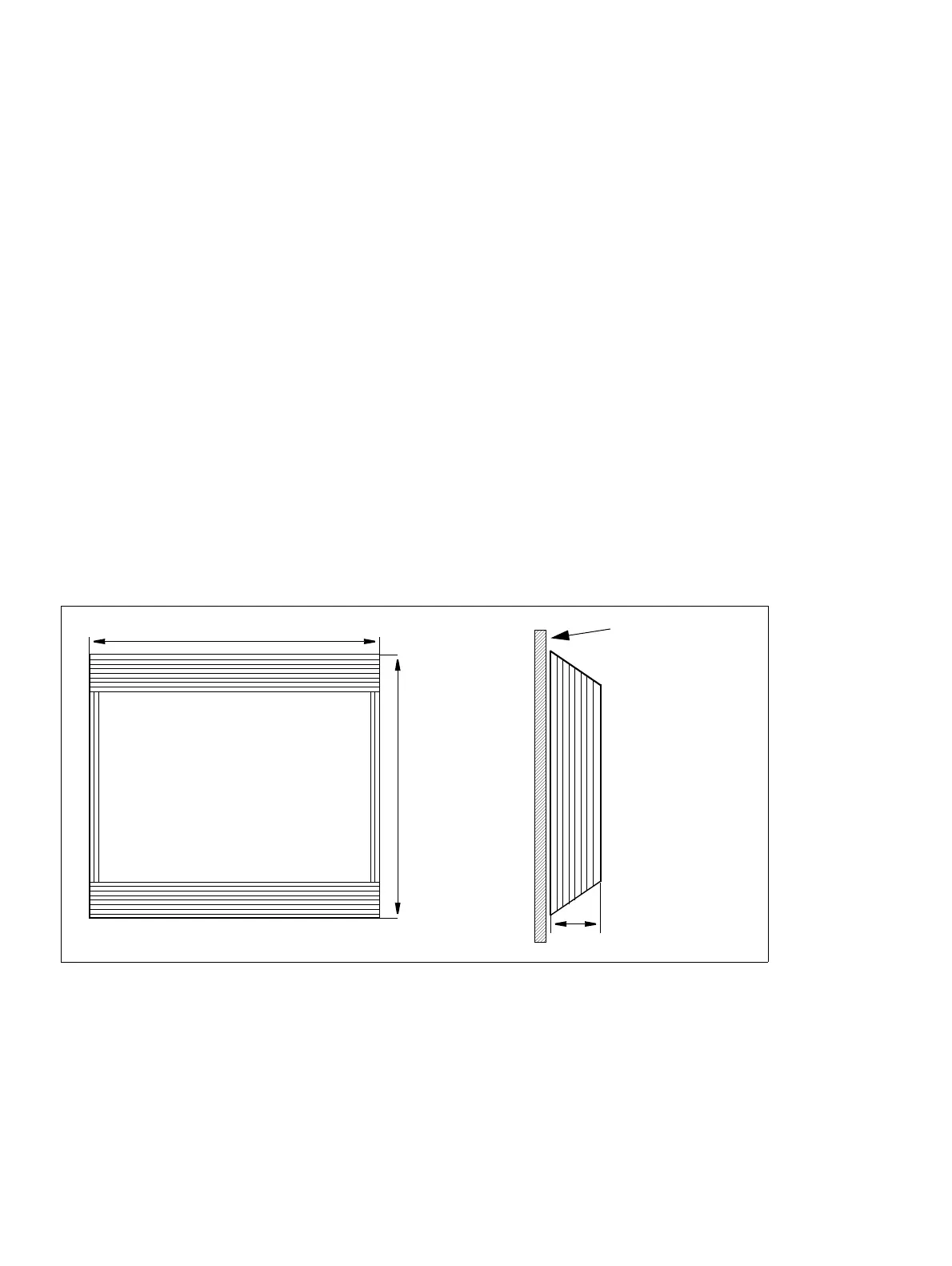

Figure 2-4 HiPath 3350 Dimensions
460 mm
128 mm
450 mm
Mounting sur-
face
