Expanding and Upgrading HiPath 3000
Expanding HiPath 3000
9.2.5.1.1 Information on Third-Party Entrance Telephones
DoorCom Analog
General information
The plus product DoorCom
®
Analog is a universal entrance telephone adapter box for Siedle
entrance telephones (such as the Vario TLM 612). It is released for use with all HiPath 3000
systems, V1.2 and later.
It is connected to an analog port in the system. DoorCom Analog behaves like an analog tele-
phone (DTMF tone dialing, detection, and control). It can be operated with DTMF signals.
DoorCom Analog can function only in combination with the following components:
● DoorCom Analog DCA 612-0
● Siedle-Vario TLM 612 entrance telephone
● Switching remote control interface DCSF 600
For the voice connection of an internal user to the entrance telephone: Without this module,
it is not possible to call back to the entrance telephone, for example, if a call was uninten-
tionally cleared down by the entrance telephone.)
● Power supply NG 602-0
Connection

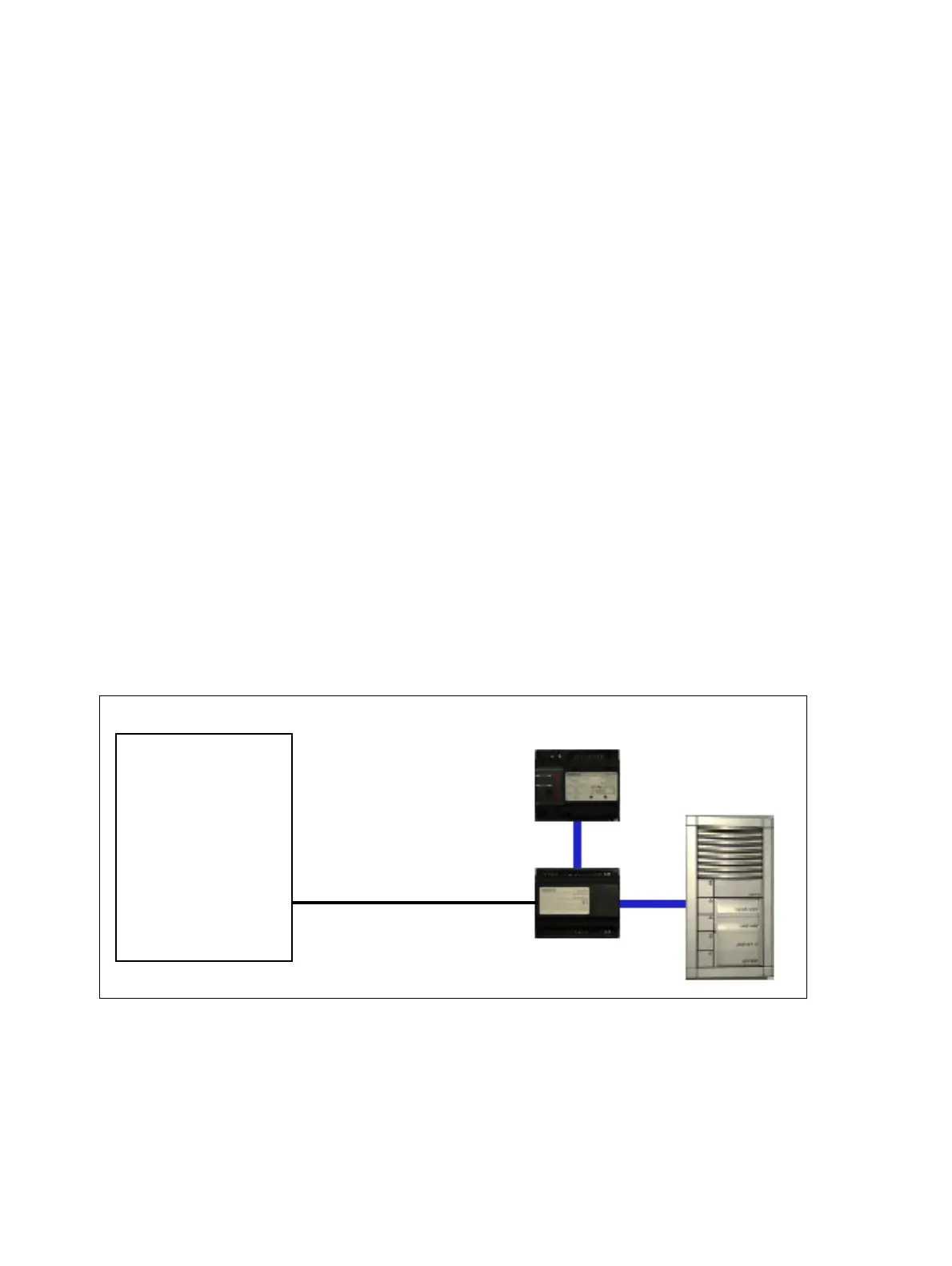

Figure 9-12 Connecting DoorCom Analog to HiPath 3000
HiPath 3000
DoorCom Analog
DCA 612-0
Power supply
NG 602-0
Siedle-Vario
TLM 612
T/R
