Siemens HiPath 3000 Service Manual

Boards for HiPath 3000
P31003-H3550-S403-4-7620, 02/05
3-304 HiPath 3000 V5.0, HiPath 5000 V5.0, Service Manual
boards.fm
Peripheral Boards
S
2M
networking
For examples of the maximum cable lengths for direct CorNet N/CorNet NQ networking, please
refer to Table 2-10.

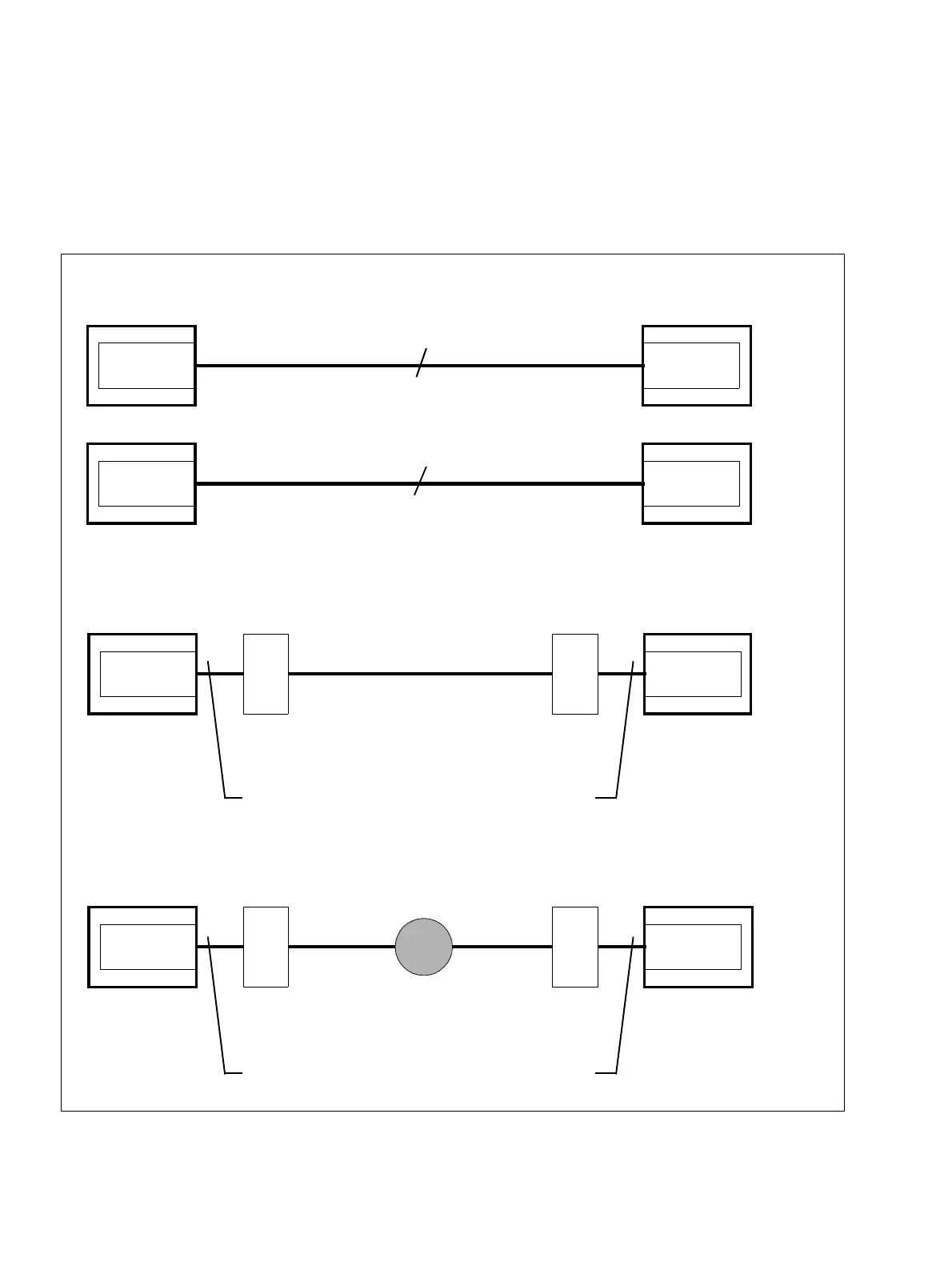

Figure 3-126 S
2M
Networking Options (Not for U.S.)
HiPath 3750, HiPath 3700
TMS2
HiPath 3000
Cable S30267-Z58-A50 (5 m) (not in Germa-
TMS2
S
2M
networking in site without NT
4
HiPath 3750, HiPath 3700
TMS2
HiPath 3000 /
HiPath 4000
TMS2
S
2M
networking in site with NT
NT NT
Fixed connection
(cabling must be approved
by NT supplier)
HiPath 3750, HiPath 3700
TMS2
HiPath 3000,
HiPath 4000
TMS2
S
2M
networking using leased lines
NT NT
Fixed connection via public
network (NT connection ac-
cording to Figure 3-124)
HiPath 3750, HiPath 3700
TMS2
HiPath 4000
S30267-Z59-A45 cable (4.5 m)
(can be extended using HiPath-4000-specific
cable)
4
Cable S30267-Z57-Axxx
6 m (not Germany), 10 m and 20 m
Cable S30267-Z57-Axxx
6 m (not Germany), 10 m and 20 m
