Boards for HiPath 3000
Peripheral Boards
3.3.13 SLMA, SLMA8
Introduction
The SLMA and SLMA8 (Subscriber Line Module Analog) boards provide analog T/R interfaces
for use in HiPath 3800:
● SLMA (S30810-Q2191-C300) = 24 analog T/R interfaces
● SLMA8 (S30810-Q2191-C100) = eight analog T/R interfaces
The boards generate their own ring voltages and do not require an external ring generator.
Front panel
>
For Australia only: The ring voltage is 35 V
eff
. Depending on the terminals connect-
ed, we cannot exclude the possibility of errors occurring during ringing state.

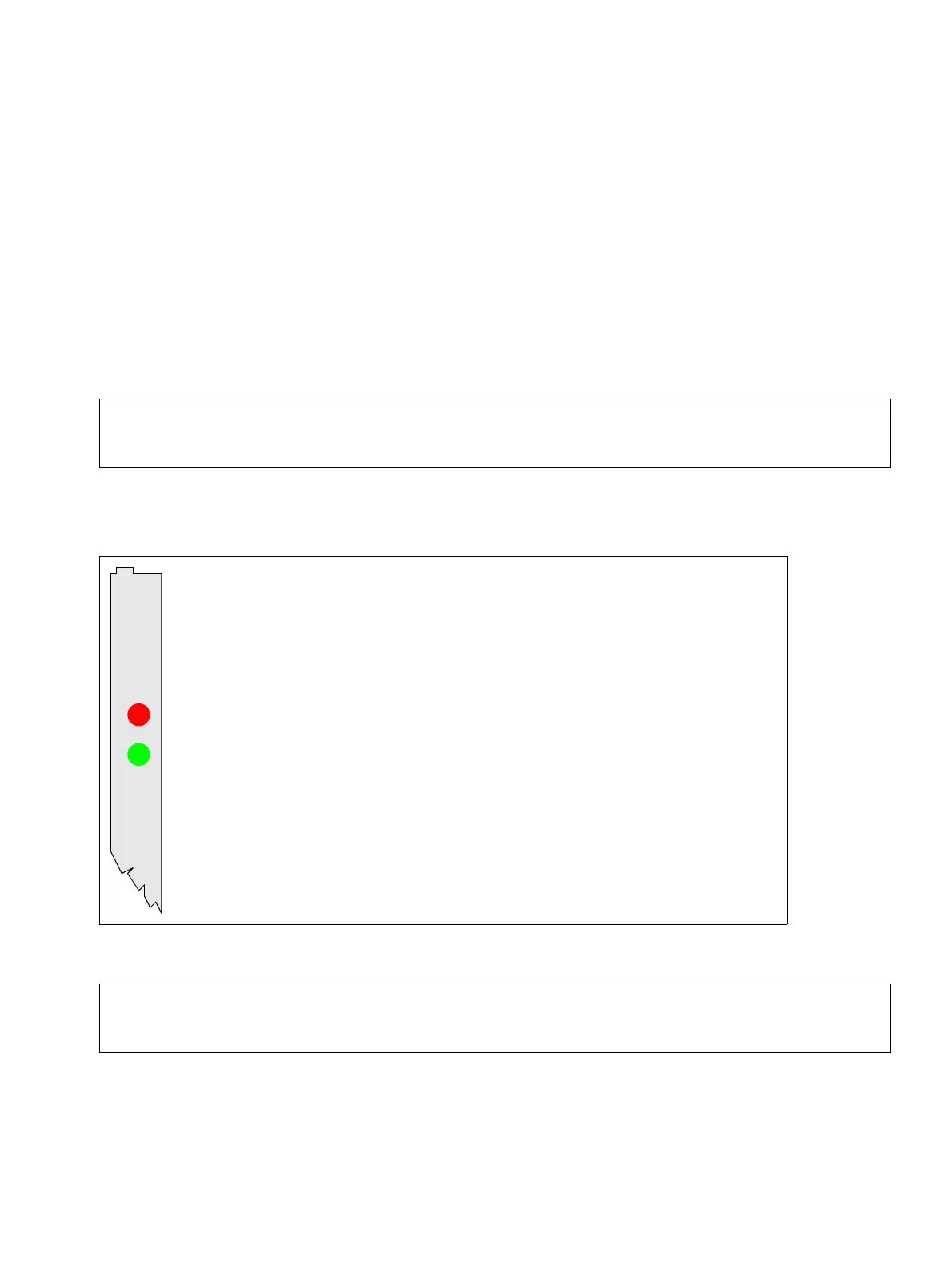

Figure 3-70 SLMA/SLMA8 - LEDs on the Front Panel
>
To ensure sufficient shielding, provide the board with a shielding panel. For informa-
tion on mounting the shielding panel, see Section 4.2.5.2.
Two LEDs indicating the board status:
● LED (red)
● LED (green)
