Installing HiPath 3000
Installing HiPath 3800
4.2.6.6 For U.S. only: Connecting Peripherals to the Connector Panels with CHAMP
Jack
The boards should be installed in the cabinets as described in Section 4.2.5. The S30807-
Q6626-X connector panels attached to the SIVAPAC connectors on the backplane are
equipped with a CHAMP jack.
Connect the peripheral directly to the CHAMP jack in the connector panels.
Information on cable and connector assignment is provided in the board descriptions in
Chapter 3.

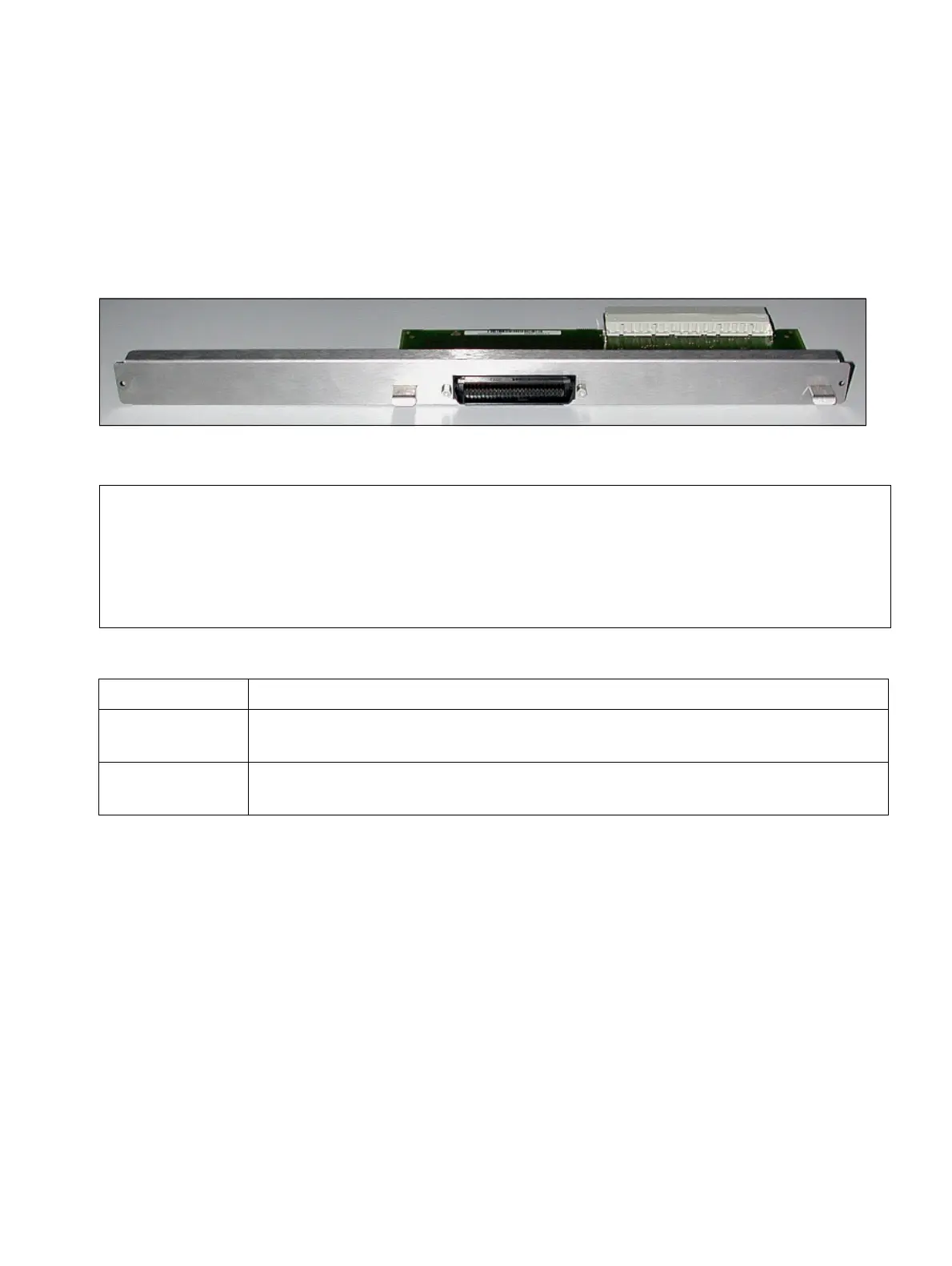

Figure 4-34 HiPath 3800 - Connector Panel with CHAMP Jack (for U.S. only)
7
Danger
Be sure to connect the main protective earthing terminal on all system cabinets to
the grounding point of the electrical building installation before connecting up the pe-
ripherals (for example, potential equalization bus).
The system may only be started (connected to the power supply) if all system cabi-
nets are sealed at the rear with the connection and filler panels provided.
If Then
Slot with periph-
eral card
A cable with CHAP jack should be used to connect to a main distributor
frame or external patch panel.
No assignment The backplane sections with empty board slots must be covered with filler
panels.
