IP Telephony (Voice over IP)
10.6.1.4 optiPoint 410 and optiPoint 420 Add-On Devices
The user usually installs the add-on devices. The installation instructions are on the “Electronic
Operating Instructions” CD.
10.6.1.4.1 optiPoint SLK Module
The optiPoint SLK module is an add-on device that should be mounted on the side of the tele-
phone; it provides an additional 13 keys, LEDs, and displays for all purposes. SLK (self-labeling
key) means that each key is assigned a display (1 line with 12 characters) in which the function
or call number currently saved is shown.
Double assignment can be performed for the keys if only call numbers without LED support are
saved on the first level. It is also possible to program call numbers without LED support on the
second level. These can be internal station numbers, DID call numbers and call numbers from
a HiPath network.
7
Caution
Always disconnect the line cord before connecting add-on devices to the telephone.
>
A maximum of two add-on devices may be installed on an optiPoint 410 or optiPoint
420 telephone (not optiPoint 410 entry, optiPoint 410 economy optiPoint 420 econo-
my and optiPoint 420 economy plus).
optiPoint Key Module and optiPoint BLF can be used in addition to the two add-on
devices described below. Table 10-6 shows the possible add-on device configura-
tions.

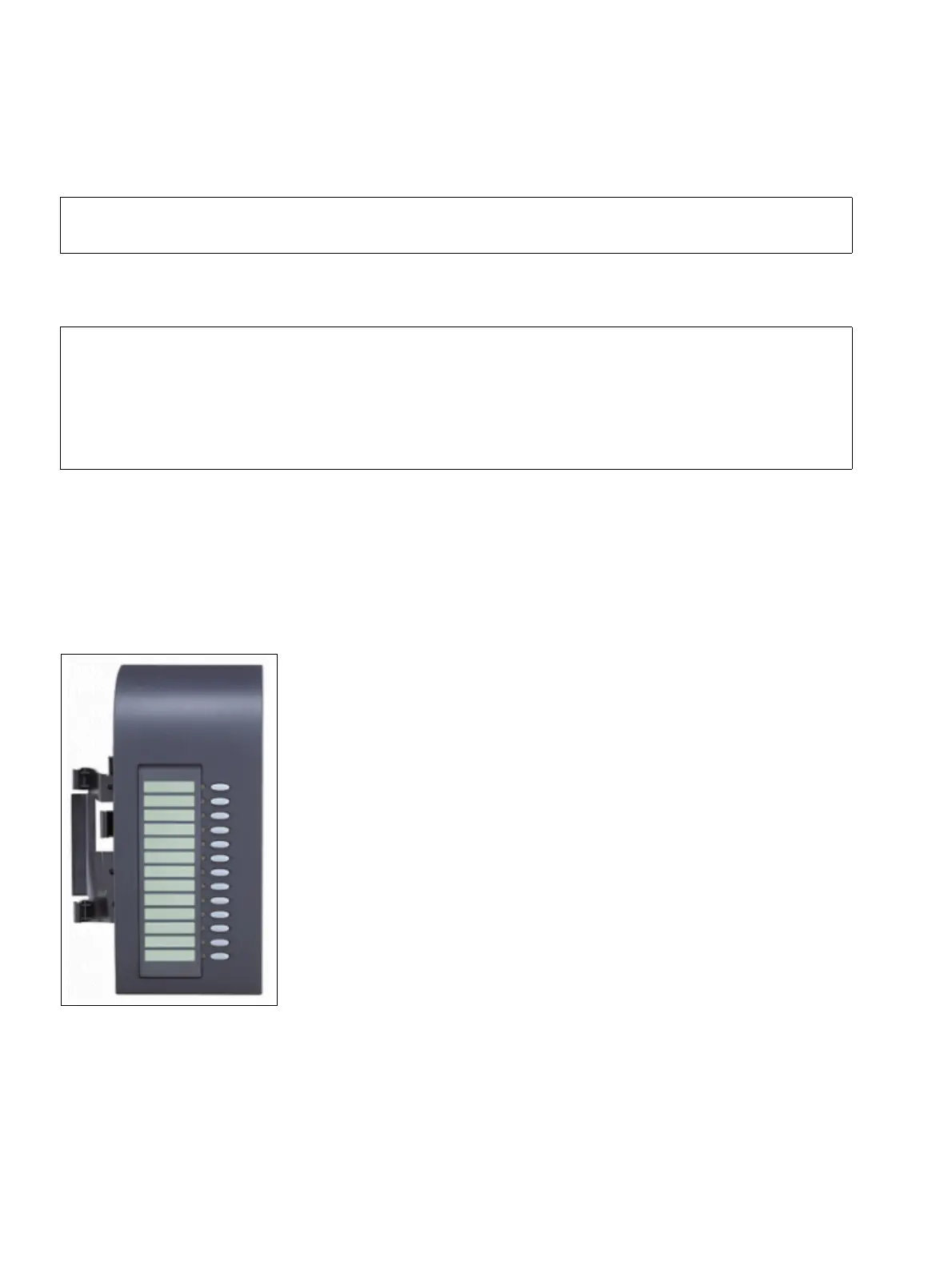

Figure 10-29 optiPoint SLK Module
