Boards for HiPath 3000
P31003-H3550-S403-4-7620, 02/05
3-60 HiPath 3000 V5.0, HiPath 5000 V5.0, Service Manual
boards.fm
Central Boards
Slots
Push the LUNA2 power supply unit into the slots provided in the lower part of the system cab-
inet shelf until you hear a click (see Figure 4-18).
The power supply unit slots must be covered with the outer panel shown in Figure 3-20 (basic
cabinet) and in Figure 3-21 (expansion cabinet) before the system is started up.

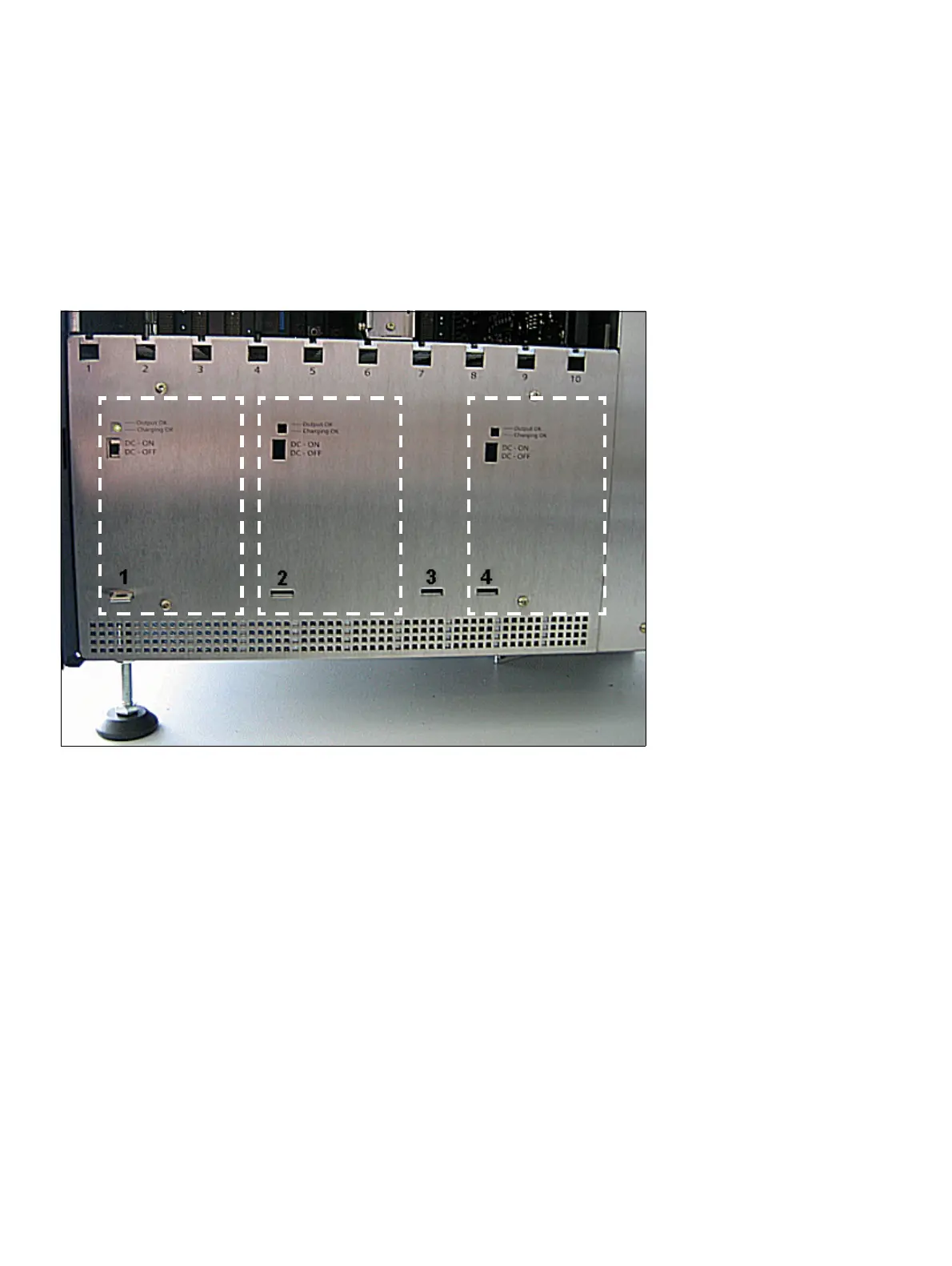

Figure 3-20 LUNA2 Slots in the Basic Cabinet (With Outer Panel Mounted)
