Siemens HiPath 3000 Service Manual

inst_h3.fm
P31003-H3550-S403-4-7620, 02/05
HiPath 3000 V5.0, HiPath 5000 V5.0, Service Manual
4-71
Installing HiPath 3000
Installing HiPath 3800
4.2.7.2.1 Installing the Patch Panel in a 19-Inch Cabinet
Installation procedure
Insert the patch panel (A, in Figure 4-40) above the system cabinet and secure it to the 19-inch
frame on both the left and the right using two screws on each side.
7
Caution
The patch panel must be installed above the system cabinet.
A minimum of one height unit must be kept clear above the cabinet to guarantee suf-
ficient ventilation of the system cabinet. This is achieved by the gray plastic cover
fixed to the top of the system cabinets. Never remove this plastic cover.

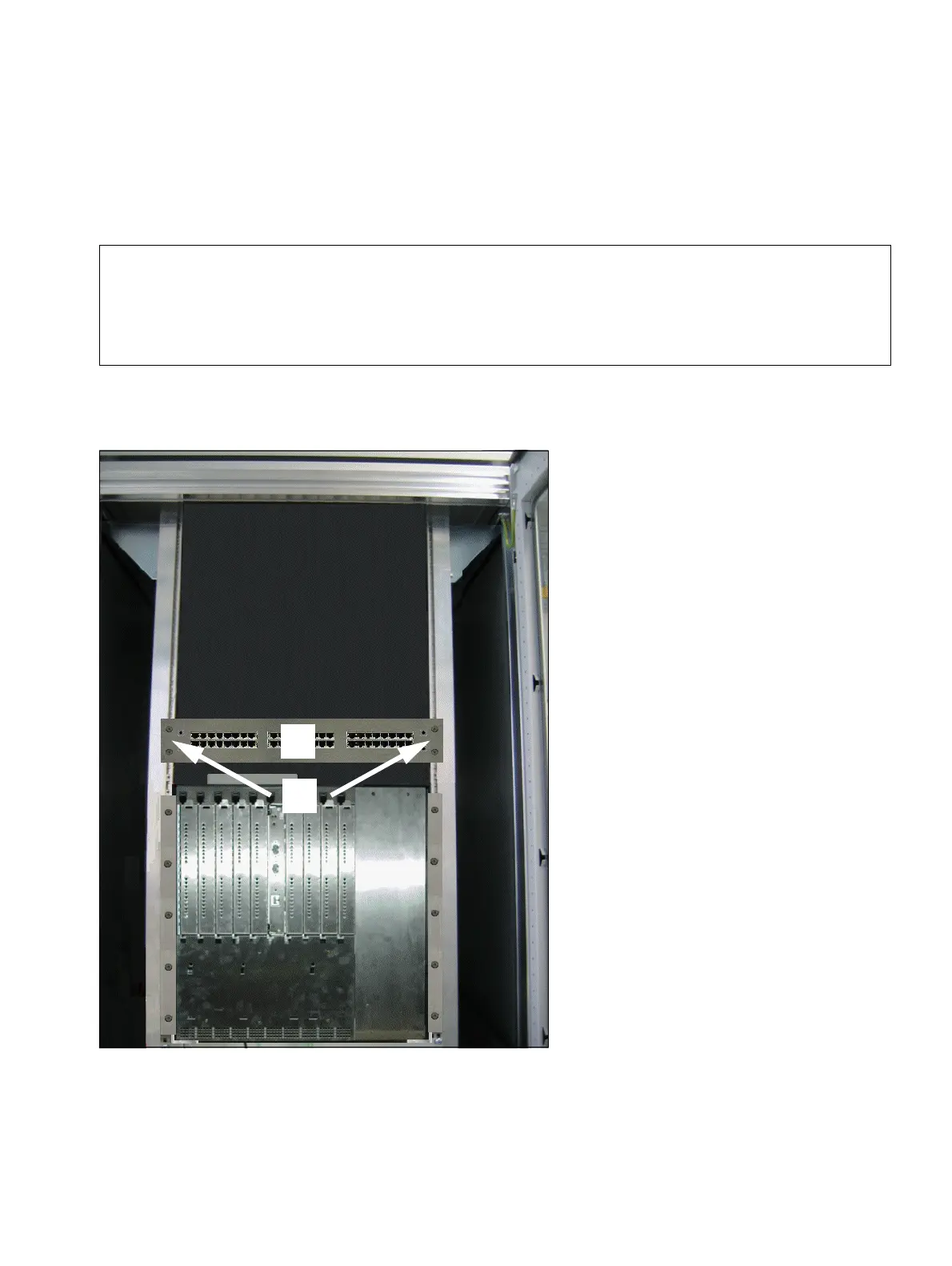

Figure 4-40 Installing the External Patch Panel in the 19-Inch Cabinet
A
B
