inst_h3.fm
P31003-H3550-S403-4-7620, 02/05
HiPath 3000 V5.0, HiPath 5000 V5.0, Service Manual
4-53
Installing HiPath 3000
Installing HiPath 3800
4.2.6.2 Expansion Cabinet Backplane

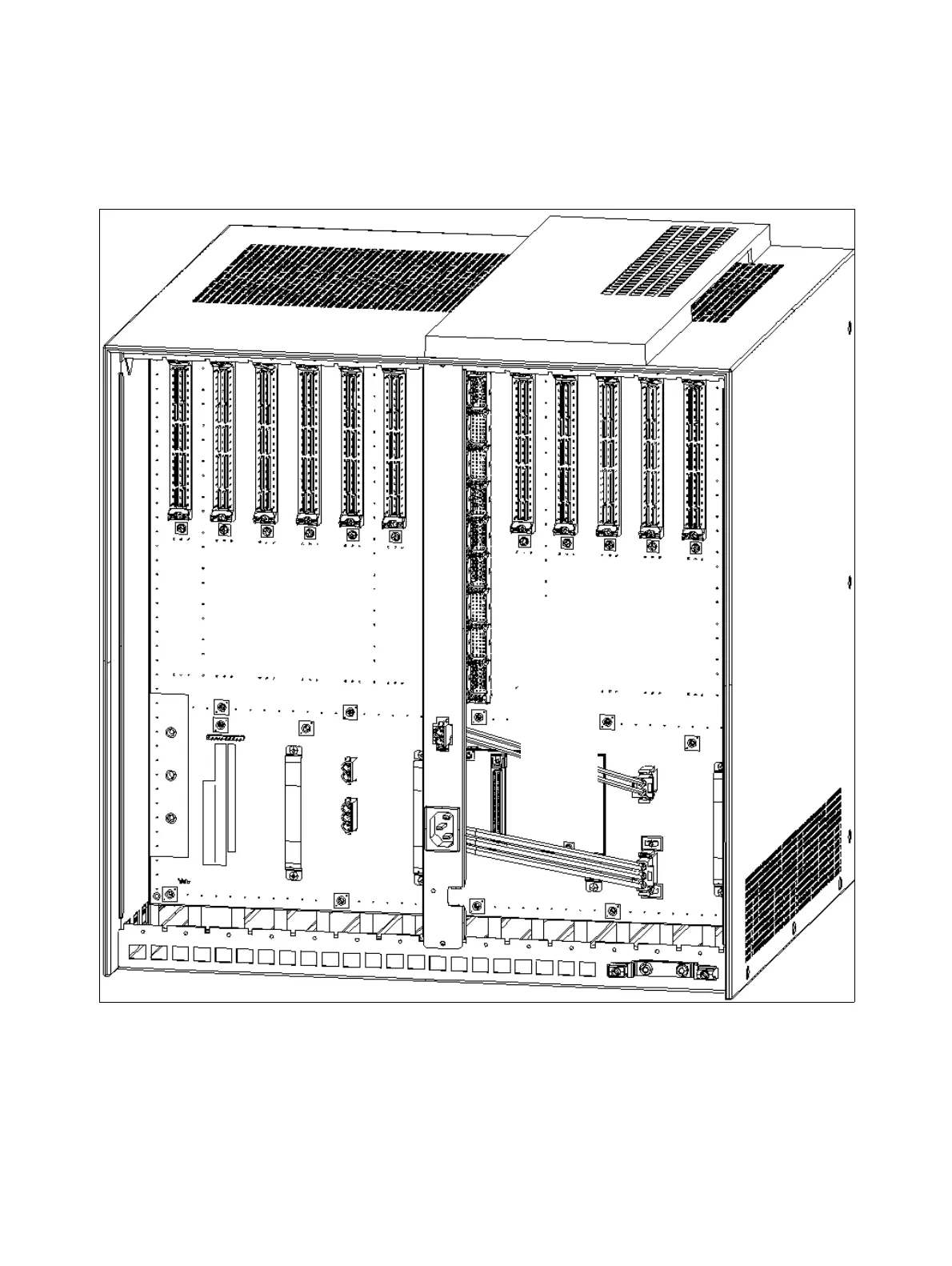

Figure 4-30 HiPath 3800 - Expansion Cabinet Backplane (S30804-Q5393-X)
13 SIVAPAC connectors
for peripheral boards
DBSAP with 68-pin
DB68 mini-jack (connec-
tion to BC)
DC port
AC port
